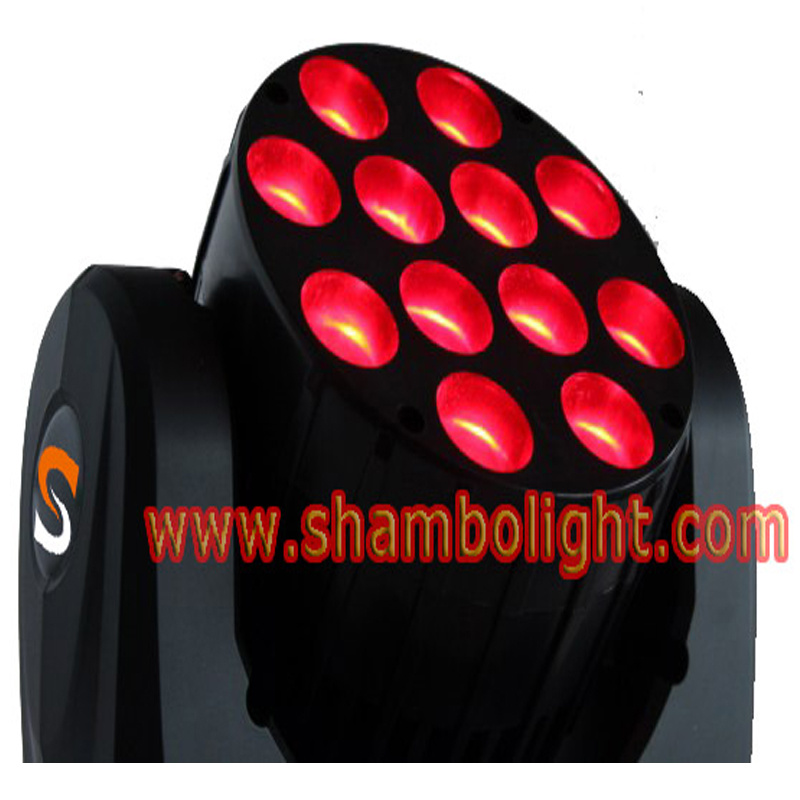

Entertainment stage lights 12PCS 10W CREE LED moving head beam,
12PCS LED moving head beam (CREE LED),
12PCS 10W DMX lighting LED moving head beam
A, Product Features
1) 50, 000 hours LED lifespan, low power consumption
2) LED Overheating protection function
3) High Efficiency 8 degree optical system
4) RGBW infinite color mixing possibility
5) When full output power is 7M, the lumens will be 684
6) 0-100% liner adjustment, not blinking
7) 18 times/second high speed strobe effect
8) Random strobe and pulse strobe function
9) 15 international standard DMX channels
10) Built-in work auto programs with macro function
11) DMX512 signal, Master/Slave, sound active. Work auto
12) HD TFT display
13) Scanning high speed, smooth, quiet
14) High efficiency and low noise fan cooling system
B, Specification
1) Input voltage: AC90-260V 50/60Hz
2) QTY: 10W*12PCS 4 in 1 LEDs
3) Control signal: DMX 512, Master/Slave, work auto and sound active
4) DMX Channel: 15CH
5) consumption: 140W
6) 540 degree Pan scanning; 270 degree Tilt scanning
7) Scan position has memory and automatic reset function
8) IEC plug input
9) 45 degree maximum working environment
10) IP20 waterproof rate
11)3-Pin signal connector, power in/power out
12) Product Size: 152(D)*265(W)*304(H)mm
13) Packing Size: 260(D)*320(W)*335(H)mm
14) Net weight: 4.9KG
15) Gross Weight: 7KG
|
Channel list |
Instruction |
|
CH1 |
Dimmer |
|
CH2 |
Red |
|
CH3 |
Green |
|
CH4 |
Blue |
|
CH5 |
White |
|
CH6 |
Color mixing |
|
CH7 |
Pan |
|
CH8 |
Tilt |
|
CH9 |
Pan fine |
|
CH10 |
Tilt fine |
|
CH11 |
Speed of X/Y |
|
CH12 |
Strobe |
|
CH13 |
Color changing |
|
CH14 |
Speed of color changing |
|
CH15 |
Setup ID |
