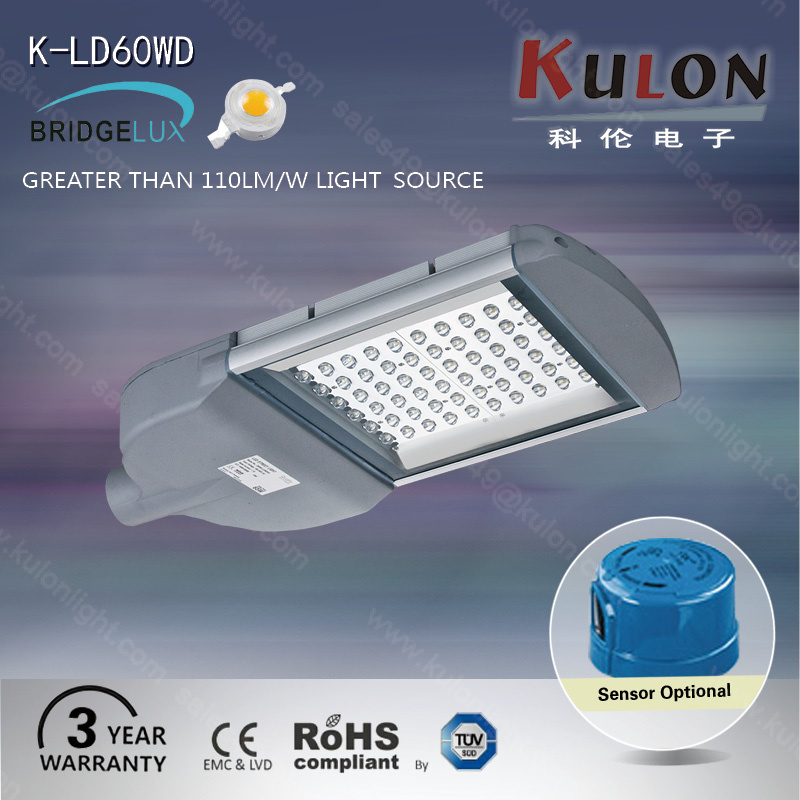

BridgeLux LED Chip and Weanwell LED Driver
Professional encapsulation with BridgeLux LED chip makes the LED light source obtaining excellent protection of optical attenuation and heat conduction ratio
World's leading MeanWell power supply keeps the stableness, life & performance of the luminaire in optimal status.
Optimal Heat Conduction & Dissipation Performance
Light attenuation of LEDs under safe control with adequate heat sinking area and excellent air flow design.
Use of the good thermal grease combining MCPCB and aluminium radiator closely, keeps every LEDs obtaining optimal effects of heat dissipation.
Superior Opticial Design
Designed the rectangular light beam from each exquisite lens, effectively control the horizontal and vertical beam angle evenly focusing to the streets. Mirror surface processed reflector could collect the invalid light and reflect them into effective.
Product Benefits:
1. LED's maintain flux is up to 110 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Wide input: 100 - 240V AC
6. Simple installation
7. No UV
8. Superior light quality
9. Mercury free
10.Superior Vision-Care
11. Lead Free
12.Temperature compensation technology for long life
13.Resistant to shock and vibration
Specification:
| Model Name | K-LD60WD |
| LED Power | 30W |
| Lamp's Power | 65W |
| Operating Voltage | 100-240V AC,50/60Hz, 12/24VDC |
| Maximum Current | 0.76A - ac 3.01A - 24Vdc |
| Optimal Operating Temp | -40 ºC to +50 ºC |
| Operating Humidity | 10% to 90% |
| Power Fact(PF) | > 0.95 |
| Power Supply Efficiency | > 90% |
| LED Luminous Flux | 7200 lm in Initial
6600 lm in Maintain |
| LED Luminous Efficiency | Up to 110 lm/w |
| CRI | Ra >= 75 |
| CCT | 3000-4500K,5000-6500K |
| IP Rating | IP65 |
| Guarantee | 3 years |
| Lifetime | 50000 hours |
| Housing | Die-casting Aluminum |
| Heat Radiator | Anodized Aluminum |
| Face | Toughened Glass |
| Fixture Dimensions | 624x326x109mm(24.6x12.8x4.3 inches) |
| Fixture Weight | 8.5 kg /18.7 lbs |
| Aperture Diameter | 60 mm /2.4 inches |
| Packing Type | Carton packaging;1unit /ctn |
| Packing Weight | 9.5 kg /20.9 lbs |
Application:
D series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high brightness general illumination during the night time.
Our service:
Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority,
hope to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.
Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Company Information:
Founded in 2005, Hangzhou Kulon Electronics Co., Ltd is a hitech and private enterprise devoted to R&D, producing and selling of high power LED outdoor / indoor lights, solar LED lighting systerm and more energy saving products and so on.
Adhering to the management concept of "honest cooperation, pragmatic innovation", we regard clients' satisfaction as our top task,
product quality as the basis of development, and cost-saving as our competitive advantage.
Kulon provides free repair or replacement within warranty period. KULON shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.
(Professional Warranty file with stamp and signature will be sent to you if necessary).
FQA:
How to choose a right light for project?
1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)
How to achieve intelligent dimming function ?
Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.
How to achieve motion sense function?
We could build in a smart motion sensor to ahieve this function such as:
When used in combination with 1 10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective.
