| Price: | US $ 168-187/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Features & Advantages:
1. PHILIPS LUXEON T luminous source, up to 135LM/W.
2. High Reliable MEANWELL HLG driver,(1-10VDC, Resistance, PWM or time dimming function available)
3. KULON 3rd GENERATION LED MODULE: Exquisite design with powerful thermal performance, as well as high reliable waterproof
4. Over then 100,000 hours operation life with 5 Years Warranty.
5. Available for 60°, 90° and 110° beam angle.
6. K10&IP66 (testing reports available)
7. 10KV surge protection or motion sensor available.
8. Adjustable mounting bracket or suspension wire mounted hang installation method available
9. UL, DLC, RoHS, CE, GS, CB certificated is pending.
10. IES file or Dialux simulation for lighting solution is available.

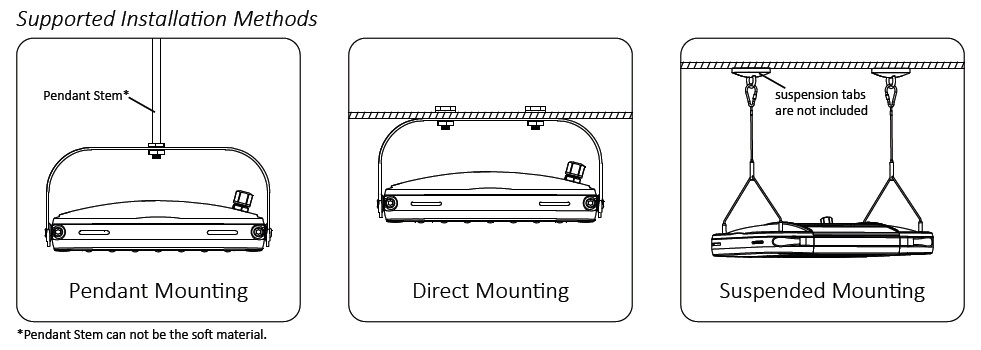

Installation Methods:
1. Bracket Pendant mounting or direct mounting available(please reference following picture)
2. New designed suspended steel wire mounting. (principal line is 4mtr adjustable)
Specifications:
| Model No | K-GKD120WH |
| Nominal Wattage | 120w |
| Nominal Voltage: | AC 100-240V /277V, 50/60Hz |
| Maximum Current | AC 12.3A -120V, 0.62A -240V, 0.53A -277V DC |
| Driver Efficiency | > 90% |
| Power Factor (PF) | > 0.95 |
| Operating Temperature | -40 ºC to +50 ºC |
| Lumen Output | 13200 lm (+/- 5%) |
| Photometric Type | 60º | 90º | 110º |
| CRI | > 70 CRI |
| CCT | 3000k 4000k 5000k 5700k |
| Ratings | IP66, IK10 |
| Lumen Maintenance | > 60,000 hours -L(9K), @25 ºC (77 ºF) |
| Heat Radiator | Anodized Aluminum |
| Lens | PC |
Packing details:
Special protective exporting led high bay light carton, wooden pallet free for delivery by sea. 1Piece per carton.

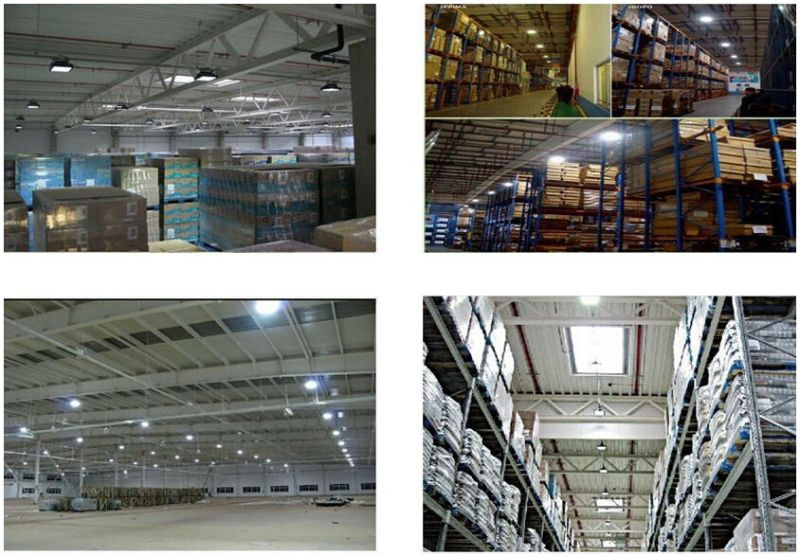

Application:
KULON-H series high bay fixtures were designed specifically to replace conventional lighting in a wide variety of indoor industrial applications;
Their low profile light weight design and versatile mounting options make it ideal for many applications such as:
warehouse, garage, aisle, cold storage, bridge, tunnel and general area lighting
Our services:
Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority, could to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration. Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.
Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and
workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Kulon provides free repair or replacement within warranty period. KU LO N shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.
(Professional Warranty file with stamp and signature will be sent to you if necessary)
FAQ:
How to choose a right light for project?
1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)
How to achieve intelligent dimming function ?
Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.
How to achieve motion sense function?
We could build in a smart motion sensor in driver box to ahieve this function such as:
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to install and cost-effective.
| Prod Model: | K-GKD120WH |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drive Brand: | Mean Well Hlg (850mA Constant Current) |
| Total Harmonic Distortion (Thd): | <20% |
| Lumen Output (+/- 5%): | 13200 Lm |
| CRI: | >75ra |
| Heat Radiator: | Anodized 6063 Aluminum |
| Lens: | PC (UV Resistance) |
| PF: | >0.95 |
| Operating Temperature: | -40 Oc to +50 Oc |
| Fixture Dimension: | 439*340*156mm |
| Fixture Weight: | 5.2kg / 11.5lbs |
| Lamp Body Material: | Aluminum Alloy |
| IP Rating: | IP66 |
| Certification: | VDE |
| Color Temperature: | 3000k, 4000k, 5000k or 5700k |
| Lifespan: | ≥60000hrs |
| Beam Angle: | 60, 90 or 110 ° |
| LED Chips: | Philips Luxeon T |
