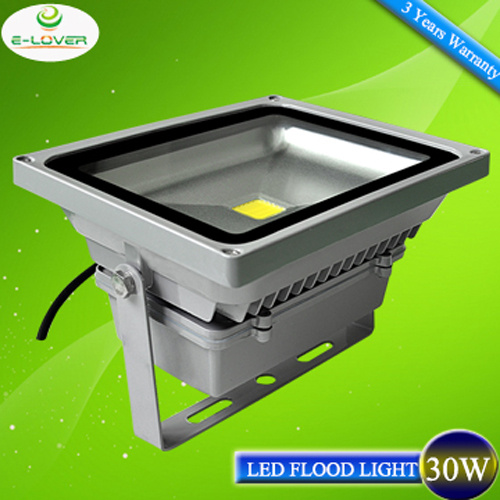

CE&RoHS 30W Bridgelux Meanwell led flood light outdoor
1. Features of flood lights
1)Material of the Printed Circuit Board is aluminum, which with good effect of heat conduction and heat emission.
2)Low power consumption, long life span, reliable.
3)Available with built-in control system or professional controller, which could achieve varied changing effect.
4)Changing effect could be chasing, water-flow, etc.
5)Environment friendly, without thermal radition, without harm to eye or skin, and it is the real energy saving lighting.
2.Main parameters of flood lights
| Product | 30w floodlight |
| Input Voltage | AC85-265V |
| Total Harmonic Distrotion | ≤0.90% |
| Power Factor | >0.96 |
| 5Power Efficiency | >81% |
| LED Working Voltage | DC30-36V |
| LED Quantity | 1pc |
| LED Consumption | 28 |
| System Consumption | 2 |
| LED Luminous Efficiency | 90Lm/W |
| Lumious Flux (lm) | warm white | 89 |
| pure white | 91 |
| cool white | 92 |
| Total Lamp's Efficiency | >85% |
Average Illuminance (Lux) |
Height: 4 metre | 26.5 |
| Height: 6metres | 15.5 |
| Height: 8metres | 10.5 |
Illuminance Area (metre) |
Height: 4 metre | 9.6x9.6 m |
| Height:6 metres | 12.6x12.6 m |
| Height: 8 metres | 18.6X18.6 m |
Color Temperature (Kelvin) |
warm white | 2600-2800K,2800-3000K, 3000-3200K, 3200-3500K |
| pure white | 3900-4200K, 4200-5000K, 5000-5700K |
| cool white | 5700-6300K, 6300-7000K, 7000-8000K |
| Junction Temperature | ≤84°C |
| Working Temperature | -40°C - +55°C |
| Stroage Temperature | -25°C - +65°C |
| IP degree | IP65 |
| Working Life-span (hours) | 50000 Hours |
| Power Line | 0.7 m |
| Certifications | CE&RoHs |
3.Packing Deatails
| Product | Pcs/carton | Carton size | G.W |
| EL-FL1EN10W | 36 | 518*320*330mm | 22.kg |
| EL-FL1EN20W | 16 | 405*346*490mm | 18.36kg |
| EL-FL1EN30W | 12 | 490*405*440mm | 22.7kg |
| EL-FL1EN50W | 6 | 510*315*495mm | 19kg |
| EL-FL1EN70W | 3 | 425*410*330mm | 13kg |
| EL-FL1EN80W | 3 | 425*410*330mm | 14kg |
| EL-FL1EN100W | 3 | 425*410*330mm | 15kg |
| EL-FL1EN120W | 2 | 490*360*550mm | 20.3kg |
| EL-FL1EN150W | 2 | 490*360*550mm | 20.5kg |
4.Trade terms
Payment Terms:
1)Samples: Bank TT, 100% payment in advance;
2) Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1) Samples: 3-7 working days;
2) Bulk order: 7-15 working days.
Warranty:
3 years warranty
Shipping Method:
1) By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2) By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3) By Sea: the most economic shipping method, but cost longer shipping time; large quantity,
heavy and not urgent goods can choose this way.
4) Your shipping agent or forwarder.
After-sale Service:
1) Quick reply on customers'questions;
2)If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3) Make you a happy ordering.
Shenzhen E-Lover Technology Co., Ltd. is an innovative company involved in R&D, manufacturing and sales of solid state lighting (ssl). Through our powerful research and development team, independent design and affluent of venture investment to focus on an endeavor; To develop and promote LED lighting to transcend from our laboratory to every corner of the world, changing the perception of how humanity employs LED technology.
We mainly produce LED tube, panel, LED spotlight, LED downlight, LED ceiling light, also with LED flood light and high bay light, elover technology company possesses an inventive and talented team. O-ur staffs comprise of researchers from prestigious companies like CREE. With high management from the United States and Australia all unified to accomplish our goal. Couple with our state of the art research and testing facility, our dust free laboratory, stringent inspection routine, and compas-sionate sales team; Elover strives to create a de-facto standard in the solid state lighting industry.
"be inventive and excel! " elover believes in continuous research and relentless improvement of I-ndividual and our products to bring advancements in solid state lighting. We abide by this belief in creating a transcendent future in LED lighting together with global co-operative partners. The elover brand represents our belief in quality, creativity, social responsibility, and endeavor for betterment of what LED lighting can realize for humanity
