CE 12pcs 25w RGBAW dmx led wall washer light bar for stageAdvantages:1.12 pixels 25W Full RGBAW
2.360W 11926 Lumens output
3.Install on the floor, seamless contiguity hang
4.Dim 4 Square law dimming no visible shock at low DMX Value
Features: 1.High quality LED light source, 25W COB RGBAW
2.Precise Lens curve,better color mixing,SDC<0.005.
3.11926Lumens Output,hight effieciency light output 90% Lumens within 10% Intensity field angle.
4.With Function ID and adress ID, for 1 controller to run more lights
5.32 Bit MCU,Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
6.Display auto turn off when no operation and Auto show DMX signal come or not
7.Independent circuit driving, each 450mA,even ampere distribute.
8.NTC temperature control system inside, Max speed of fans adjustable;
9.Seperated heatsink design between LED and DIriving, make sure more than 15000 Hours Longevity for SMPS and Main board.
10.Field Angle standard 30°,could choose other angle, and also frosted piece and 30x 90° third optical piece.

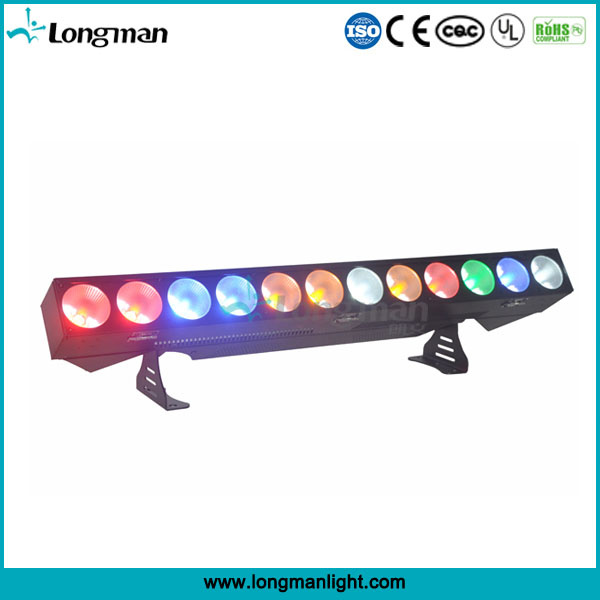

Product pictures:

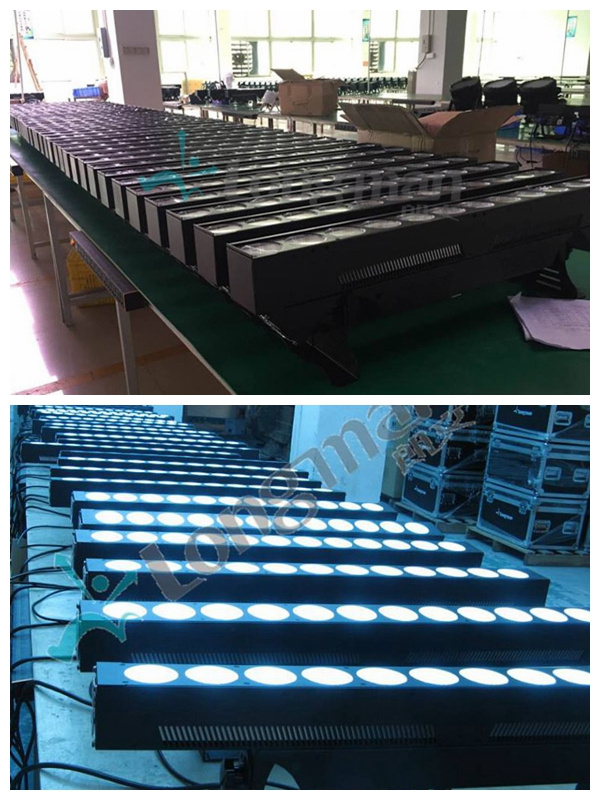

Producing pictures:

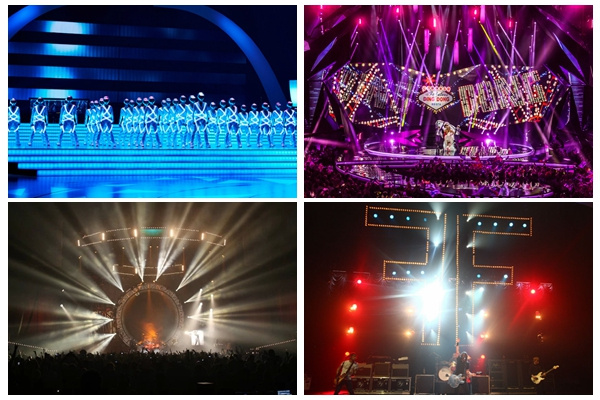

Applications:Specifications:Voltage input | AC 100V-240V 47-63Hz PF:>0.9 |
Voltage output | DC15V,longevity 15000Hours |
Rated power | 360W(290@220V 50Hz) |
Luminaire Efficiency | >0.9,Light Effiacy >41.1lm/W |
Light source | 12pcs*25W Full RGBAW LED,12 pixels,450mA driving total 11926 Lumens output |
LED CCT | R=625nm,G=525nm,B=460nm,A=590nm,W=6500K,offer multi-Color and many white color,SDC<0.005 |
Field Angle(10%) | standard 97 °(8348Cd on axis),60°Etc optional |
Control signal | DMX512,32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock,PWM>1500Hz,Flicker free |
Control mode | DMX1990/DMX512A/stand alone/master and slave/Sound Active |
Chanel option | 5/6/11/18/23/28/60/68CH all inside menu |
Display | Could choose auto turn off no operation,Auto show DMX signal come or not |
Housing material | QR235 Steel board,Painted Matte balck, customized other color and barndoor |
Safty | Class II, Powercon Blue and white souket, Endure 5ms 1.5KV shock,Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP20 |
Operate temperature | -20~+45ºC,Light board peak temperature 80ºC by fans cooling and with NTC protection |
Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
Weight | 11KG,with 3mm thick bracket |
Size | 912*136*240mm |
FAQ: 1. Are you a factory or trading company? Yes ,We are a factory. |
2. Where is your factory located? How can I visit there? Our factory address is : No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us ! |
3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash Light; B. Studio Light; C. Indoor Parcan Light; D. Professional Wash Light; E. Audience and DJ Light; F. Outdoor Parcan Light; G. Outdoor Washer Light; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting. |
4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in , together with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
5. Does the products have any certificate? Yes,our products have CE,ROHS ,UL, CQC and SGS certificate . |
6. What's the Payment method? All methods can be discussed. |
7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details, phone/fax number, destination,transportation way ;Product information:item number,size,quantity,logo,etc. |
led wall washer light bar from China professional led wall washer light bar manufacturer.
If you have specific parameters and requirements for led wall washer light bar, customization is available.
