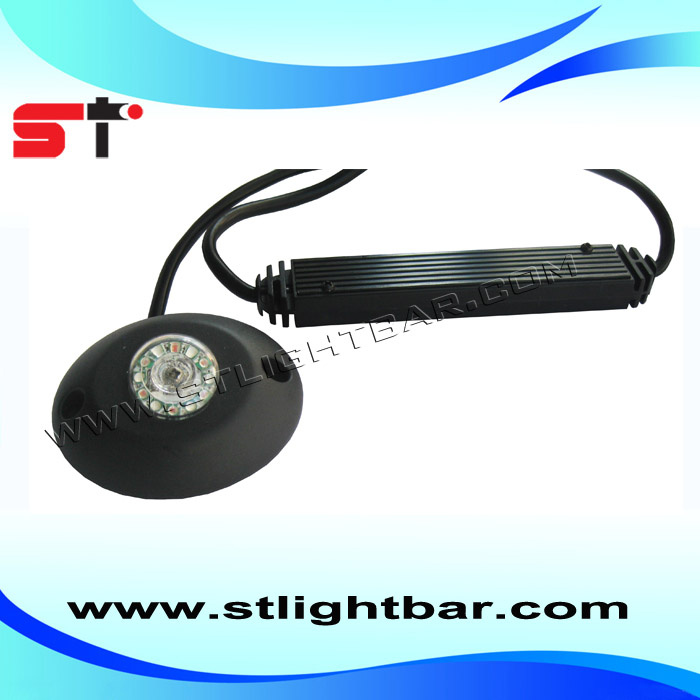

Emergency light, indicator light, Stroboscopic light
Features:
Generation III high power LED, Hide-away light
Pre-programmed multiple flash patterns
Alternating or simultaneous flashing available
Technical Specifications:
12 PCS of 1 Watt LEDs
19 Flash Patterns
Solid Alternating Flash Patterns
Mounts in a 1" hole
Wiring
RED: + 12V DC (Fuse@ 3A)
BLACK: - GROUND Connect to Ground vehicle chassis
YELLOW Pattern Selection
To select Flash pattern, apply Yellow to red, Less than 1 second for next pattern
About 3-5 seconds for steady burn, more than 5 seconds to turn off
White: Synchronization
Connect White wire of all heads together for synchronization
All heads must be on same flash pattern to be able to sync
Model
L306-12
L306-6 (Similar products)
Voltage
12V or 24V DC
12V or 24V DC
LED
1W Led, 12pcs/lighthead, 1pc lighthead
1W Led, 6pc/lighthead, 1pc lighthead
Led Color
Green /Red/Blue/Amber/White/Purple
Green /Red/Blue/Amber/White/Purple
Dome Color
Clear
Clear
Lens material
Polycarbonate (PC)
Polycarbonate (PC)
Operating Temperature
40 to 55 Centigrade
40 to 55 Centigrade
Dimensions
Mounts in a 1″ hole
Mounts in a 1″ hole
Flash patterns
19 flash patterns
19 flash patterns
