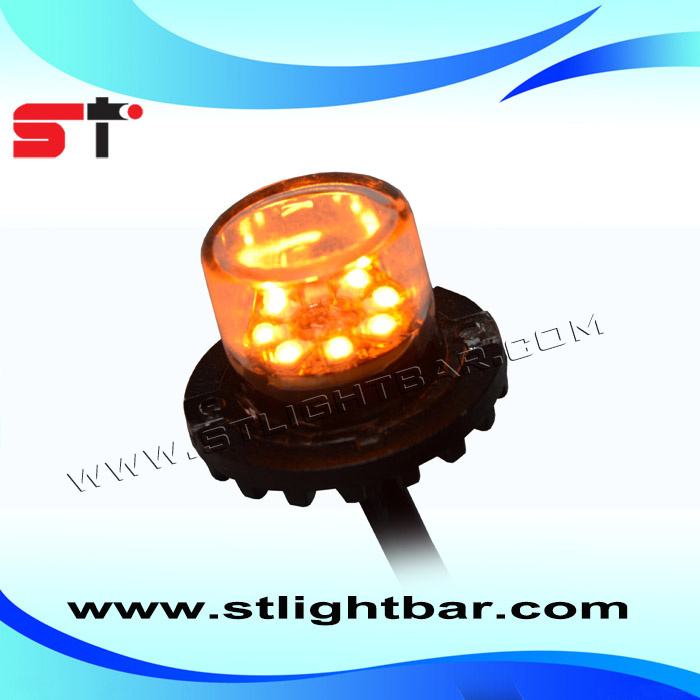

Internal light,surface mount light
Used for police car, cop car, fire fighting, ambulance EMS, wrecker, project car, sprinkler, patrol car, emergency vehicle, car, truck, motorcycle ect
Features:
Generation III high power LED, Hide-away light
Pre-programmed multiple flash patterns
Alternating or simultaneous flashing available
Technical Specifications:
8 PCS of 1 Watt LEDs
19 Flash Patterns
Solid Alternating Flash Patterns
Mounts in a 1" hole
Wiring
RED: + 12V DC (Fuse@ 3A)
BLACK: - GROUND Connect to Ground vehicle chassis
YELLOW Pattern Selection
To select Flash pattern, apply Yellow to Black, Less than 1 second for next pattern
About 3-5 seconds for steady burn, more than 5 seconds to turn off
White: Synchronization
Connect White wire of all heads together for synchronization
All heads must be on same flash pattern to be able to sync
Flash Patterns:
0. Random,
1. Single (split)
2. Double (split)
3. Quad (split)
4. Quint (split)
5. Mega (split)
6. Ultra (split)
7. Single - Quad (split)
8. Single H/L (split)
9. Single (all)
10. Double (all)
11. Quad (all)
12. Quint (all)
13. Mega (all)
14. Ultra (all)
15. Single - Quad (all)
16. Single H/L (all)
17. Steady 2 (California)
18. Steady 4 (all)
Model
LL110T
LL118 (Similar products)
Voltage
12V or 24V DC
12V or 24V DC
LED
1W Led, 8pc/lighthead, 1pc lighthead
1W Led, 8pcs/lighthead, 1pc lighthead
Led Color
Green /Red/Blue/Amber/White/Purple
Green /Red/Blue/Amber/White/Purple
Dome Color
Clear
Clear
Lens material
Polycarbonate (PC)
Polycarbonate (PC)
Operating Temperature
-40 to 55 Centigrade
-40 to 55 Centigrade
Dimensions
Mounts in a 1″ hole
Mounts in a 1″ hole
Flash patterns
19 flash patterns
19 flash patterns
