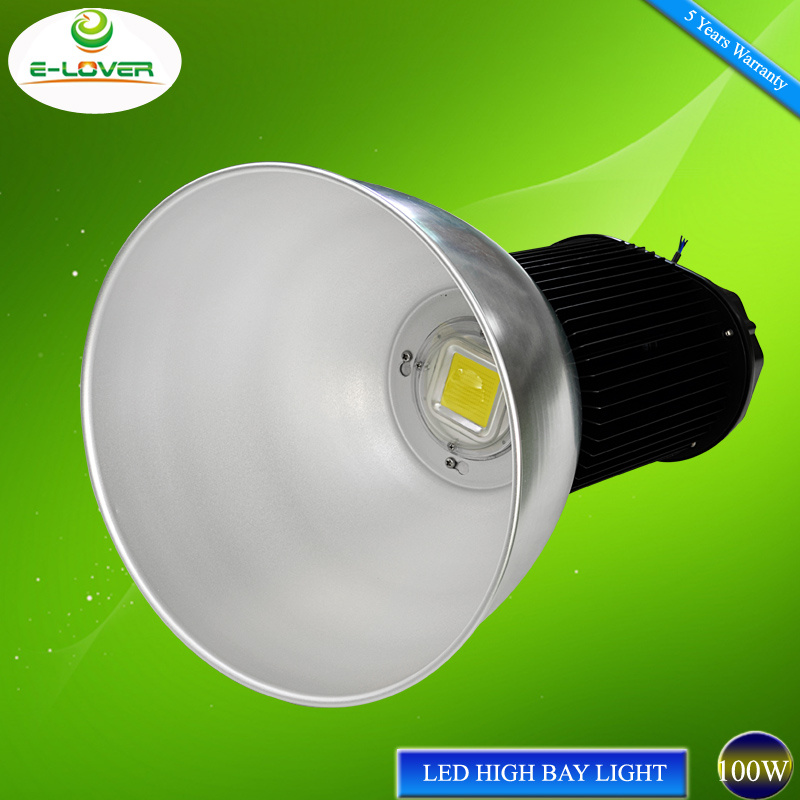

Led High Bay Lights optical and electrical properties
No | Model No. | Power | Size(mm) | Unit Weight (KG) | Chips | LEDs | CCT | Lumens | CRI | Driver | Input Voltage | Power Factor | Beam Angle | IP Rating | Material | Cable | Certificate | Warranty |
|
1 | EL-HB1BM30W | 30W | Ø160*60 | 3.5 | COB Bridgelux 45mil chips | 1pcs | 3000K 4000K 6000K | 2550lm 2700lm 2850lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
2 | EL-HB1BM60W | 60W | Ø160*100 | 3.7 | COB Bridgelux 45mil chips | 1pcs | 3000K 4000K 6000K | 5100lm 5400lm 5700lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
3 | EL-HB1BM80W | 80W | Ø160*140 | 5 | COB Bridgelux 45mil chips | 1pcs | 3000K 4000K 6000K | 6800lm 7200lm 7600lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
4 | EL-HB1BM100W | 100W | Ø160*180 | 5.2 | COB Bridgelux 45mil chips | 1pcs | 3000K 4000K 6000K | 8500lm 9000lm 9500lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
5 | EL-HB1BM120W | 120W | L250*W210*H140 | 6.4 | COB Bridgelux 45mil chips | 3pcs | 3000K 4000K 6000K | 10200lm 10800lm 11400lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
6 | EL-HB1BM150W | 150W | L250*W210*H180 | 8.3 | COB Bridgelux 45mil chips | 3pcs | 3000K 4000K 6000K | 12750lm 13500lm 14250lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
7 | EL-HB1BM180W | 180W | L250*W210*H210 | 9 | COB Bridgelux 45mil chips | 3pcs | 3000K 4000K 6000K | 1530lm 16200lm 17100lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
8 | EL-HB1BM200W | 200W | L240*W210*H150 | 9.8 | COB Bridgelux 45mil chips | 4pcs | 3000K 4000K 6000K | 17000lm 18000lm 19000lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
9 | EL-HB1BM240W | 240W | L240*W210*H200 | 10.6 | COB Bridgelux 45mil chips | 4pcs | 3000K 4000K 6000K | 20400lm 21600lm 22800lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
10 | EL-HB1BM280W | 280W | L240*W210*H250 | 13 | COB Bridgelux 45mil chips | 4pcs | 3000K 4000K 6000K | 23800lm 25200lm 26600lm | 70 | Meanwell | AC85-265V | 0.95 | 45°/90° /120° | IP40 | Aluminium | 0.5M | CE | 5 Years |
Reflector | Ø420*250 | 45° |
Ø500*190 | 90° |
Ø500*140 | 120° |
Led High Bay Lights Features:
1. LED: Bridgelux BXCD4545445-H-z 140-145lumen/Watt - 50000hours lifespan. |
2. Driver: Led High Bay Lights use Taiwan Meanwell driver, model: HLG-185H-36B - 50000hours lifespan. |
3. As you know the good heat dissipation is important for the lifespan, so we use the 6063 Aluminum -Heat dissipation to reduce the decay. So our Led High Bay Lights decay rate is just 1% using 10000HRS; |
4. Cooling paste: Japan 's Shin- Etsu X-23-7762 |
5. Led High Bay Lights wattage ranges 30W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, 240W, 280W |
6. 5 years warranty |
7. E-Lover have 4 series Led High Bay Lights, we will try to be your Led High Bay Lights Shenzhen factory |
Led High Bay Lights Application
1. shipyard |
2. workshops |
3. factory |
4. warehouse |
5. gas station |
6. highwall toll booth |
7. large supermarket |
8. exhition hall and other need led miner lamps places |
LED High Bay Lights Replacement
No | Product | Traditional Energy Saving Products | Lux |
|
1 | 30W LED High Bay Lights | 60W | 328lux in 1.5m |
|
|
2 | 60W LED High Bay Lights | 120W | 620lux in 1.5m |
|
|
3 | 80W LED High Bay Lights | 160W | 290lux in 5m |
|
|
4 | 100W LED High Bay Lights | 200W | 410lux in 5m |
|
|
5 | 120W LED High Bay Lights | 240W | 430lux in 5m |
|
|
6 | 150W LED High Bay Lights | 300W | 640lux in 5m |
|
|
7 | 180W LED High Bay Lights | 360W | 693lux in 5m |
|
|
8 | 200W LED High Bay Lights | 400W | 390lux in 8m |
|
|
9 | 240W LED High Bay Lights | 480W | 425lux in 8m |
|
|
10 | 280W LED High Bay Lights | 560W | 440lux in 8m |
|
|
