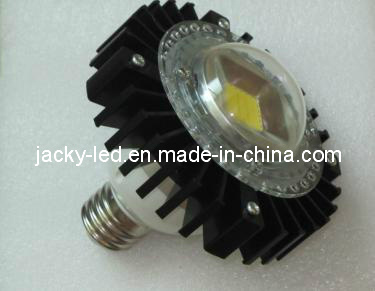

E40 20W LED high bay light
(1)Beam angle: 120deg
(2)Streamline exterior design, beautiful appearance
(3)Its major to replace the CFL MH HPS etc. Traditional lights
(4)\Alumium fins heastin and active air exchanging cooling system in order to speed up heat dissipation
(5) more energy saving, long and reliable life of 50, 000 hours
(6)Take full advantage of the luminous efficienc
(7)Wide colour availability in degrees Kelvin(K), 2700-6700K
(8)NO RF Interference, NO IR/UV radiation, no mercury pollution
Bbier E40/E39/E27/E26 E40 20W LED high bay light
Beam Angle 120°
Light Source/Count Bridgelu COB LED
Lamp Base E40 E39 E27
Power Consumption 20W
LED Luminous Efficiency >100lm/w
Luminous Flux 2000lm ± 5% ( Tj=70° C, Ta=25° C)
Lamp's Efficiency ( %) >95 %
Color Temperature Standard Warm White: 2, 700 ~ 3, 500 K
Natural White: 4, 000~5, 000 K
Cool White: 5, 500~6, 700K
Color Rendering Index(CRI) Ra>75
LED Emitter Life 50, 000 hours
Replacement CFL 60W
The Dimensions Dia160*H170mm
Applications Indoor using
Input Voltage 85-265VAC / 50-60Hz DC12V, DC24V. DC36V
PF >0.95
Power Efficiency >87%
Power Consumption (Bulb/LED) 20
Power Supply 1W
Operating Temperature -40 ~ 45° C
Applications:
1. Outdoor and indoor use
2. Stairway security lighting
3. Parking garages
4. Gas station
5. Wineries
6. Schools/government buildings
7. Grocery stores
8. Custom Applications
Installition information:
1. First set up accessories and fittings of the light.
2. Cut off the power before instal lation.
3. Make sure the product is fixed tightly to the instal lation surface(instal l it according to diagram as below).
4. Connect the wire of the l ight to the power supply, then switch on the power.
Quality Control:
1, Standard anti-static and dust-free workshops;
2, Well-trained employees and advanced operating machines;
3, Finished products will be detected by detecting equipment;
4, Every product will be tested for 48 hrs, defect rate is 0.2-0.5 percent;
5, All series with top quality can meet CE, FCC, RoHS and EMC demands
Customer Service:
Your inquiry related to our products or prices will be replied in 24 hours
Well-trained and experienced staffs to answer all you
|
Full Name |
Led hight bay ligth E40E39E27 |
|
Item No. |
YN-highbay-20W |
|
Power |
20W |
|
Input Vlotage |
85-265VAC, 50/60HZ |
|
Luminous Flux |
2000LM |
|
LED Source |
Bridgelu COB LED |
|
Chip size |
45mil Chip |
|
Size |
160*H170mm |
|
Replacement |
50W HPS |
|
Housing Materials |
Aluminum |
|
Beam Angle |
120degree |
|
CRI |
Ra> 80 |
|
Color Temperature |
WW(2700-3800K), NW(4000-5000K) or CW(5500-6700K) |
|
IP grade |
65 |
|
Lamp Base |
E40 E39 E27 E26 |
|
Lifespan |
50, 000hours |
|
Power Factor |
> 0.95 |
|
Power Efficiency |
> 87% |
|
Luminous Efficiency |
> 100LM/W |
|
Body Temperature |
< 65º C |
|
Warranty |
3 years |
|
Certifications |
CE RoHS EMC LVD |
|
Application |
Mainly for indoor using, such as factory, High Hall, Shop, Hotel, Garage, gas station, parking garages, etc... |
