Parameters:

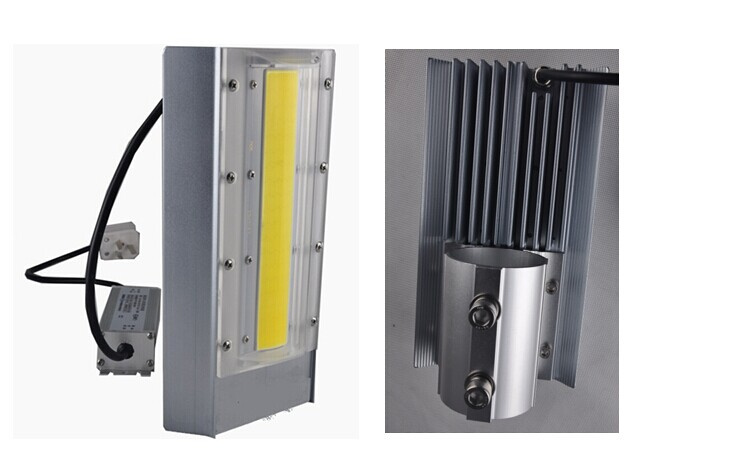

Led street light -30COB50COB60COB
Product Type: YN-street-30COB
Power: 30W
LED lumen(LM): 3360LM
Input Voltage(V): AC90-305V
Power factor(PF): >95
Color (K): 2700K-7000K
CRI(Ra): >75
Frequency(HZ): 50HZ/60HZ
Light efficiency(LM/W): >110LM/W
Lighting Case Size (mm): 234.4*125.7*120.3mm
Light fades(%): 3000 hours light failure, (no more than 5% a year)
Lifetime(H): 50000
Net weight: 2.0KG
Warranty: 3years-5years
1, the product advantages:
Ø Application of LED light source to achieve more than 50% energy saving, saving energy costs.
Ø Long life, saving product replacement costs.
Ø According to customer requirements using the environment, can be designed in different color temperature to suit the requirements of different environments on the light source.
Ø Carbon environmentally friendly products, all the materials for environmental pollution-free materials, environmental compliance, reduce environmental pollution.
Ø High transmittance glass optical lenses, such as brightness and road lighting.
Ø Optical light, no glare, no light pollution, strong direction, uniformly high.
Ø High-power LED chip package.
Ø Constant current drive, start-up time is short, 0.95 power factor, high power efficiency, practical and long life, safe and reliable.
Ø Accurately control the light direction, the light sufficiently on the required distribution of the illumination of the road surface, to prevent glare and light pollution.
Ø Use of aluminum forming one large outstanding workmanship heat, thermal radiation area, greatly enhance the air convection cooling body.
Ø Reliable silicone rubber seal, resistance to high temperatures above 150 degrees, aging, light body sealing, waterproof and dustproof.
2, the application places
Ø City roads
Ø Highway
Ø Parking
Ø Highway, State Road
Ø Industrial Zone
Ø Plant
Ø Community
Ø Street
Ø City lane
Ø Park
3, note:
Ø Avoid the risk of electric shock, do not disassemble this product, if you have problems please contact a qualified electrician for repair service, disassemble cause product damage.
Ø In order to ensure that the product is working properly, use the operating voltage of 100-240V 50-60Hz power.
Ø Installation, demolition products, please power off the lighthouse, to avoid the risk of electric shock.
Ø To ensure results, do not use in high humidity or dusty environment, this product, including but not limited to, the following environments: Bathroom, sauna, polishing workshop.
Ø Do not look directly into the LED light source for a long time, high-intensity light source may cause eye injury.
4, warning
Encounter the following situations, please turn off the power immediately and contact an authorized service dealer or factory qualified service technician for assistance.
Ø Electronic components are exposed to rain or other liquids splash.
Ø Product produce smell gas, abnormal sound or unusual flashing.
Ø When the invasion of foreign matter inside.
Ø When the shell breakage.
5, fault diagnosis
If the product does not operate incorrectly, please confirm whether due to the following reasons.
If the method of instruction to take, still can not solve the problem, discontinue use and contact a qualified electrician.
Ø After power lamp does not light
Disconnect the power supply, check the adjustment circuit screw is loose.
After Ø Power light flashes
Please call a qualified electrician check the power supply voltage is lower than the requirement.
Product Type |
YN-street-30COB |
YN-street-50COB |
YN-street-60CO |
|
power |
30W |
50W |
60W |
|
LED lumen(LM) |
3360LM |
5600LM |
6720 |
|
|
Input Voltage(V) |
AC90-305V |
|
Power factor(PF) |
>95 |
|
Color (K) |
2700K-7000K |
|
CRI(Ra) |
>75 |
|
Frequency(HZ) |
50HZ/60HZ |
|
Light efficiency(LM/W) |
>110LM/W |
|
Lighting Case Size (mm) |
234.4*125.7*120.3MM |
|
Light fades(%) |
3000 hours light failure, (no more than 5% a year) |
|
Lifetime(H) |
50000 |
|
Net weight |
2.0KG |
|
Warranty |
3years-5years |
|
