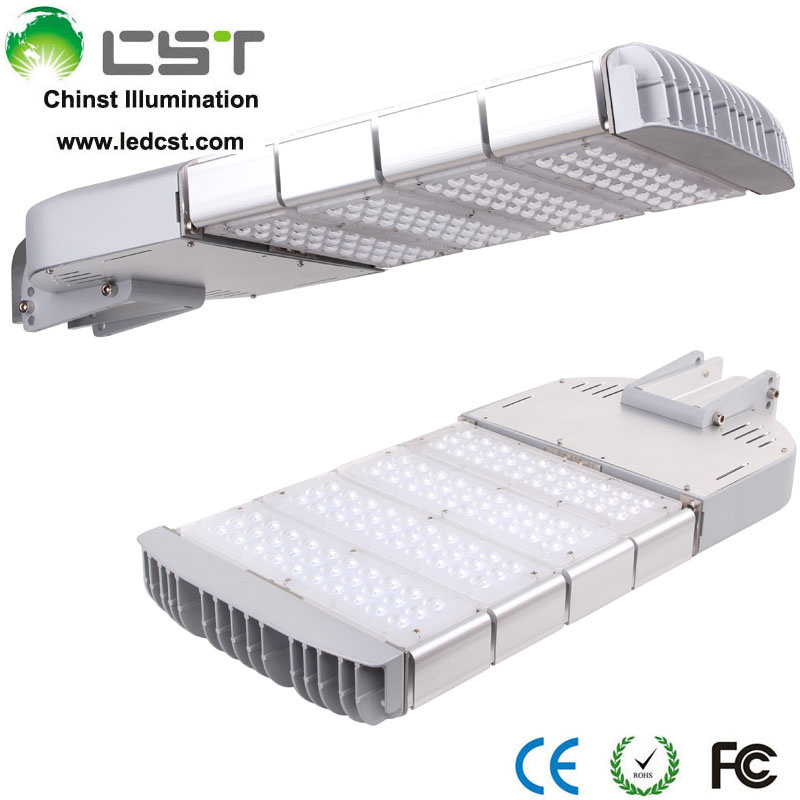

Chinst 120W IP66 outdoor led street lighting:
Product of advantages:
1, CST 120W high power street light adopts advanced Bridgelux 45mil LED chips as its lighting source, its Luminous Flux can reach 90lm/W,
2, High Pure Aluminum shell and patent thermal conductivity design ensure its good cooling heat ability,
3, Super stable: Long time burning before shipment, IP67 Waterproof protection, Ideal for outdoor use,
4, Taiwan Meanwell LED Driver ensures its stability of light, it can work efficiently under AC85-265V,
5, Breakage resistance: Solid LED lighting source,and not easy to damage.
Innovation Points of 120W high power outdoor led Street light:
Adopts the whole aluminum lamp cooling technology, perfect efficiently,
Solve the problem of heat dissipation, greatly extend the life of the lighting source,
Free of dust, waterproof design,reduce the pressure of cleaning, maintenance,suitable for outdoor envirnment,
Prospective ultra-thin patent appearance structure design,convenient in maintenance in store and transportation.
Protection grade reaches ip67 waterproof protection.
Shell and anodic oxdation treatment of the lacquer that bake, strong corrosion resistance,
The whole lamp uses solid aluminum material based on the rigorous thermal simulation and test, air duct was optimized by using innovative modular fins group, radiators, LED Lighting source,zero distance contact with the whole lamp cooling technology, the perfect solution to LED heat dissipation problem.
Series of 120W IP66 outdoor led street light:
| Wattage | LightingSource | Lumens | CCT | Rated life | N.G/PC | IP Rating |
| 60W | 2 module bridgelux | 5400lm | 2700-6500K | 50,000Hrs | 5,8KG | IP65/66/67 |
| 90W | 3 module bridgelux | 8100lm | 2700-6500K | 50,000Hrs | 7,4KG | IP65/66/67 |
| 120W | 4 module bridgelux | 10800lm | 2700-6500K | 50,000Hrs | 8,5KG | IP65/66/67 |
| 150W | 5 module bridgelux | 13500lm | 2700-6500K | 50,000Hrs | 9,8KG | IP65/66/67 |
| 180W | 6 module bridgelux | 16200lm | 2700-6500K | 50,000Hrs | 11,5KG | IP6566/67 |
| 210W | 7 module bridgelux | 18900lm | 2700-6500K | 50,000Hrs | 13,8KG | IP65/66/67 |
| Input Wattage | Input Voltage | Replacement | THD | Power Factor | Size/CTN | Opeation Temperature |
| 60W | AC85-265V 50-60Hz | 150W Matel Halide / HPS | <90% | >0,9 | 540*340*180/CTN | -40~45degree
|
| 90W | A85-265V 50-60Hz | 250W Matel Halide / HPS | <90% | >0,9 | 620*340*180/CTN | -40~45degree |
| 120W | AC85-265V 50-60Hz | 350W Matel Haide / HPS | <90% | >0,9 | 710*340*180/CTN | -40~45degreee |
| 150W | AC85-265V 50-60Hz | 400W Matel Halide / HPS | <90% | >0,9 | 800*340*180/CTN | -40~45dergree |
| 180W | AC85-265V 50-60Hz | 550~600W Matel Halide / HPS | <90% | >0,9 | 880*340*175/CTN | -40~45degree |
| 210W | AC85-265V 50-60Hz | 750~800W Matel Halide /HPS | <90% | >0,9 | 970*340*175/CTN | -40~45degree |
Electrical data of 120W IP66 outdoor led street lamp:
Rated Wattage: 120W
Input Voltage: AC85-265V 50-60Hz
Rated Power Factor: >0,93
Power Efficiency: >0,9
Humidity: <90%
Replacement of Conventional Lamp: 350W HPS,
Protection grade: IP67 waterproof protection,
Material for light: High pure Aluminum.
Light Technical data of 120W IP66 outdoor led street lamp:
Lighting source: Bridgelux LED chip,
Luminous Flux: 10800lm.
Color temperature:2700-3300K Ww, 4000-5000K Nw, 5300-7000K Cw,
Color redening index Ra: Ra>70/ Ra>80 for option,
Distribution of the light: LED + Secondary distribution of light reflector,
Start time: 0S
LED Emmiter life: 50000Hrs,
Applications of 120W IP66 LED Street light:
Widely used for secondary main road,branch, estate,park, industry zone, community,highway,regional road,municipal street,gas station, parking lot and other needs of outdoor lighting.
About us:
1, 6 years experience in exporting and manufacturing outdoor & indoor LED lighting,
2, ISO9001-2008 factory with over 200 well-rained staffs,
3, Rich-experience in public lighting projects,especially outdoor LED lighting projects,
4, Main products: LED Street light, LED Flood light, LED Panel light, LED Tube light and other lights,
Our service:
Quality Control:
1,) Standard Anti-static, and dust free workshops.
2,) Well-trained employees and advanced operating machines,
3,) Finished products will be detected be detecting equirpmet,
4,) Every product will be tested with 8Hrs,detect rate is 0,2~0,5 percent,
5,) All series of top quality can meet CE,UL, SAA,ROHS demands,
3 Years warranty:
1,) If driver failed, we will send new driver,
2,) If LED failed, we will send new LED.
Chinst (CST) Illuminication Co., Ltd, located in Shenzhen city in China, is professionally engaged in R&D, manufacturing, marketing and installation guide of LED products. The engaged LED products in CST Company involves LED Panel Light, LED Tube Light, LED Flood Light, LED Highbay Light, LED Tunnel Light, LED Street Light which are used around the world in decorating millions of homes, landmarks, buildings, workplaces, shopping centers and alike, and make the world more colorful.
CST excellent developing group, advanced manufacturing base, expertized instrument can research and develop new products according to market requirement and client' S demand, now CST products with most high-quality and reasonable price is welcomed by numerous users.
CST have implemented ISO9001 quality management standard, production quality strictly according to the managemet system. All products pass CE, RoHS, or SGS certificates and other authorative certificates required by other clients in the world. Each new kind LED product from CST Company must be test at least 6 months before mass production. We also set up a whole system of purchase, producing, final examine, project test for controlling every production link so that to ensure the quality. Each batch of LED finished products from CST Company must be 100% testing before putting into market. In a word, our concept to product quality is "pursuing best, reaching better".
Every year, CST join in different Fairs held in home and abroad, e. g. Canton Fair, HK international lighting fair, Frankfurt lighting fair, Italy lighting exhibition, etc. Besides, ODM/OEM are also a part of business that we have been doing. We work closely with our clients to ensure their complete satisfaction. Our motto is quality, efficiency and competitive price. We believe that good business comes from first-class Quality and excellent reputation. And we sincerely hope to establish long term cooperation with new and Old customers.
