Unique advantage and character

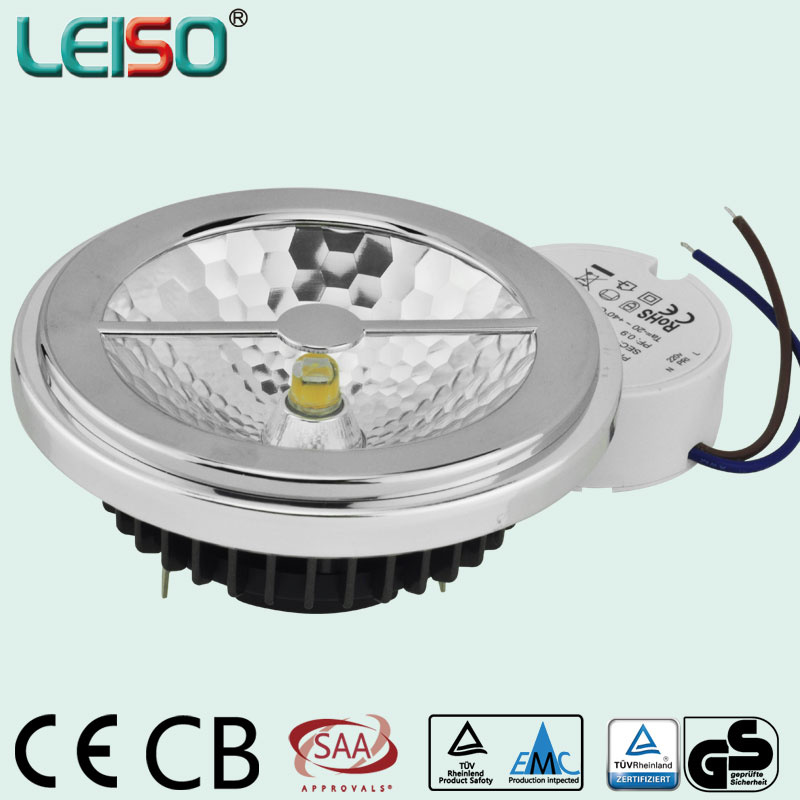

1. Adopt SCOB ( stereoscopic chip on board ) light source with 330 degree beam angle, and it work together with reflector, the light is more soft and uniform. see picture, I took it for you just now
2. Using GREE chip and we only choose CREE chip with 455-465.5nm, this is totally assure all of our goods with the same color, no need to worry about color difference.
3 It is defferent from the market led bulbs of public mould, we have patent for this item, you can't find the same product in market, It is unique in market, and greatly improve your market competition ability.
4. Products size keeps the same with traditional halogen lamp, which is convenient to be replaced directly by the user.
5. Inner driver adopt Japan Rubycon electrolytic capacitor, and It can match very well with electronic transformer at the market
Advantges and features:
1. Adopt patented SCOB light source (stereoscopic chip on board).
2. Unique design makes it different from existing LED Bulbs of public mould.
3. Optically designed reflector keeps the same appearance and light distribution with traditional halogen lamp, which is easily accepted by users.
4. Long lifetime 45000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5. No IR- and UV radiation.
6. Directly replace 75W halogen lamp, saving at least 80% energy.
7. TUV GS, CE, CB, SAA, EMC, ERP and RoHS obtained
8. Commercial lighting, Professional Customized Expert.
9: CCT: 1800K-7000K
Technical Parameters
Power: 15W
LED: SCOB -Cee Chip, Packaged By Leiso
Driver: Rubycon capacitor Fm Japan
CCT: 1800L/2300K/2500K/2700K/4000K/5500K/7000K
Lumen: CRI >80, 840 lm (2700K), CRI >80, 860 lm (3000K)
CRI >80, 960 lm (4000K), CRI >80, 1000lm (5500K)
CRI: 80Ra/90Ra/90Ra/95Ra/98Ra
Beam angle: 15° / 24° /40°
SIze: Φ 111*H55.5mm
We can customized CCT and CRI. CCT available from 1800K-7000K, CRI available fm 80Ra-98Ra
CCT Tolerance can be controlled within 2.5%, for example, for 2700K, we can controlled it withi 2700K+70K.
Same color bin( code) for different lot (same Item) Quait y can be controlled
| Item No. | Specification | Power | Lumens(CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
| Item size | packing |
| LS-S618-G53-BWW/BW | * SCOB LED AR111
* Reflector design
* CREE Chip
* Beam angle: 15~40°
* G53 base | 15W | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 960 lm (4000K)
CRI >80, 1000 lm (5500K) | Φ111*H55.5mm | 12V DC/AC | No | 111x55.5mm | 24pcs/carton
524x386x220mm
11.6kg |
| LS-S618-G53-A-BWW/BW | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K) |
| Item No. | Specification | Power | Lumens(CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
| Item size | packing |
| LS-S618-G53-ED-BWW/BW | * SCOB LED AR111
* reflector design
* CREE Chip
* Beam angle :15~40°
* G53 base
* With External Driver | 15W | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 960 lm (4000K)
CRI >80, 1000 lm (5500K) | Φ111*H55.5mm | 100~240V AC | NO | 111x55.5mm | 24pcs/carton
524x386x280mm
14kg |
| LS-S618-G53-ED-BWWD/BWD | 100-120V AC
220-240V AC | Yes |
| LS-S618-G53-ED-BWW/BW | * SCOB LED AR111
* reflector design
* CREE Chip
* Beam angle: 15~40°
* G53 base
* With External Driver | 15W | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K) | Φ111*H55.5mm | 100~240V AC | NO |
| LS-S618-G53-ED-BWWD/BWD | 100-120V AC 220-240V AC | Yes |
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.
Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.
The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.
"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
