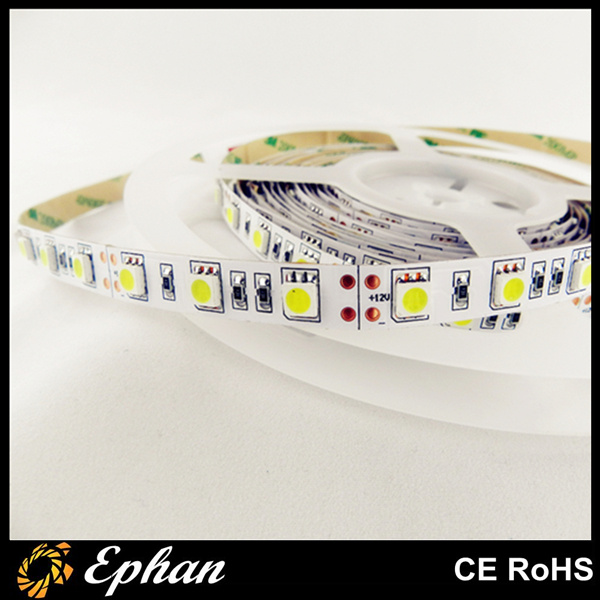

Best Quality SMD5050 60LED/M LED Strip Light (EPSST50-60-W)

Specification of Ephan LED Strip Light Model EPSST50-60-W LED Type SMD5050 LED Qty 60led/meter LED Chip Gold wire + copper electrode LED Brightness 18~20lm per led PCB Two layers copper board Width 10mm Back Tape 3M 9495LE Light Color 3000K/6000K/R/G/B Volt Watt 12V/14.4W Input Cable AGW20 Waterproof IP22/IP65/IP68 Weight 0.1Kg/roll MOQ 50m Warranty 3 years Details of SMD5050 60led/m led strip light Absolute Maximum Rating at TA=25°C Parameter Symbol Absolute Maximum Rating Unit Forward Current IF 1200 mA/m Power Dissipation PD 14.4 W/m Electrostatic discharge ESD 800 V Operating Temperature Topr -25~+60 °C Storage Temperature Tstg -40~+80 °C Electrical / Optical Characteristics at TA=25°C Parameter Symbol Condition Min Typ Max Unit Forward Voltage DC VF IF=400mA --- 12 --- V Dominant Wavelength λD IF=400mA --- --- --- nm Color Temperature Tc IF=400mA --- --- --- K 50% Power Angle 2θ1/2 IF=200mA --- 120 --- deg Advantage 1- Besides led light up the environment, it changes the atmosphere and make the scene more charming. 2- The flexible led strip can be bend as your will to design more sculpt and emotional sentiment. 3- The led light use 12V low voltage, and the voltage is stable. Not only saving the electricity, but also extending its working life. 4- Compare with the same power lamp, led light's heating power is much lower while its luminous is higher. 5- Made of non-prisonous materials, led light is environmentally friendlly and it can be recovered. Application Scene Illumination: Create a brilliant illumination, contrast the scene effect, or simply offer the necessary lighting 1)Building outline wall decoration 2)Advertising lighting 3)Stage, channel and passageway sign lighting 4)City lighting project Mood Illumination: Meet the spiritual need of people, provide dynamic light, create an artistic conception 1)Housing decoration 2)Park, theater, bar, cabin and tower lighting 3)Holiday decoration 4)Background light, concealed lighting 5)Car decoration Linking Operations   This kind of led light is SMD5050 60led, it's 14.4W/m and add to 72W/roll.   You can use the iron supply to ensure two or three strips at the same time or just to support the longer strip. We need an ex iron supply whose power is suitable for your demand, and a wire with plug in an end, and in the other end the rubber of the wire should be cut off, with copper wire exposed, also a phillips screwdriver.   First, use the screwdriver to loosen the screw, then put the exposed copper wire in it. Second, tight the screw and lay down the yellow cover. Watch out that the single wire should be connected with the L and N screws, and the wires of the strips can be connected with each of the -V or +V screws while obeying the rules that black wire to the -V and red wire to the +V. Here are some notices you'd better know before your installtion. 1- Switch off power of the mains supply or respectively of the connection lead before doing any works. 2- LED Light must not be subjected to mechanical stress. 3- The complete installation must be done by an electrical expert who is familiar with the valid directives. 4- If any doubt about the installation on use of this product .consult a competent electrician. 5- Assembly must not damage or destroy conducting paths. Package   After the final check, the led light would be rolled in the reel per 5 meters. Usually economy led strip will be rolled in the 9.1 inches reel, if you want the other reel, please let us know. Then it will be put in the static bag with moisture beads, and label color, QC passed and the neutral label.   50 rolls per carton. The marks could be printed on the box or pasted with scotch tape. The size of carton is 445*310*260mm. We will pave two layers of expand aple poly ephylene on the top and bottom which will protect the products well. Shipping 1- by DHL/Fedex/DPS/TNT express: door to door, for sample order; 2- by air or by sea:  relative cheaper, for batch order; 3- express to client's special agent in China; Lead time 5~7 days after receiving your deposit. Payment Terms 30% deposit, 70% balance. Method: T/T; D/P; Paypal; Western Union Series Product of led strip light Series Warranty Special Low Cost 1 year Economy 2 years Standard 3 years Super Quality 5 years LED Type Feature SMD3528 most common SMD5050 SMD335 narrow strip SMD3014 SMD2835 new design SMD5730
