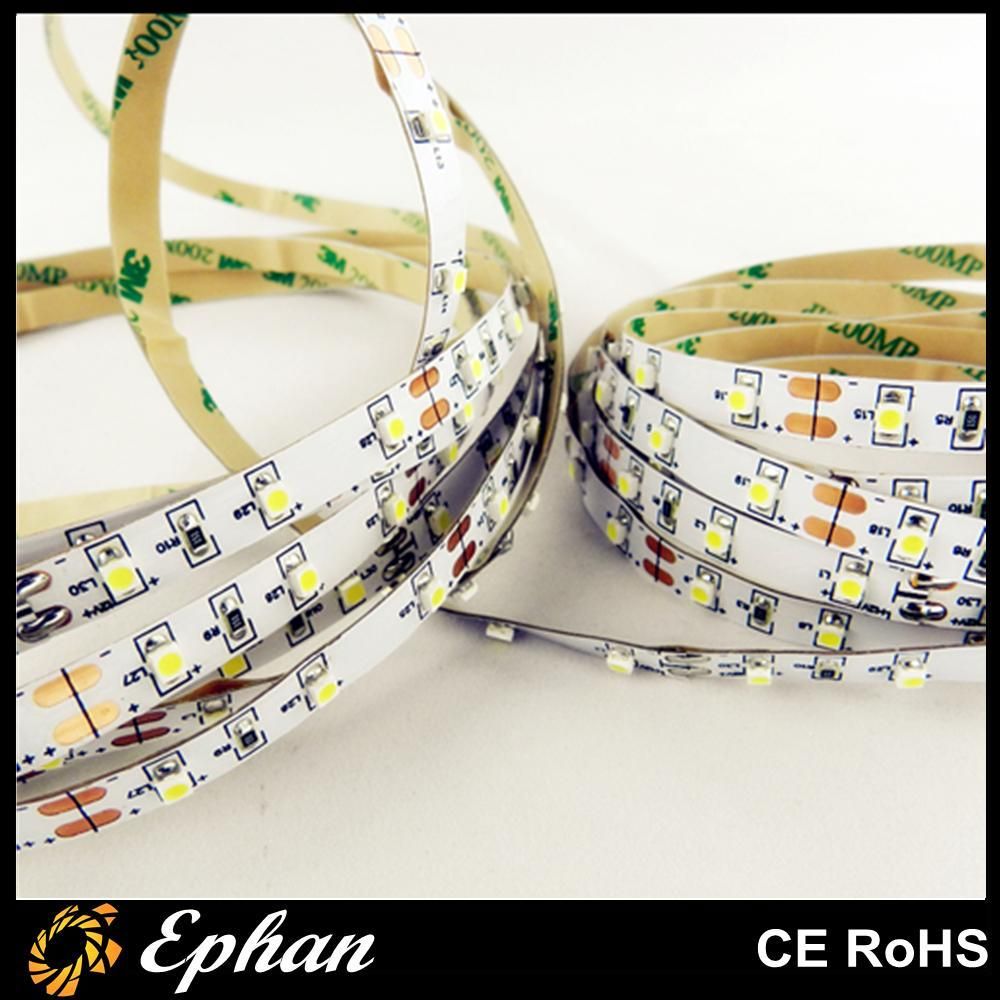

Specification of Ephan LED Strip Light
Model
EPSST35-60-W
LED Type
SMD3528
LED Qty
60led/meter
LED Chip
Silver wire + copper electrode
LED Brightness
7~8lm per led
PCB
Two layer copper board
Width
8mm
Back Tape
3M 9495LE
Light Color
3000K/6000K/R/G/B
Volt Watt
12V/4.8W
Input Cable
AGW20
Waterproof
IP22/IP65/IP68
Weight
0.1Kg/roll
MOQ
50m
Warranty
3 years
Details of SMD3528 60led/m led strip light
Absolute Maximum Rating at TA=25°C
Parameter
Symbol
Absolute Maximum Rating
Unit
Forward Current
IF
400
mA/m
Power Dissipation
PD
4.8
W/m
Electrostatic discharge
ESD
800
V
Operating Temperature
Topr
-25~+60
°C
Storage Temperature
Tstg
-40~+80
°C
Electrical / Optical Characteristics at TA=25°C
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage DC
VF
IF=400mA
---
12
---
V
Dominant Wavelength
λD
IF=400mA
---
---
---
nm
Color Temperature
Tc
IF=400mA
---
---
---
K
50% Power Angle
2θ1/2
IF=200mA
---
120
---
deg
Advantage
1- Besides lights up the environment, it changes the atmosphere and make the scene more charming.
2- The strip led can be bend as your will to design more sculpt and emotional sentiment.
3- The strip led use 12V low voltage, and the voltage is stable. Not only saving the electricity, but also extending its working life.
4- Compare with the same power lamp, strip led's heating power is much lower while its luminous is higher.
5- Made of non-prisonous materials, strip led is environmentally friendlly and it can be recovered.
Application
Scene Illumination: Create a brilliant illumination, contrast the scene effect, or simply offer the necessary lighting
1)Building outline wall decoration
2)Advertising lighting
3)Stage, channel and passageway sign lighting
4)City lighting project
Mood Illumination: Meet the spiritual need of people, provide dynamic light, create an artistic conception
1)Housing decoration
2)Park, theater, bar, cabin and tower lighting
3)Holiday decoration
4)Background light, concealed lighting
5)Car decoration
Linking Operations
We use wall type power supply for strips that total power consumption is under 25W. This kind of strip led is SMD3528 60led, it's 4.8W/m and add to 24W/roll. As the following picture, the strip led is connected with a DC female connector, we just need to insert the power supply's DC male in it to light it up.
Also you can use the iron supply to ensure two or three strips at the same time or just to support the longer strip. We need an ex iron supply whose power is suitable for your demand, and a wire with plug in an end, and in the other end the rubber of the wire should be cut off, with copper wire exposed, also a phillips screwdriver.
First, use the screwdriver to loosen the screw, then put the exposed copper wire in it. Second, tight the screw and lay down the yellow cover. Watch out that the single wire should be connected with the L and N screws, and the wires of the strips can be connected with each of the -V or +V screws while obeying the rules that black wire to the -V and red wire to the +V.
Here are some notices you'd better know before your installtion.
1- Switch off power of the mains supply or respectively of the connection lead before doing any works.
2- Strip LED must not be subjected to mechanical stress.
3- The complete installation must be done by an electrical expert who is familiar with the valid directives.
4- If any doubt about the installation on use of this product .consult a competent electrician.
5- Assembly must not damage or destroy conducting paths.
Package
After the final check, the strip led would be rolled in the reel per 5 meters. Usually economy led strip will be rolled in the 9.1 inches reel, if you want the other reel, please let us know. Then it will be put in the static bag with moisture beads, and label color, QC passed and the neutral label.
60 rolls per carton. The marks could be printed on the box or pasted with scotch tape. The size of carton is 445*310*260mm. We will pave two layers of expand aple poly ephylene on the top and bottom which will protect the products well.
Shipping
1- by DHL/Fedex/DPS/TNT express: door to door, for sample order;
2- by air or by sea: relative cheaper, for batch order;
3- express to client's special agent in China;
Lead time
5~7 days after receiving your deposit.
Payment Terms
30% deposit, 70% balance.
Method: T/T; D/P; Paypal; Western Union
