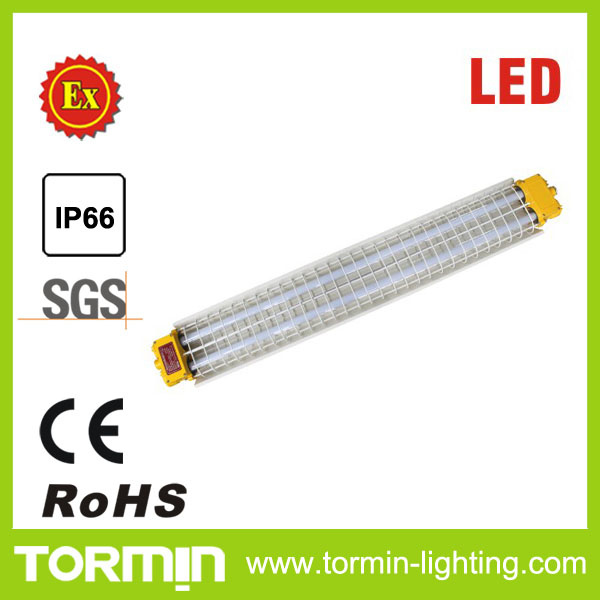

ATEX CE approved Explosion Proof Fluorescent Light Lamp Explosion Proof T8 LED tube Light
ATEX Ex Marking:Ex II2 GD
Ex de IIB T6 Gb
Ex tb IIIC T80° Db
Standard:GB3836.1,GB3836.2
EN60079-0:2009,EN60079-1:2007
IEC60079-0:2007,IEC60079-1:2007,
IEC60079-31:2008
Model Number:Explosion proof BC5401 series
Used in Petroleum
Used in Chemical
Used in Terminals
Used in Ports
Used in Aerospace
Used in aerospace
Used in Aviation
Used in Miliyary
Others
Product Description
Harsh environment, moist area.
Gas explosive environment : Group IIA, IIB, IIC
Zone 1, Zone2; Zone 21, Zone 22
Temperature class: T1 to T6
Characteristics
1)Support parallel connected, no need to use the junction box,support
ceiling, pole, wall mounting type.
2)Equipped with world brand light source, electrical appliance.
3)Products using flameproof increased safety structure, easy to install
with separate wiring chamber, meet the latest requirements of
explosion proof lighting, safe and reliable operation in explosive
hazardous areas.
4)Light housing made of aluminum alloy, high strength, stainless steel
exposed fasteners not color, not rust, can prevent rain
Specification
Model Number | BC5401-L2*20 | BC5401-Y2*28 |
| Input Voltage(V) | AC90-240V | AC220-240V,AC110V |
| Input Frequency(Hz) | AC110V,AC115V,AC120V,AC127V,AC220V,AC230V,AC240V |
| Rated Power(W) | 2*20 | 2*28 |
| Light Source | LED | T5 Fluorescent Lamp |
| Luminaire Effect(lm/W) | >90 | >70 |
| Color Temperature(K) | 5300-6000 | 4000 |
| Color Rendering Index(Ra) | >70 | >70 |
| Service Life(h) | >50000 | >20000 |
| Protect Grade | IP66 | IP66 |
| Factor | >0.95 | >0.95 |
| Total harmonic current | <15% | <15% |
| Housing Highest Surface Temperature(ºC) | <80 | <80 |
| Mounting Angle | 360° | 360° |
