Specification:
Rated voltage .......................3.7 V |
Rated capacity .....................1.4 Ah |
Lighting time .........................15 hours |
Explosion protection type ......Ex iaI |
Maximum Illumination.............1m apart from the lamp |
Beginning of lighting .............>2000Lux |
After 11 hours lighting ..........>1500Lux |
Main Light current .......0.12 A |
Sub-light current ..........0.06 A |
Life of cap lamp .........2 years |
Charging time ..............<10 hours |
Charging voltage ..........6-8 V |
Ingress protection ..........IP65 |
Weight ............. ............. 0.2Kg |
Exterior dimensions ......Φ 67x80 x75mm |
Features:

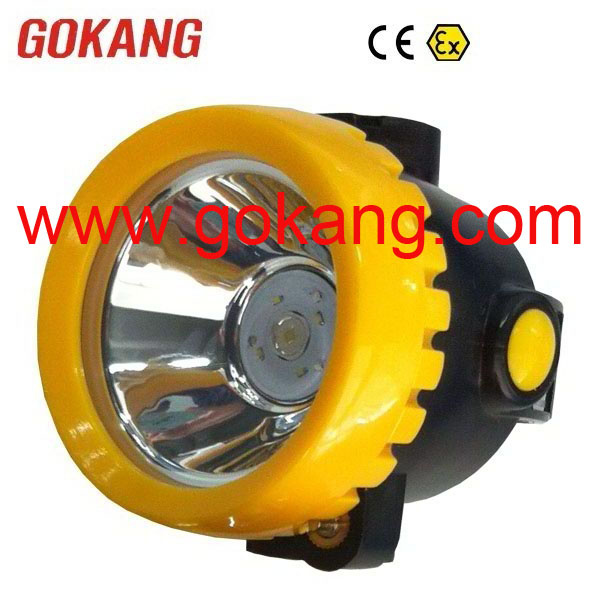

A) The miner's cap lamp consists of a Li-ion battery and a new generation LED light source.
B) The electronic switch controls the ON/OFF of the main light source and auxiliary light sources.
C) The miner's cap lamp has multi-functional protection.
D) A charging control circuit is fitted inside the headpiece of the miner's cap lamp. This circuit enables the miner's cap lamp to be charged on other manufacturers chargers.
E) Due to the efficiency and long life of the LED light source, it is not necessary for this to be replaced before the life of the miner's cap lamp is exhausted.
F) The miner's cap lamp is compact, light in weight, maintenance free, has long usage life, is intrinsically safe and environmentally protected.
Standards:
The miner's cap lamp complies with the following Standards:
IEC 60079-0: 2011
EN 60079-11: 2012
EN 60079-35-1: 2011
We're a ISO9001: 2008 Certified company that develop and manufacture coal mining safety equipment with the brand name of "GOKANG" since 1995. There are more than 50 skill engineers and 100 workes. Our factory locete in Xi'an China.
Cap lamps KL1.2Ex, KL4Ex, KL6Ex have passed ATEX/CE certification, Self rescuer K-S60 got CE(EN 13794) mark. They have been export to Chile, Brazil, Colombia, Mexico, America, United Kingdom, Swedden, Spain, Turkey, Russia, Ukraine, Kazakhstan, Romania, Iran, Tanzania, Georgia, Zimbabwe, India, Philippines, Vietnam, Australian, etc.
Welcome to Shaanxi Star Coal Mine Safety Equipment Co., Ltd.
Main Products:
1. Mining cap lamp
2. Mining self rescuer
3. Mining gas detector&sensor
