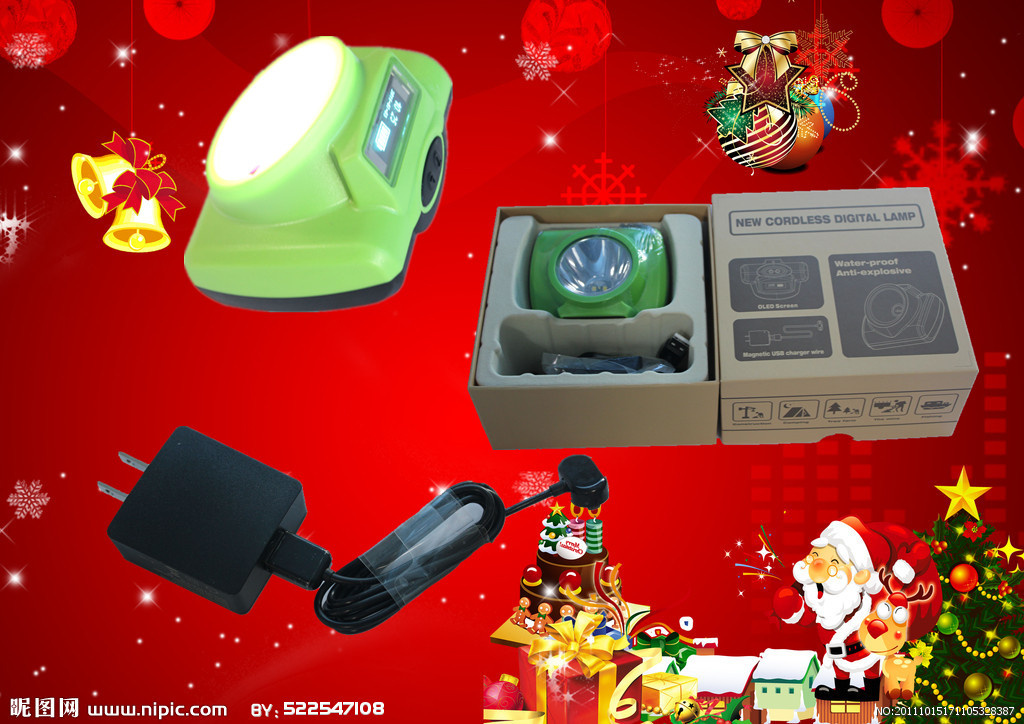

GLC-6 OLED digital cordless caplamp is our newest designed headlamp with unique design, high brightness, competitive price. There are 5 types, now we have the green color, if you want to change color or want to do your own logo, ok, no problem, we can do it.
Product Description
High quality high intensity of illumination LED headlamp
Features:
1. CE/ATEX certified.
2. This miner's lamp is Explosion-proof, water-proof, protection in electrical
Short-circuit, automatic power- off on the socket, 100, 000 hours LED
Lifetime.
3. Light weight, portable, high quality, strong brightness, long life time.
4. More than 20 hours working time, more than 4000lux high brigtness, more
Than 500 cycles lifetime of the battery.
5. One high power main light, 6PCS SMD LEDs backup lights.
6. All our lamps has one year warranty. We will keep free maintenance for
You in one year.
Technical Specifications:
Series cordless lamps
Technical Specifications | GLC-6(A) | GLC-6(B) | GLC-6(C) | GLC-6(D) | GLC-6(E) |
Light Source | one main light and two auxiliary lights | one main light and two auxiliary lights | one main light and two auxiliary lights | one main light and two auxiliary lights | one main light and two auxiliary lights |
Battery Capacity | 3.1Ah | 5.2Ah | 6.2Ah | 3.1Ah | 5.2Ah |
Rated Voltage | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V |
Power of the main light | 0.7W | 0.96W | 0.96W | 0.7W | 0.96W |
Brightness of the main light | 6000lux | 13000lux | 13000lux | 6000lux | 10000-13000lux |
LCD Screen | yes | yes | yes | no | no |
Working time | 13 hours | 15 hours | 20 hours | 13-15 hours | 15-18hours |
Life Span of the light source | 100000 hours | 100000 hours | 100000 hours | 100000 hours | 100000 hours |
Battery cycles | 1200 cycles | 1200 cycles | 1200 cycles | 1200 cycles | 1200 cycles |
Charging time | 3.5 hours | 4 hours | 6 hours | 4 hours | 4 hours |
Weight | 140g | 200g | 200g | 140g | 190g |
Water-proof grade | IP68 | IP68 | IP68 | IP68 | IP68 |
Certified | CE & ATEX | CE & ATEX | CE & ATEX | CE & ATEX | CE & ATEX |
Application
1.camping,hunting,overhaul,patrol,emergency.
2.mine industry,marine use,tunnel projects,coal mine.
Delivery Detail:
15-25days after order confirmation
Shipping methods:
You can choose EMS/DHL/UPS/Fedex/TNT/standard airfreight or ocean freight via international forwarder according to gross weight & Volume.
Packing:
Packing by colorful box of unit lamp with single charger, 20PCS/carton, 17.5kg/carton.
Carton size: 36cm*44cm*44cm.
Warranty:
We provides warranty against defects in materials and workmanship, We strictly control every production
process, the product provides 6 tests before leaving factory.
