Gl2-a Cordless High Power LED Headlamps for Chlie Market

Introduction:

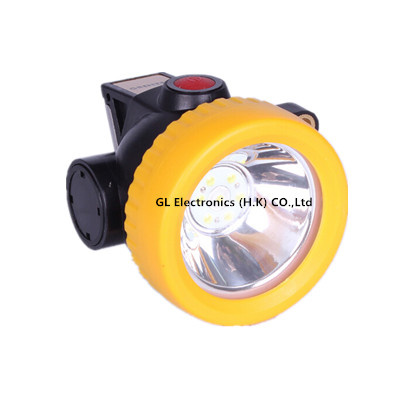

GL2LM cordless miner cap lamp uses 1pc 1W high power cree led as main light, and designed with high property 2.2Ah rechargeable Li-ion battery. This cap lamp  has 3500-4000Lux strong brightness,long lighting time,long life time,high intensity,light weight,low usage cost,and high safety. This lamp is nicely designed with traditional lamp head and battery in on house, it is lighter and portable than traditional cord lamp.

It can be used in Mountian-climbing,hiking,Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.


Technical Specifications:


Name		Unit	Value
Light  source	LED power	W	1
	illumimous flux	Lm	≥90
	lighting degree	Lux	≥3500(for 1 meter)
	lifetime	Hour	≥50000
Battery	capacity	Ah	2.2
	voltage	V	3.7
	charging time	Hour	≤6
	lifetime	Cycle	more than 1000
Charger	input voltage	V	AC110-240
	output voltage	V	DC3.7
	output current	A	0.6
Continuous lighting time		Hour	≥14
Lighting range		M	≥50
Working temperature		ºC	-20 - +40
Max surface temperature		ºC	40
Outline dimension		MM	75*66*60
Weight (single lamp)		G	170
Type of protection		CE/ATEX
Protection category		IP68


Features:
1. CE certificate of compliance NO: TMC20110209EC01
    IP65 certificate of compliance NO: TMC20110509EC02

2. Explosion-proof, water-proof, protection in electrical short
    circuit,automatic power- off on the socket, 100,000 hours led lifetime.

3. Light weight, portable,high quality, strong brightness, long life time.

4. More than 6 hours working time, more than 3500lux high brigtness, more
    than 500 cycles lifetime of the battery.

5. All our lamps has one year warranty. We will keep free maintenance for
    you in one year.



 Others LED  Head lamp

Green Lighting Related safety mining caplamps
GL2LM	GL2LM cordless mining safety cap light with 2.2Ah battery for hunt light
GL2.5LM A	GL2.5LM A Cordless Safety Caplamp with 2.5Ah Li-ion battery
GL2.5LM B	GL2.5LM B 13000Lux Brightness Anti-explosive Miner's Lamp
GL2.8LM	GL2.8LM 3000Lux Cordless mining lamp
GL4LM	GL4LM 4500lux safety mining lamp. Led miner's lamp. LED lighting
GL4.5LM A	GL4.5LM Digital miner's lamp ,digital cordless mining safety cap lamps
GL4.5LM B	GL4.5LM B 8000lux Mining Lamp Digital Cordless mining safety cap lamps
GL5LM A	GL5LM-A 4000lux Explosion proof Miner's Lamp,Coal Cap lamp
GL5LM B	GL5LM-B 10000lux Miner's Caplamp , Mining Caplamp
GL5L2M	GL5L2M 15000lux mining cap lamp
GL5.5LM	GL5.5LM Explosion proof 13000Lx Headlamps, Miner's Cap lamp
GL6LM	GL6LM 50000lux Strong brightness safety Hunting lamps ,Opal mining cap lamp
GL7LM A	GL7LM A 4000lux Explosion proof Miner's Lamp,Coal Cap Lamp
GL7LM B	GL7LM B 12000lux Brightness Mining Caplamp
GL11LM	GL11LM 30000lux strong brightness With 4 colors hunting lighting
GL-2000	GL-2000 3000Lx Headlamps, Miner's Cap lamp
GL1000	GL1000 Safety Cap , safety mining Helmet, Safety products
GJ3.5LM	GJ3.5LM anti-explosive intrinsically mine mining lamp
GJ4.5LM	GJ4.5LM intrinsically safety cap lamp with Ni-MH rechargeable battery
GJ6LM	GJ6LM coal mining cap lamp with rechargerable NI-MH battery
GJ8LM	GJ8LM 4000lux safety mining lamp. Led miner's lamp. LED lighting
GL-T2	T2 cordless mining safety cap light with 2.2Ah Li-ion battery



Advantages of Green Lighting Mining lamp
1, Professional R&D team (there are new items designed every month)
2, Complete equipment for all testing
3, Supplying over 5,000 customers in more than 40 countries.
4,10000pcs sales for a month
5,OEM equivalent perfomance and image-quality
6, Delivery from warehouse on Shenzhen Port
7, 1 year warranty for all of lamps



Application:

It can be used in Mountian-climbing,hiking,Patrolling, Overhauling , Mine and Emergency in electrical power company ,  Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.



Packaging:
packing by colorful box of unit lamp with single charger, 60pcs/carton, 16kg/carton.
carton size: 36cm*44cm*44cm.


FAQ

Q: What does IP mean?
A: IP (Ingress Protection) classifies the degrees of protection provided against the intrusion of the bulb. The first cipher indicates the bulbs resistance to solid intruders (like dust), and the second cipher indicated the bulbs resistance to water

Q:What is the distinguishing feature of explosion proof?
A:Meet GB3836-2000''explosive gas environment use electrical equipment''stand

Q:What is the advantage of environmental protection?
A:The LED solid state light source,no lead and mercury,no radiation pollution ,after the of recyclable.

Q:What is emergency device?
A:Optional configuration,integration design ,safety,long life ,can be removed from the DC power supply system

Q:What is Lux?
LUX is a measurement of, how much luminous flux is spread over a given area.

Q: What is Lumen?
   Lumen (Lm) is a measure of the total amount power of the light that is emitted at a 1 meter radius at a 360 degree angle from a light source.
   Integrating Sphere is used to measure Lumen.

Q: How long is 50,000 hours?

There are 8,760 hours in a year, so this is what 50,000 hours works out to be, depending on hours of operation.
Hours of Operation:
Bulb is on 24 hours a day 5.7 years    /Bulb is on 18 hours per day 7.6 years
Bulb is on 12 hours per day 11.4 years  /Bulb is on 8 hours per day 17.1 years

Additional Information

Payment Terms	L/C, T/T, Western Union
Minimum Order	200 pieces
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES



Delivery Details	Delivery after payment 15-20 days.
FOB Port	Shenzhen,
Loading Info	By marine transportation, the aerial transport, the air express mail as your choice.
Packing Info	unit lamp with single charger, 60pcs/carton, 16kg/carton.Can be customized as your requested.
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
