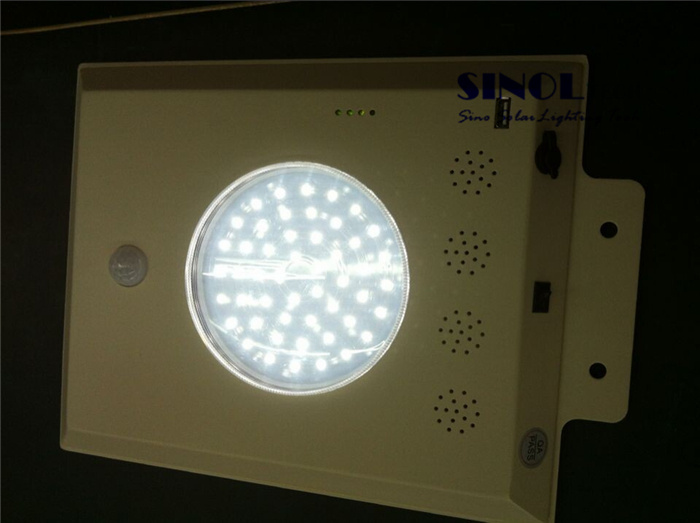

5W All in one integrated solar PV LED lighting/solar light for garden (SNSTY-205)
OEM logo is aceptable for quantity 50 units and above
Integrating the best green energy at present(Solar power, LED lamp, lithium-ion ferrous phosphate battery), adopting micro intelligent Solar controller, thermal infrared human
Body induction etc a series of excellent practical control technology, combined with simple integration design, realizing the perfect solution of low consumption, high
Brightness(5W LED light is equal to brightness of 40W incandescent light bulb), long service life, free maintenance, excellent waterproof and heat dissipation performance.
Meantime, the all in one solar light is very convenient to ship and install.
Battery display: 4 LED on-100%, 3 LED on-75%, 2 LED on-50%, 1 LED on-25%(should charge the lamp immediately)
Working time is calculated under condition of 8 hours charging under sunshine during summer, location northern latitude 22° East longitude 113° .
Actual working time will defer upon different region, season, environment, direction etc.
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
|
Solar Panel |
Max Power |
18V9W(High efficiency monocrystalline silicon) |
|
|
Life time |
25 years |
|
Battery |
Type |
Lithium battery |
|
|
Life time |
5 years |
|
LED Lamp |
Max power |
12V5W |
|
(With sensor) |
Led chip brand |
Epistar from Taiwan with high brightness |
|
|
Lumen(LM) |
180-600LM |
|
|
Life time |
50000hours |
|
|
Viewing angle |
120 degree |
|
Charge time |
By sun |
6hours |
|
Discharge time |
Full power |
6 hours |
|
|
Half power |
12 hours |
|
Working temp. |
range(C) |
-20C~+60C |
|
Color temp. |
range(k) |
6000k-6500k |
|
Mounting height |
range(m) |
2-3m |
|
Space between light |
range(m) |
5-6m |
|
Main lamp materials |
|
Aluminum alloy |
|
Certificate |
|
CE/ROHS/IP65 |
|
Warranty period |
|
2 years |
