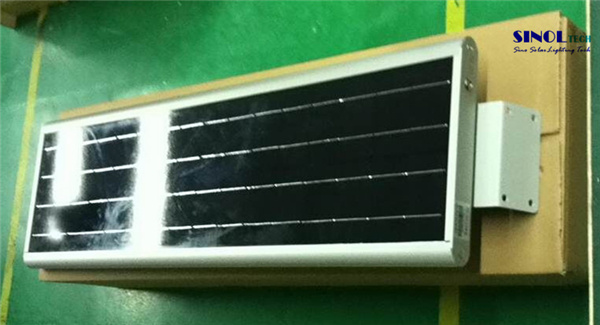

All in one design Solar powered 40W LED street light
Model: SNSTY-240
LED Lamp: 12V 40W, Bridgelux from USA with high brightness
Solar panel: 18V60W (high efficiency Sunpower)
Life time: 25 years
Battery Type: Lithium battery
Life time: 5 years
Lumen (LM): 4000-4400lm
Life time: 50000hours
Viewing Angle: 120 degrees
Charge time: 6hours
Discharge time: More than 10 hours under full power
More than 24 hours under saving power
Working Temperature range: -30~+60C
Colour temperature range(k): 6000k
Mounting height range (m): 6-7m
Space between light range (m): 18-20m
Lamps material of main aluminium alloy
Certificate: CE / RoHS / IP65
Warranty period: 2years
1. Main feature:
1)Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2)Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3)Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years,
Excellent high temperature performance, long life time can ensure the service life of whole product.
4)Waterproof structure, safe and reliable.
5)Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6)With segmented power control function, during late half night, brightness reduce in order to save energy
And increase practicality.
2. Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service
Life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent
Controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.
3. Working principle
The working principle of all in one solar light is the same with conventional solar light, the only difference is all components-solar panel, LED light, battery and control system are all integrated into one product, using lithium battery to make the whole product more light weight and easy installation.
4. Detail description about battery advantage
1) The most advantage of all in one solar street light is saving construction cost and maintenance cost, as well as shipping cost, generally only 1/10 of the cost for conventional solar street light.
2) Another obvious feature of all in one solar street light is extra long service life 5 years, adopting global initiative lithium battery management control technology, the total cost for after-sale service and component replacement is significantly reduced comparing with conventional solar light with normal lead-acid battery which requires to be replaced each 2 years.
For all in one solar light with lithium battery, no need to replace or maintain in 5 years, even after 5 years, battery requires to be replaced, due to the unique product structure design, the battery could be replaced within several minutes without the help of any technical support of engineer.
Normal users could finish the replacement independently.
Long service life lead acid battery is with cycling life 300 times, maximum 500 times.
While Lithium iron phosphate power battery, cycling life reaches over 2500 times, under the use of standard charging(5 hours charging), the cycling life could reach 2000 times.
For lead acid battery, the service life is only 1~1.5 years, while for lithium iron phosphate battery using under same condition, theory life could reach 7~8 years.
| Solar Panel | Max Power | 18V60W(High efficiency monocrystalline silicon) |
| Life time | 25 years |
| Battery | Type | Lithium battery |
| Life time | 5 years |
| LED Lamp | Max power | 12V 40W |
| (With sensor) | Led chip brand | Bridgelux from USA with high brightness |
| Lumen(LM) | 4000-4400LM |
| Life time | 50000hours |
| Viewing angle | 120 degree |
| Charge time | By sun | 6 hours |
| Discharge time | Saving power | more than 24 hours |
| Full power | more than 10 hours |
| Working temp. | range(C) | -20C~+60C |
| Color temp. | range(k) | 6000k |
| Mounting height | range(m) | 6-7m |
| Space between light | range(m) | 18-20m |
| Main lamp materials |
| Aluminum alloy |
| Certificate |
| CE/ROHS/IP65 |
