1, indoor Full color led project screen.
2, With small volume, light weight.
3, aluminum profiles, strong corrosion resistance.
4, hd display, the picture is exquisite.
5, support multimedia playback.
6, wide application scope.
Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
Features:
High Precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display
Color uniformity, high contrast, clear picture
Ultra thin body, easy to transport and loading and unloading
High stability, high reliability, long service life
Support for both front and back maintenance, easy installation
Parameters:

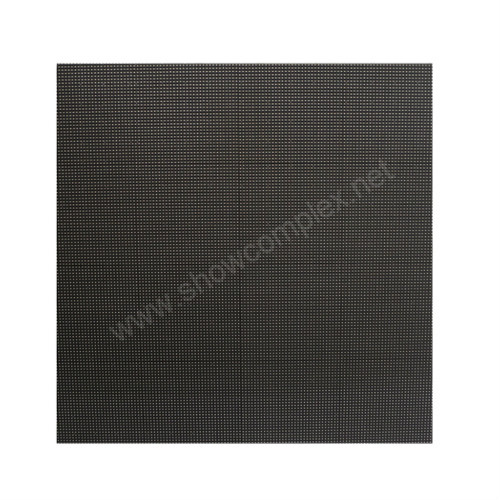

| Model | SC-AIR 2.5 Indoor Rental LED Display |
| Pixel pitch | 2.5mm |
| LED Encapsulation | 2121 |
| Pitch Composing | SMD 3 In 1 |
| Module Size | 240mm*240mm |
| Module Resolution | 96dot*96dot |
| Cabinet Size | 480mm * 480mm * 65mm |
| Cabinet Resolution | 192dot*192dot |
| Density | 160000dot/ |
| Brightness | ≥1200nits |
| Brightness Adjustment | Auto 256 level |
| Viewing Distance | 2.5m-10m |
| View Angle(H) | 150° |
| View Angle(V) | 140° |
| Max Consumption | 300W/ |
| Brightness Adjustment | Manual/Auto/Programmable |
| Driving Method | 1/32 Scan Constant Driving |
| MTBF | 50000hours |
| Lifespan | 100000hours |
| Frame Frequency | 60Hz |
| Working Temperature | -20ºC+50ºC |
| Humidity Range | 10% ~ 90% |
| Voltage | 110 ~ 240V |
| IP Ranking | IP31 |
| Blind Spotrate | <0.0003 |
