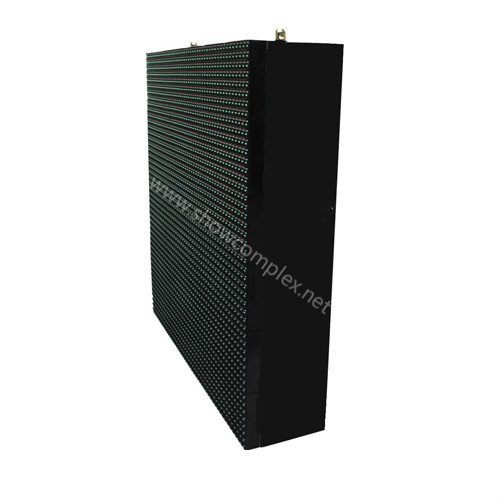

Bofd P10 Outdoor Fixed LED Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C |
1.High pixel density: high pixel density ensure vivid and HD effect even for screen less than 5m
2.High flatness: the cabinet flatness less than 0.1mm
3.Easy installation: with magnet structure, easy to assemble.
4.Play effect: low gray scale and high refresh rate, show natural signal.
5.Large area splicing:splicing of arbitrary size.
6.Unique design,big view angle more than 160°
Parameters:
hight quality and well waterproof which suits outdoor advertising,Clear vivid image quality provides an amazing visual feast,Large view angle and high brightness high clear fidelity image,Well anti_UV design that well protect the display from solar radiation,Considered maintenance with low cost.Environmental-friendly and energy-saving. Easy and simple installation interface and user friendly software to ensure that customers use easily.
| Model | PH10 DIP Outdoor panel |
| Pixel pitch | 10mm |
| LED Encapsulation | 1R1G1B |
| Pitch Composing | DIP |
| Module Size | 320mm*160mm |
| Module Resolution | 32dot*16dot |
| Cabinet Size | 960mm * 960mm |
| Cabinet Resolution | 96dot*96dot |
| Density | 10000dot/ |
| Brightness | ≥7000nits |
| Brightness Adjustment | Auto 256 level |
| Viewing Distance | >10M |
| View Angle(H) | 140° |
| View Angle(V) | 110° |
| Max Consumption | 1200W/ |
| Brightness Adjustment | Manual/Auto/Programmable |
| Prod Model: |
P10-d |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
