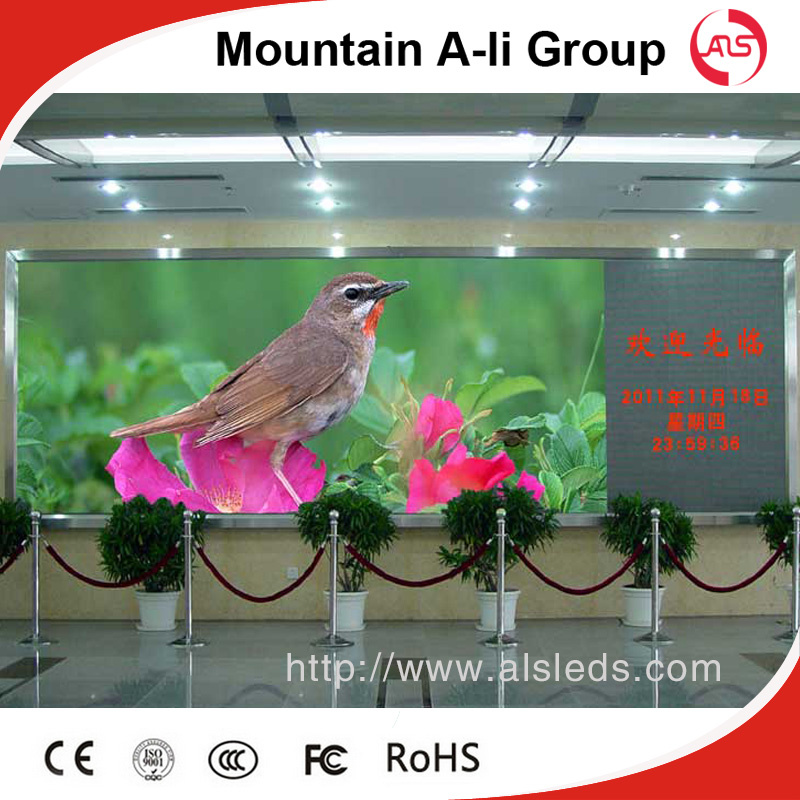

Affordable P6 Full Color Indoor Rental LED Display

Company Profile:   Mountain A-Li Group Electronic Company Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.     Products Features:   Our products cover indoor and outdoor full color LED screen, cabinet module, panel, and LED bare lamp.  Our LED products have the below advantages:  1. Tube chip: The chip brand is Epistar, the size is over 9 mils; Compared with other manufacturers, the lifetime is longer.    2. Mask: The unique design with patent makes it more orderly and better visual effect as well as better waterproof effects. The screw is longer than others, which can prevent the mask falling off.    3. The PCB board is thicker than others, which can postpone corrosion. Also, cement conduct can be waterproof.    4. Every panel is equipped 2 capacitors, which can ensure the voltage stability.    5. Famous IC brand is adopted, whose quality is guaranteed.   Product Parameters:     Item	Parameter
Product model	P6-4S	P6-8S
Module size	192mm*96mm
Pixel pitch	6mm
Pixel density	27777dots/m2
Pixel configuration	smd 3in1
Module resolution	32dots(W)*16dots(H)
Maximum power consumption	15W	12W
Module thickness	14.85mm
Module weight	0.154kg
Driving method	Constant current driving
Scan mode	1/4 scan	1/8 scan
Interface type	HUB75-A
Brightness	≥3000cd/m2	≥2200cd/m2
The specifications of cabinet
Cabinet size	576mm*576mm
Module quantity	18pcs
Power supply	5V/40A *2pcs
Cabinet resolution	96*96dots
Optimal viewing distance	6m~40m
Optimal viewing angle	160°(W) 120°(H)
Temperature	Storage:-35ºC~+85ºC Working:-20ºC~+50ºC
System operating humility	10%-95%
The specifications of power supply
Operating voltage	AC220V±10%
Average power consumption	270W/	220W/
Maximum power consumption	≤810W/	≤3650W/
Current	≤20mA(single LED)
The specifications of control system
Computer	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization control
The specifications of the main technical parameters
Driving device	Constant current driving
Refresh rate	≥400Hz
Grey scale	RGB each 256 grade, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic switch
Display mode	800*600/1024*768

Our service:

1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win


Trade Terms:

1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days
