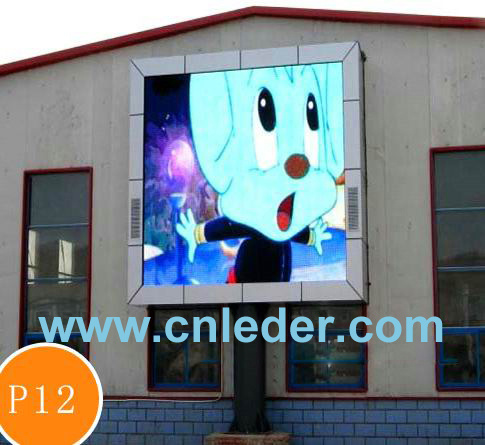

Advertising Outdoor LED Sign, LED Sign Display PH12
Outdoor full color LED display is one red, green, blue lamp plugged in to one pixel. Main technical parameters are brightness, environment adaptations, grey scales, and stability.
Leder's outdoor full color display can work normally under the disgusting environment by its temperature self-adopted system.
It uses blur control arithmetic control technology to the auto-achieve regulation and white balance of luminance. The brightness can auto-adjusted in accordance with the outside environment. The grey scale can reach to 16bits with the refreshing frequency to 10, 000Hz at the same time.It is widely used in advertisement for billboards, public squares, stations, etc.
What is the advantages of Indoor and Outdoor LED DISPLAY ?
*Multi-formats showing advertising
LED screen can show the dynamic Advertising, play different format and change constantly
*Excellent Image
With vivid color and beautiful image, people will not get bored but get greatly impressed
*Low cost, high feedbacks
Price even same with the traditional billboard but get much higher feedbacks.
Now our hot-selling products are Die-casting Aluminum cabinet series :
For Outdoor : P10 , P16 , P20 For Indoor : P3 P4 P5 P6
We also supply Single color, bicolor and full colors series Led display.
For Indoor Led displays, the spec can be P4,P5,P6,P7.62,P8,P10,P12.
For outdoor led displays, the spec can be P10,P12,P14,P16,P18,P20,P25,P31.2,P40 etc.
Welcome to send us inquires!
|
Display and control feature |
Structure feature |
|
Specification |
Parameter |
Specification |
Parameter |
|
Pixel Pitch |
12 mm |
Module size |
192 mm*192 mm |
|
Pixel composing |
1R1G1B |
Display resolution/module |
16 dots*16 dots |
|
Wavelength (R) |
620-630nm |
Standard cabinet size |
960mm*768mm |
|
Wavelength (G) |
520-535nm |
Cabinet Weight |
≤ 65 Kg/sqm |
|
Wavelength (B) |
465-475nm |
Protection classification |
IP65 |
|
Wave Angle (H) |
110° (H)/ 50° |
Install mode |
Wallmount, hung and stand structure |
|
LED package |
DIP 346 |
Cabinet Material |
Iron/Aluminum |
|
Density per sqm |
6, 944pixel |
Working power |
|
Grey scale |
12-16bit |
Specification |
Parameter |
|
Whiteness brightness |
≥ 6500 |
Working voltage |
AC 220v/50Hz± 10% or AC110v/50Hz± 10% |
|
Frame frequency |
60 Hz |
Average/Max power |
520W/1300W per sqm |
|
Refreshing frequency |
900-10, 000Hz |
Short circuit protection |
Yes |
|
Driving method |
1/4 Constant Driving |
Led Lamp type |
Nichia/Cree/Silan/OPTO |
|
Control mode |
synchronous |
Working environment |
|
Display port |
DVI |
Environment |
Outdoor |
|
Malfunction dot |
3/100, 000 |
Working temperature |
--20~50 |
|
MTBF |
10, 000 hours |
Working Humidity |
10~90% |
