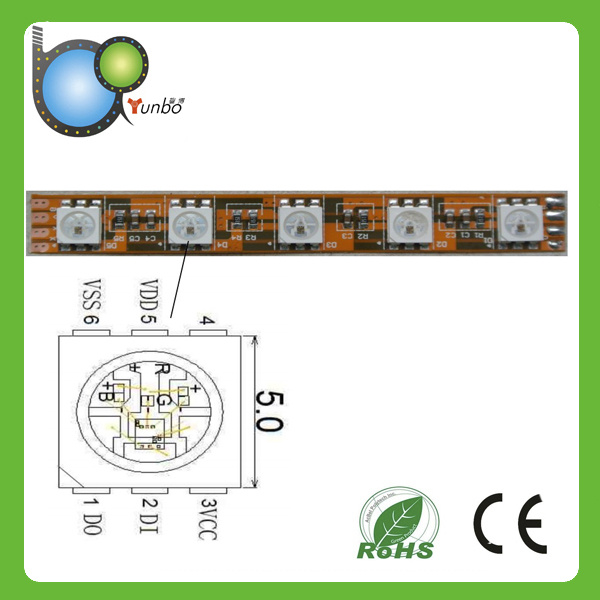

Addressable WS2812 LED Strip Light
Main Features:
The control circuit and the RGB chip are integrated in a 5050 package of components, to form a complete control of pixel
The innernal signal shaping circuit, any one pixel received signal after wave shaping in the output waveform distortion, ensure the line not cumulative
The internal power on reset and reset circuit
Each pixel of the three primary colors can achieve 256 brightness, 16777216 color full color display, scanning frequency of not less than 400HZ/s
Serial concatenation interface, via a signal line to complete the receiving and decoding of data
Any two points in the transfer distance of no more than 5 meters without evidence of any circuit
When the refresh rate of 30 frames / sec, low speed mode cascade of not less than 512 points, high speed of not less than 1024 points
Data transmission speed up to 800kBPS
The color height of the light is consistent, cost effective
Main Application Field:
LED full -color shining word string lightÿ Led full-color moduleÿ LED full-color flexible stripe light and hard stripe lightÿ LED guardrail tube.
LED point light source, LED pixel screen, LED abnormity screen, all kinds of electronic products, electrical equipment Marquee light.
Product Outline:
YB-5050RGB-IC is an intelligently out-controlling LED light source integrated controlling circuit and emitting circuit. The
Outlook is same with LED 5050, each component is a pixel. The Pixel contains intelligent digital interface data latch signal
Shaping amplifier drive circuit inside, high accuracy of the internal oscillator and 12v high voltage programmable constant current
Control part to effectively guarantee the highly consistent pixel light color.
Data protocol adopts the communication method of single zero yards. After the pixel power on reset, DIN end accepts
Data transmission from controller. After the 24 bit first sent extracted by the first pixel, and send to the data latch inside of the
Pixel. The rest data through the internal plastic processing circuit Plastic enlarged through the DO port began to forward to the
Next cascaded pixel. The symbol reduces 24bit after every pixel of the transmission. The pixel adopts automatically reshape
Forwarding technology to make the pixel number of cascade signal transmitted without limit, only limited by signal transmission
Speed requirements.
LED has advantage of low voltage driver, environment protection and energy saving, high brightness, big scattering angle,
Good consistency, low power, long life and so on. The control circuit is integrated on LED to make it much easier, smaller and
Simpler to install.
