Home LED Light Products 600*600mm 48W Square LED Ceiling Light

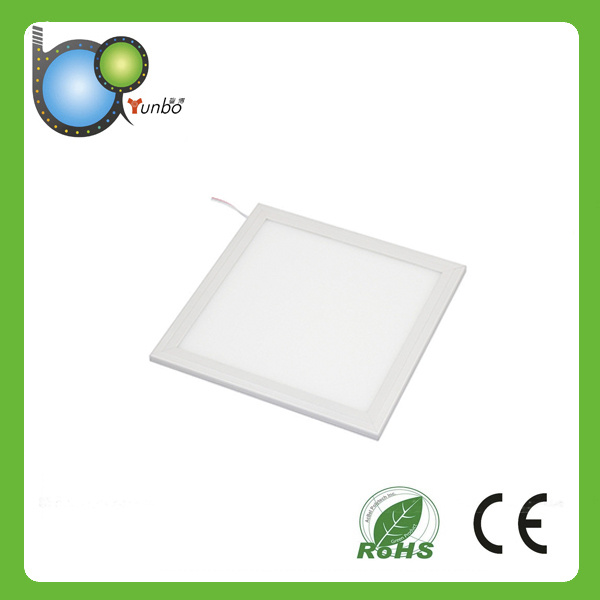

600*600mm 48W Square LED Ceiling Light

600*600mm 48W Square LED Ceiling Light
Price: US $ 15-35/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
600*600mm 48W Square LED Ceiling Light

Short Description:

1. AC85V-265V, 10W-72W
2. Round and square are available
3.3 years warranty
4. CE&RoHS

Features of Square LED Ceiling Light:
1. Adopt Taiwan import Lumenmax SMD LED3014, single luminous flux 11LM
2 light guide plate procurement of imported materials, light rate more than 80%
3. Pure aluminum frame, bright silver processing, good heat dissipation, more upscale appearance
4. Uniform optical effects, without dark space, efficiency > 70LM/W
5. Isolated constant current power supply, wide voltage input, output voltage: DC30-40V, more safer
6. Unique frame design, embedded installation without accessories, more money

Application of Square LED Ceiling Light:

1. Commercial Lighting \Office Lighting \Warehouse Lighting \Supermarket Lighting;
2. IT, Call Centers, Shops and showrooms, Kitchen/pantry, hospitals, hotels, and other public places.

Way to install:
1. Hanging
2. Embeded
3. Ceiling

Note of Square LED Ceiling Light:
1. When installation, try to avoid the minefields, strong magnetic field and high-pressure region.
2. Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3. Installed in a well-ventilated place to ensure appropriate environmental temperature.
4. Using this product, please check the local voltage compliance product requirements.
5. To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6. In case of failures, do not maintenance in private.
Size Model Thickness Wattage LED chip
300*300MM YB-303015-10 15 10 3014/2835
YB-303015-16 15 16 3014/2835
YB-303008-12 8 12 3014/2835
300*600MM YB-306015-20 15 20 3014/2835
YB-306008-20 8 20 3014/2835
300*1200MM YB-301208-36 8 36 3014/2835
600*600MM YB-606015-36 15 36 3014/2835
YB-606008-36 8 36 3014/2835
YB-606008-48 8 48 3014/2835
YB-606010-36 10 36 3014/2835
600*1200MM YB-601208-72 8 72 3014/2835
240MM YB-240-18 20 18 3014/2835
180MM YB-180-12 20 12 3014/2835
Prod Model: YB-606008-48
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 600*600mm
Thickness: 12.5mm
Weight: 3kg
Power: 48W
LED Brand: Epistar
LED Type: SMD3014
Light Source: LED
Appearance: Square
Type: Ceiling
Emitting Color: Warm White
Certification: ISO9001
Housing Material: Acrylic
Voltage: 85V-265V
Dimmable: With Dimmable
Base Material: Aluminium
Beam Angle: 120°
Changzhou Yunbo Electro-optics Tech Co., Ltd has modern business operation and management system, lead by technology and quality, service and marketing centred. We are a scale company focused on energy industry, electricity industry and intelligent control products with R&D, production, sales and service four in one. With abundant strength and rich experience, we provide our clients with lighting cabinet control, intelligent programmable PLC power management, processing control PCB, LED used for advertising exhibition equipment, automatic parking system, automatic ticket system, medical lighting system and industrial controlling products. And We also provide OEM&ODM services.

In long-term production practice, we are strictly with ISO9001: 2008 management system and our products are approved by CE, RoHS. Also we have developed good business relationship with well-known international enterprises, like THE BRIGHT GROUP who provide gaming products for global gaming industry, and Korean LS original from LG and so on.

We truly believe that, with our continuous effort, we will gain mutual benefit, reach a win-win result and March forward hand in hand with all our partners.
