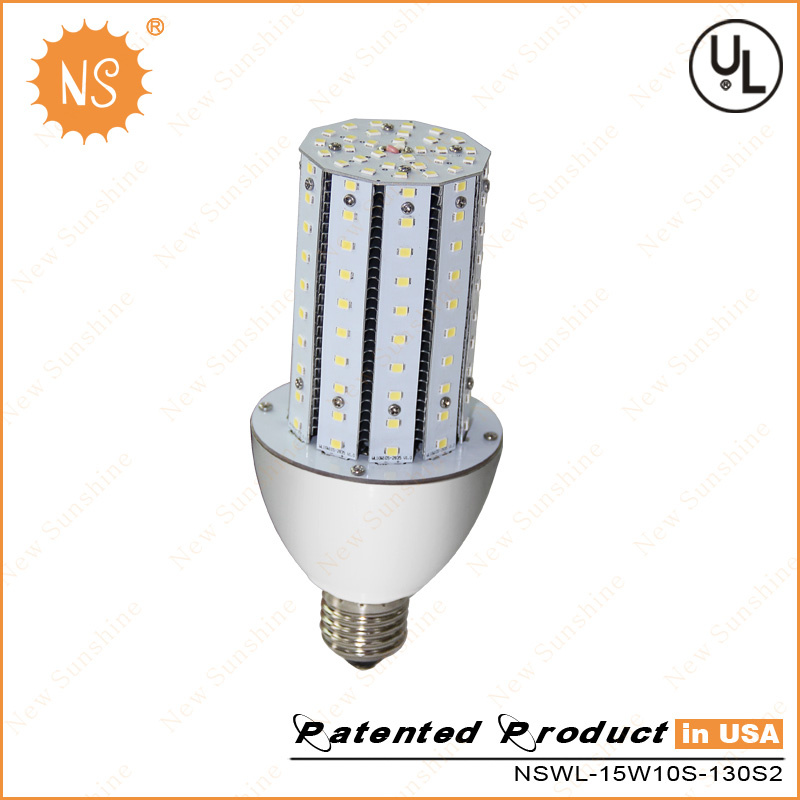

AC100-277V 1800lm 4000K E27 15W LED Corn Light Bulb
Product Information
Part Number: NSWL-15W10S-130S2
Item Weight: N\W: 100g, G\W: 130g
Product Dimensions: Dia48*131mm
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Fin Aluminum
Shape: Corn Round
Wattage: 15watts
Item Package: Quantity 1
Luminous Flux: 1800lm
Certification:UL cUL ETL TUV SAA FCC CE RoHS PSE LM79 LM80
Patent Design: United States and European Union
Technical Details
Eco-Friendly and energy saving
CFL bulb 36W Replacement
Products be free of charge within 6 month of replacement service,3 years warranty for repair parts.
Product Specifications:
1. Lamp Type: LED corn light
2. Base: E27 E26
3. Rating Power(W): 15W
4. Luminous Flux(lm): 1800LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 130PCS, Epistar SMD2835
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 360 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 30000H
13.Waterproof Rating: IP40
Advantage:
1. Energy saving high power LED light to replace the conventional CFL bulb 36W
2. Internal Heat sink
3. Light is soft and uniform, safe to eyes
4. No UV or IR in the beam
5. Cool light, No heat emission
6. Instant start, No flickering, No humming
7. Easy to install and operate
8. Green and eco-friendly without mercury
9. It's major to replace the CFL HPS MH HID with screwed lamp base directly
10. 80% more energy saving compared with conventional street light, CFL, Incandescent light
11. Special surface design with arc, make sure the radiation diameter on the ground is accord with the standards for size
Package details:
1 15W Cold White 6000K LED Corn Lamp Light Bulb
Inner box size:15.5*5.5*5.5cm, G.W.: 130G
Carton size:55*43*36cm ,126PCS/CTN, G.W.: 17.8KG
Notice:
1. Make sure To Remove Or Bypass The Electronic Ballast In The Fixture Before Install The Led Corn Bulb
2. Make Sure To Cut Off The Power Before Install The Led Corn Bulb
3. Gx24q and Gx24d LED Lights such as led corn light series could use in the unventilated fixture in enough space
4. Not suitable for dimmers or electronic switches or remote controls
Rated wattage | 15W |
| Input Voltage | 85-265 VAC (AC100-277V is available) |
| Operationg frequency | 50/60 HZ |
| Rated power factor λ | > 0.95 |
| Power Efficiency | > 0.87 |
| Humidity | < 90% |
| Ambient temperature | -40~45 |
| Base(standard designation) | E26/E27/E39/E40 |
| Replacement convertional lamp power | 35W CFL |
| Output Short Circuit Protection | YES |
| Output Overvoltage protection | YES |
| Temperature protection(Half-power) | 95 |
| Power recovery temperature | 50 |
| Dimmable | NO |
