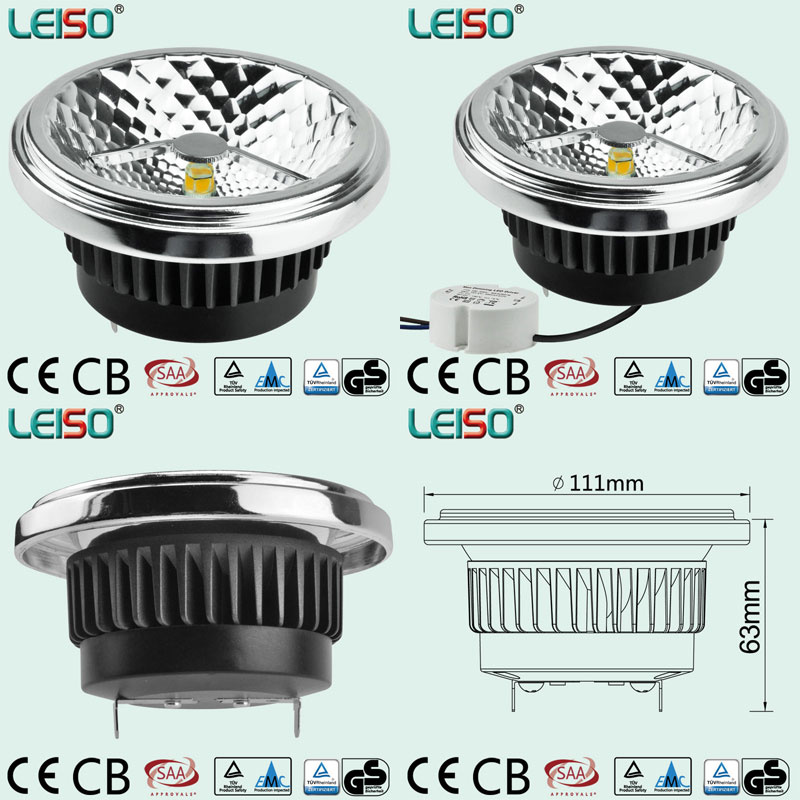

98ra LED AR111 Reflector Cup 12W LED Spotlight AR111 (Ls-S612-G53)

98ra LED AR111 Reflector Cup 12W LED Spotlight AR111 (Ls-S612-G53)
Price: US $ 12.76-14.76/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
98ra LED AR111 Reflector Cup 12W LED Spotlight AR111( Ls-S612-G53)

Power: 15W
Replacement 75W halogen AR111
Input voltage: 100-240V AC 110V /220V AC
CCT: Customized from 1800-2500K, Standard CCT: 2700K, 3000K, 4000K, 5500K
Lumens: 840lm-960Lm
CRI: 80Ra/90Ra/ Customized 95Ra
Beam angel: 24/40 degree
Size: Φ 111*H63 mm
Dimmable: Avialable with external driver or GU10 base
Warranty: 3 years free replacement
Lifespan: 45000hrs

Advange:

1. Adopt patented SCOB light source (stereoscopic chip on board).
2. Unique design makes it different from existing LED Bulbs of public mould.
3. Optically designed reflector keeps the same appearance and light distribution with traditional halogen lamp, which is easily accepted by users.
4. Long lifetime 45000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5. No IR- and UV radiation.
6. Directly replace 75W halogen lamp, saving at least 80% energy.
7. TUV GS, CE, CB, SAA, EMC, ERP and RoHS obtained.
8. Customized color temperature from 1800K, 2200K, 2500K, and standard CCT: 2700K, 3000K, 4000K, 5500K
9: CRI 80 and 90 for choose
Item No.Data sheetPowerLumens (CCT)Product DimensionVoltageDimmablePacking Data
CTN
Qty
CTN
Dimension
Volume weightGross weight
LS-S615-G53-BWW/BW* SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
15WCRI >90, 550 lm (2700K)
CRI >90, 580 lm (3000K)
CRI >90, 600 lm (4000K)
CRI >90, 620 lm (5500K)
Φ111*H63mm12V DC/ACNOT2453x39x28cm11.6kg11kg
LS-S615-G53-A-BWW/BW
LS-S615-G53-ED-BWW/BW* SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
* With External Driver
12WCRI >90, 550 lm (2700K)
CRI >90, 580 lm (3000K)
CRI >90, 600 lm (4000K)
CRI >90, 620 lm (5500K)
Φ111*H63mm100~240V ACNOT2453x39x28cm11.6kg14.74kg
LS-S612-G53-ED-BWWD/BWD 220-240V YES
LS-S612-G53-A-ED-BWW/BW* SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
* With External Driver
12WCRI >90, 550 lm (2700K)
CRI >90, 580 lm (3000K)
CRI >90, 600 lm (4000K)
CRI >90, 620 lm (5500K)
Φ111*H63mm100~240V ACNOT2453x39x28cm11.6kg14.74kg
LS-S612-G53-ED-A-BWWD/BWD 220-240V YES
LS-S612-GU10-BWW/BW* SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* GU10 base
12WCRI >80, 550 lm (2700K)
CRI >80, 580 lm (3000K)
CRI >80, 600 lm (4000K)
CRI >80, 960 lm (5500K)
Φ111*H90.5mm100~240V ACNOT2453x39x28cm11.6kg11.47kg
LS-S612-GU10-BWWD/BWD100-120V  AC
220~240V AC
YES
LS-S615-GU10-A-BWW/BW100~240V ACNOT
LS-S612-GU10-A-BWWD/BWD 100-120V AC
220-240V AC
YES
Prod Model: LS-S612-G53-CWW/CW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Directly Raplace: 50W Tranditional Halogen Lamp
Lumens: 550~620lm
Products Size: Diameter111*H63mm
LED Brand: Gree Chip
Light Source: Scob
CRI: Ra80 or Customized
Cct: 2700k/3000k/4000k/5500k or Customized
Lamp Base: 24/40 Degree
Dimmable: Not
PF: 0.9~0.95
Emitting Color: Full Range
Power: 12W
Base Material: Aluminum
Usage: Decoration
Life: 50000h
Certification: CB
Power Source: AC
Electric Current Type: DC
Input Voltage: 100-240V
LED Chips: CREE
Diffuser: Aluminum
IP Rating: IP20
