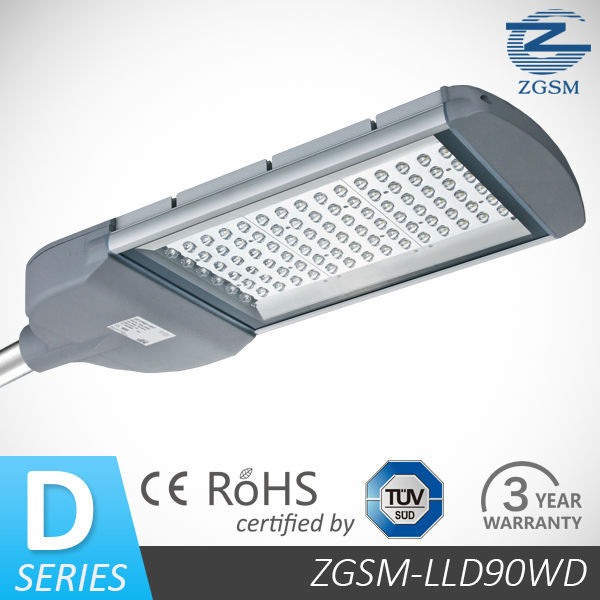

ZGSM D-Series LED Street Lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.
Features:
(1) Long life
(2) Improved visibility
(3) Ease of installation
(4) Significantly less generated heat
(5) More than twice the average life of metal halide and high pressure sodium
(6) High qality and brightness LED light source
(7) Stable and efficient LED driver
(8) Optimal heat sinking performance
(9) Superior optical design
(10) Exclusive appearance design with patents
(11) Significant energy savings
(12) Instant on/off
(13) Maintenance free
(14) Mercury free
(15) Superior light quality
(16) No UV
(17) Simple installation
(18) LED's maintain flux up to 100 lm/W
(19) Wide input: 100 - 240V AC
(20) Resistant to shock and vibration
(21) Waterproof
(22) Temperature compensation technology for long life
(23) Copper free aluminum
Datasheet
| Electrical Specifications |
| Nominal Wattage | 100W |
| Nominal Voltage (AC) | 100-240V, 50/60Hz |
| Nominal Voltage (DC) | 24V |
| Maximum Current (AC) | 1.03A-120V, 0.51A-240V |
| Maximum Current (DC) | 4.63A-24V |
| Optimal Operating Temperature | - 40 ºC to 50 ºC |
| Operating Humidity | 10% to 90% |
| Power Factor (PF) | >0.9 |
| Driver Efficiency | >90% |
| Photometric Specifications |
| Correlated Color Temperature (CCT) | 3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K |
| Lumen Output (3000-4500K) | 8500 lm ( +/- 5% ) |
| Lumen Output (5000-6500K) | 9000 lm ( +/- 5% ) |
| Color Rendering Index (CRI) | ≥75 |
| Mechanical Specifications |
| IP Rating | IP65 |
| Lifetime | 50000 hours |
| Housing | Die-casting Aluminum |
| Heat Raditor | Anodized Aluminum |
| Lens | Toughened Glass |
| Fixture Dimension | 754 x 326 x 109 mm / 29.7 x 12.8 x 4.3 inches |
| Fixture Weight | 10 kg / 22 lbs |
| Aperture Diameter | Φ60 mm / Φ2.4 inches |
| Packing Informations |
| Packing Type | 1 unit / ctn |
| Packing Dimension | 810 x 375 x 155 mm / 31.9 x 14.8 x 6.1 inches |
| Packing Weight | 11 kg / 24.3 lbs |
[Warranty]
3 years Since the date of purchase.
[Warranty Terms]
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ZGSM will provide paid maintenance service by under coditions within warranty.
(1).Failure or damage due to force majeure.
(2).Failure or damage due to transport or unloading.
(3) Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4).Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. ZGSM reserves the right for final explanation of aforesaid terms.
[Caution]
ZGSM will not responsible for any other failure or damage by incorrectly usage.
