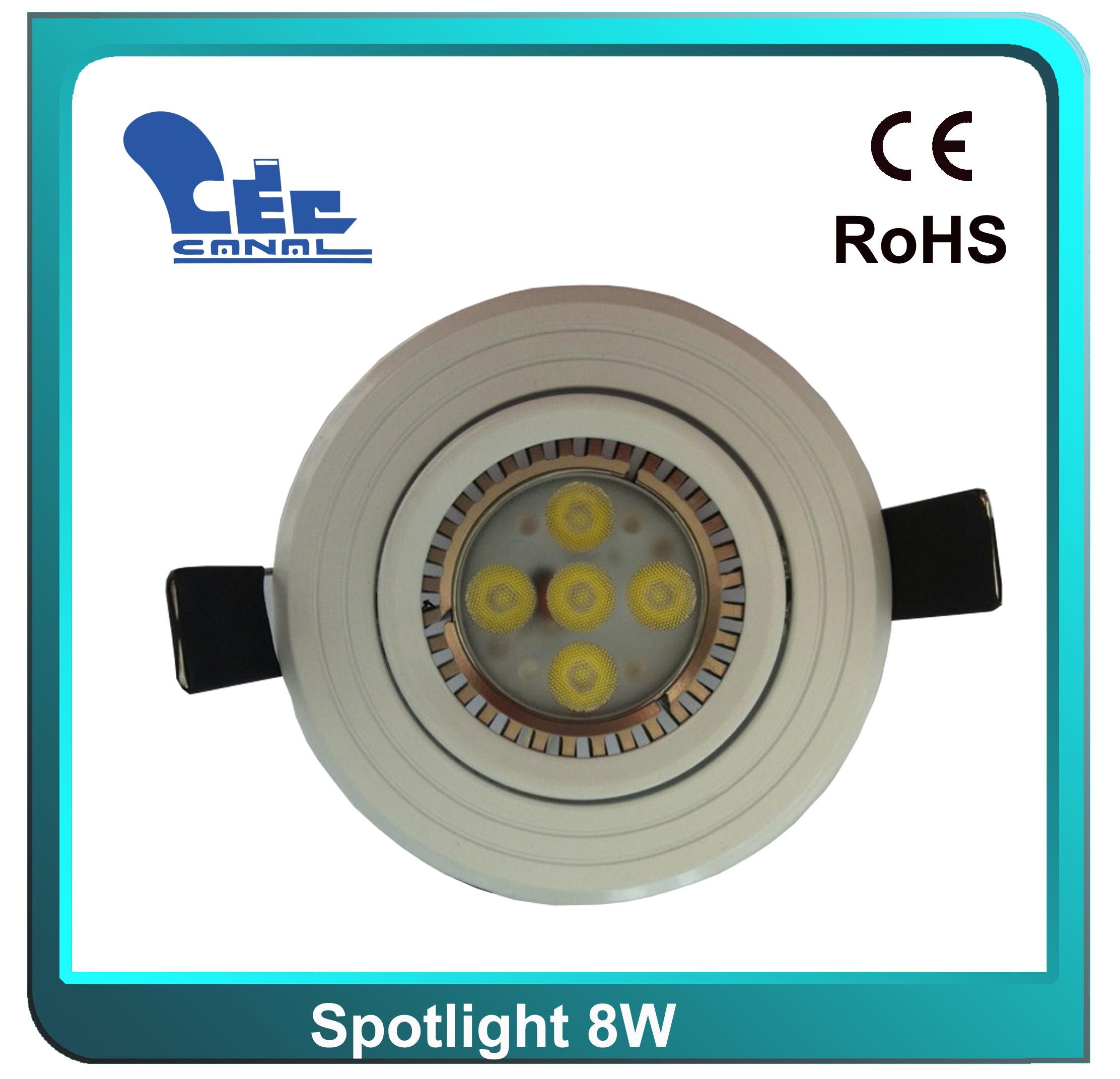

LED down light
1. Model No.: CN-DL-02-08
2. Input Voltage: AC96-265V
3. Frequency: 50/60Hz
4. Input Power: 8W
5. LED type: High power LEDs
6. Luminous Flux: 560-640lm
7. Rendering Index: >75
8. Beam angle: 15deg/25deg/30deg/45deg
9. Power factor: 0.9
10. Working Temperature: -30-+50
11. Housing material: Aluminum &lens
12. Assembly Diameter: 75mm
13. Color Temperature: Warm white 2800-3000K; Pure white 5500-6000K
14. Certificate: CE & RoHS
Products features:
1. Good optical design: Radiating a soft, uniform light with improved even diffusion with no circular appearance.
2. Light casing with high quality aluminum alloy materials is beautiful and simple;
3. No UV, no radiation and environmental protection;
4. In general the life span is more than 35, 000 hours(Light is less than 8 hours a day).
[Application]
Widely used in super market, hotel, coffee house, hank, meeting room, exhibition hall and living house.
The advantages of LED down Light
1. LED downlight housing are adapted high quality aluminum material with very good heat elimination. Indoor use only.
2. Imported high brightness high power LEDs as the light source. The light attenuation is below 5% within 5000 hours.
3. The LED down light lens adopts high transmittance PC materials. The beam angle is 15degree, 25degree, 30degree, 45degree
4. The driver is external constant current power design to ensure the stability of the fixture.
5. Working voltage can be selected: 12V DC or 96-265V AC.
6. Single color of pure white and warm white for option or other colors.
Remarks: (LED down Light )
1. Only use for indoor light
2. Installed in the environment of waterproof and good heat dissipation
3. Avoid touching the heat dissipation cover when the product is working
4. Avoid glaring the illuminant light when the product is working.
Trade Terms:
1. Lead time: Sample order 5-7 days, Formal order: 15-20 days
2. Payment: T/T and Western Union
3. Shipping: By Express, By Air or By Sea
4. Logo: According to your requirement
5. Discounts are offered based on order quantities
6. Minimum Quantity: 10PCS
|
Model No. |
Power |
Size |
LED Quantity |
Assembly Diameter |
Voltage |
Color temperature |
Luminous flux |
|
CN-DL-02-05 |
5W |
2.5” |
3pcs
High power LEDs |
75mm |
AC96-265V |
2800-3000K (Warm white) |
350-450lm |
5500-6000K
(Pure white) |
|
CN-DL-02-08 |
8W |
2.5” |
5pcs
High power LEDs |
75mm |
AC96-265V |
2800-3000K (Warm white) |
560-720lm |
5500-6000K
(Pure white) |
|
CN-DL-02-12 |
12W |
3” |
7pcs
High power LEDs |
95mm |
AC96-265V |
2800-3000K (Warm white) |
840-1080lm |
5500-6000K
(Pure white) |
|
Beam angle: 15 degree/25degree/30degree/45 degree |
Manufacture Experience: 15years |
|
Certificate: CE/ROHS |
Size: 2.5” /3” |
Life: 35, 000Hours;
Power Factor: 0.85 |
Warranty: 2 Years |
|
Color rendering index: 0.8 |
Material: Aluminum+ PC |
|
Trade Terms: FOB/EWX/CIF |
Reflector efficiency: 90% |
|
NON-dimmable |
Delivery: 3-20Days According quantity |
