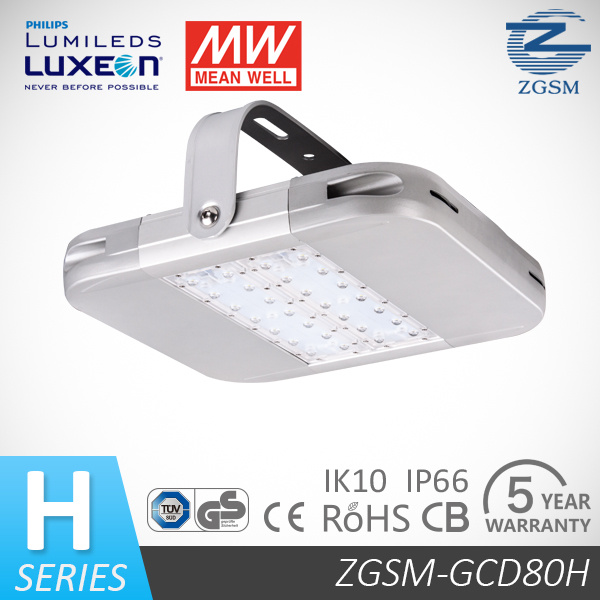

80W High Lumens LED High Bay Light, LED Gas Station Light with 1-10V Dimming
| Price: |
US $ 159-174/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Major advantages of our H Series high bay light:
1. PHILIPS LUXEON® T luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 100, 000 hours operation life.
4. Available for 60°, 90° and 110° beam angle.
5. IK10&IP66.
6. Adjustable mounting bracket.
7. UL, DLC, RoHS, CE, GS, CB certificated.
8. Patent product with 5 patent certificates.
9.5 years Warranty
10. Wide application range, can be applied as industrial Light, canopy light, flood Light, stadium lights, tunnel light, warehouse light, gas station light and so on.
| Specifications |
| Model | ZGSM-GCD80H |
| LED Brand | Philips LUXEON® T |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >100lm/w |
| Lamp Rated Lumen output | 8000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000 5000 or 5700K |
| Photometric Type | 60, 90, 110 degrees |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | '-40ºC~+70ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 60000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, GS, CB, UL, cUL, DLC, LM-79, SAA |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control |
| Warranty | 5 years |
| |
| Packing Details |
| Fixture Dimension | 366 x340 x156 mm |
| Fixture Weight | 4.3 kg /9.5 lbs |
| Packing Dimension | 415 x365 x160 mm |
| Packing Weight | 5.1 kg /11.2 lbs |
| Prod Model: |
ZGSM-GCD80H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lumen Output: |
8000lm(+/-5%) |
| Driver Efficiency: |
> 90% |
| CRI (Ra>): |
Ra >= 75 |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP66 |
| Certification: |
CE, EMC, Energy Star, FCC, GS, RoHS, SAA, Saso, UL |
| Color Temperature: |
4000k, 5000k, 5700k |
| Color: |
Natural White, Warm White, Cool White |
| Lifespan: |
100, 000 |
| Beam Angle: |
60deg; 90deg; and 110deg; |
