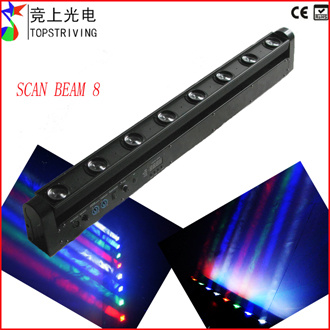

8 PCS high mcd CREE mce RGBW 12W 4 in 1 LED Scan Beam RGBW Stage Scan Beam Light
Feature:
Electronic power supply AC 100-240V 50/60Hz
Full Master/Slave operation in any operational mode,
Electronic Dimming, color strobe effect and long life operation
Equipped with 8 high MCD RGBW 12W 4 in 1 LEDs
0° -270° Beam scanning
Smooth RGBW color mixing
Low heat, Long Life LEDs (100, 000 hrs. )
Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
Beam Angle: 0° Degrees
Uses 13/40 DMX Channels
Linkable via 3-pin XLR cable
ITEM DIMENSION: 108*8*13CM
ITEM WEIGHT: 8.0KGS
DMX MODE A
Thirteen DMX channels:
Channel 1: Motor tilt rotations
Channel 2: Motor running speed from fast to slow
Channel 3: Master dimming
Channel 4: Strobe
Channel 5: Red from small to big brightness(dimming)
Channel 6: Green from small to big brightness(dimming)
Channel 7: Blue from small to big brightness(dimming)
Channel 8: White from small to big brightness(dimming)
Channel 9: Color macros
Channel 10: LED output selections
Channel 11: Preset shows
Channel 12: Preset shows running adjustments from fast to slow
Channel 13: Auto, sound active
DMX MODE B
Forty DMX channels:
Channel 1: Motor tilt rotations
Channel 2: Motor running speed from fast to slow
Channel 3: Master dimming
Channel 4: Strobe
Channel 5: Red 1 from small to big brightness(dimming)
Channel 6: Green 1 from small to big brightness(dimming)
Channel 7: Blue 1 from small to big brightness(dimming)
Channel 8: White 1 from small to big brightness(dimming)
Channel 9: Red 2 from small to big brightness(dimming)
Channel 10: Green 2 from small to big brightness(dimming)
Channel 11: Blue 2 from small to big brightness(dimming)
Channel 12: White 2 from small to big brightness(dimming)
Channel 13: Red 3 from small to big brightness(dimming)
Channel 14: Green 3 from small to big brightness(dimming)
Channel 15: Blue 3 from small to big brightness(dimming)
Channel 16: White 3 from small to big brightness(dimming)
Channel 17channel 35
Channel 36: White 8 from small to big brightness(dimming)
Channel 37: Color macros
Channel 38: Preset shows
Channel 39: Preset shows running adjustments from fast to slow
Channel 40: Tilt running reversely
TECHNICAL SPECIFICATIONS
Power supply: 90-240V AC 50/60Hz
Power consumption: MAX. 100W
Fuse: 250V 3.0A
DMX-control-channels: 10
DMX-512-connection: 3-pin XLR
Number of LED: 8 pcs USA CREE MCE four in one RGBW 12W LEDs
Flash-rate: Max. 20 Hz
ITEM DIMENSION: 1080*80*130MM
ITEM WEIGHT: 8.0KGS
Trade Terms:
1. Payment Terms: By T/T or western union or paypal
2. Delivery time: 40'HQ container within 4 weeks
3. Shipping method: DHL, UPS, FedEX, TNT door to door service, by sea, by air, etc
4. OEM&ODM: Accepted.
5. Packing: Carton packing or fight case optional.
6. MOQ: 10PCS
Our Service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design and put into product without any charges.
3. Promised After-sales Service.
4. Definitely high brightness with good material inside.
5. Customised LED Quantity Design.
We are looking forward to your long term business relationship with us!
|
Delivery time |
about 1 week |
|
Producing time |
15 -20 days |
|
OEM or ODM service |
accept |
|
Payment |
T/T,paypal,Western Union |
|
Warranty time |
Full 2 year |
GUANGZHOU TOPSTRIVING PHOTOELECTRICITY TECHNOLOGY Co., Limited, founded in 2010, is a supplier and manufacturer of professional entertainment effect lightings with a roster of products including, but not limited to, DMX lighting controller, LED applications, effect lightings, yoke lights, lasers, stage lights, foggers, a variety of other accessories.The dedication and commitment to the customers is the foundation of TOPSTRIVING.Our experienced and devoted workers allow us to make finished products that share both the competitive pricing of mass production as well as the quality and individuality of the items.We have a big showroom which offers you the general idea of the products;A well-equipped R&D lab, covering the structuring, electronics, program-writing and optics to instruct and control the whole procedure of developing, testing and mass production of organization.In addition to our standard products we welcome the opportunity to make products to our customers' specifications and demands.We can assist you from design and engineering through production and final packaging and conclude business based on ODM.We are also pleased to offer private labeling and silk-screening prints of our standard product designs for your individual market needs and conduct business based on OEM/ODM/OBM.
