Specification details1. Power: 7W
2. Lumen: CRI >80, 400 lm (2700K), CRI >80, 420 lm (3000K)
CRI >80, 440 lm (4000K), CRI >80, 460 lm (5500K)
CRI >90, 380 lm (2700K), CRI >90, 400 lm (3000K)
CRI >90, 420 lm (4000K).
3. CRI: 80Ra/90Ra Available, CRI 95~98Ra can be customized according to your requirements.
4.2700K/3000K/4000K/5500K available, 1800K/2300K/2500K can be customized
5. Same Bin for same item of same order and different order can be comfired.
6. CCT tolerance can be confirmed within 3% for warm white Color
7. Input Voltagee: 100~240V AC
Advantages and features1. Adopt patented SCOB LED source ( stereoscopic chip on board );
2. Unique reflector design make it different with exsting led bulb of public mould;
3. Optical professional design keeps the same appearance and light distribution with the tradtional halogen lamp, which is accepted by the wide users;
4. Directly replace 50W halogen lamp, energy conservation at least 85% or more;
5. Long lifetime for 35,000 hours, if calculating as 4 hours everyday, its average lifespan can reach more than 23 years;
6. No infrared and ultroviolet radiation;
7. With CE, CB, TUV, GS, EMC, SAA, ERP and RoHS certificate.
8. Warranty for 3 years.

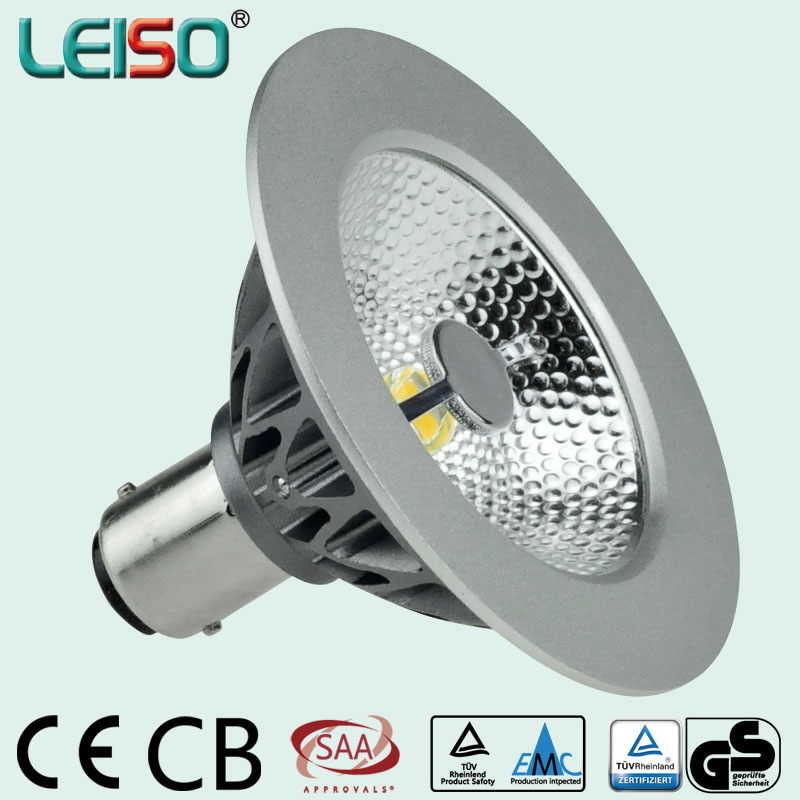

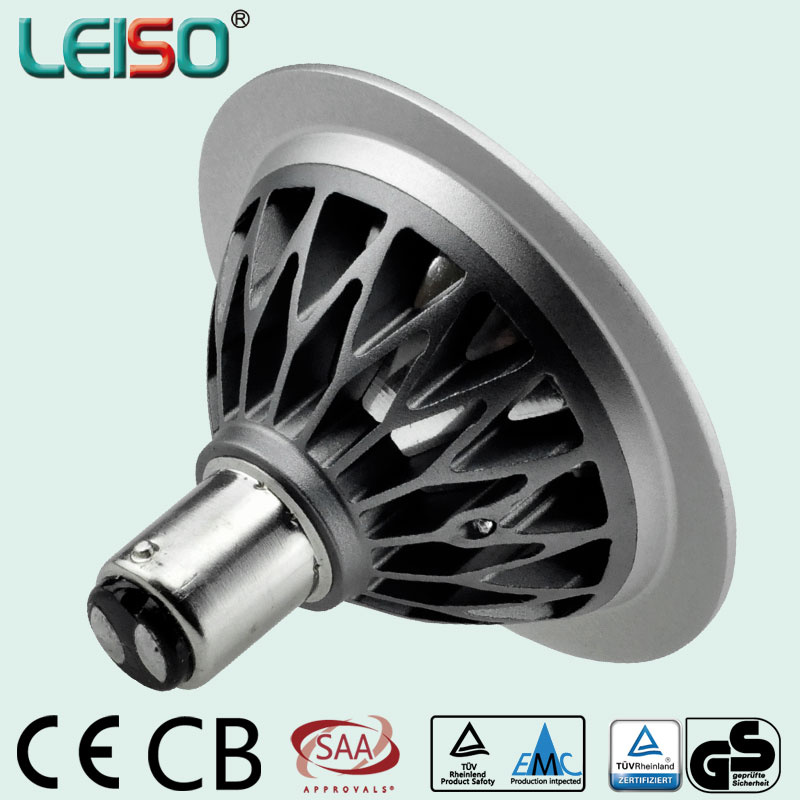

Technical parameters sheet of S607 series 7W SCOB LED AR70
Item No. | Data sheet | Power | Lumens (CCT) | Product
Dimension | Voltage | Dimmable | MOQ | Packing Data |
CTN
Qty | CTN
Dimension | Volume
weight | Gross
weight |
| LS-S607-ED-CWW/CW | * 7W SCOB AR70
* Reflector design
* CREE Chip
* Beam angle : 36°
* Power factor : >0.90
* Base : B15
* External driver only
* Lifetime 35000Hrs | 7W | CRI >80, 400 lm (2700K)
CRI >80, 420 lm (3000K)
CRI >80, 440 lm (4000K)

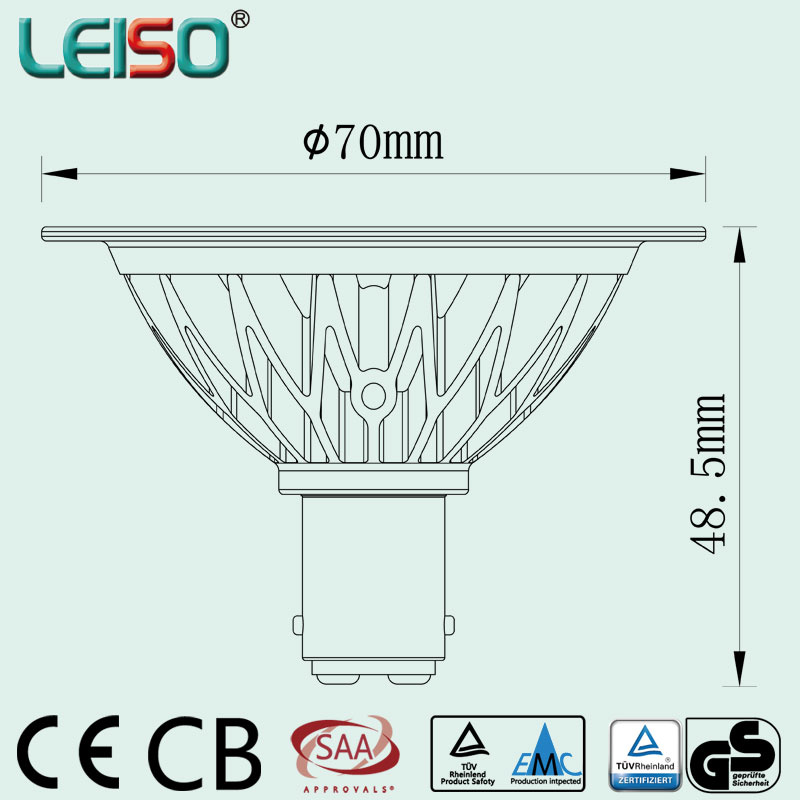

CRI >80, 460 lm (5500K) | Φ70*H48mm | 100~240V AC | YES | 300 | 105 | 53x39x28cm | 11.6kg | 17.5kg |
| LS-S607-A-ED-CWW/CW |
| LS-S607-ED-CWWD/CWD | CRI >90, 380 lm (2700K)
CRI >90, 400 lm (3000K)
CRI >90, 420 lm (4000K) | 220~240V AC | YES | 300 |
| LS-S607-A-ED-CWWD/CWD |
