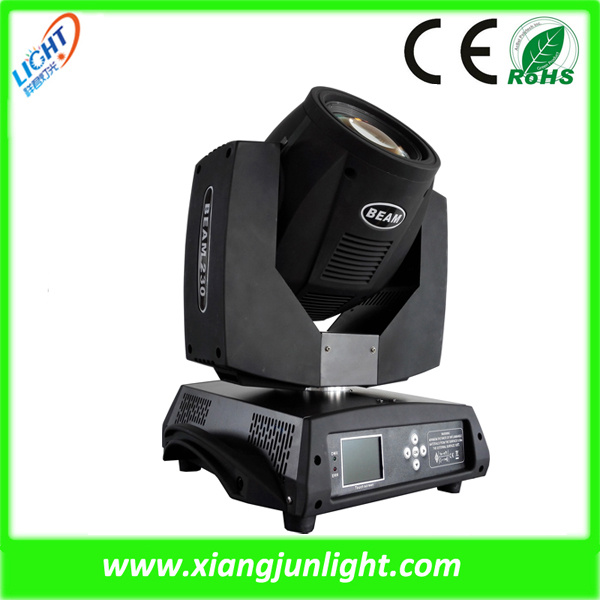

7r Sharpy Stage Light 230W Beam Moving Head for Disco
| Price: |
US $ 300-320/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Original OSRAM SIRIUS HRI 230W
Features: With Photoelectric reset system,auto reset for mis-operation
3-phase motor,fast and very quiet and stable
Original Sunon fans,noise below 38FB
Double track design,no stuck for color wheel
Prism: 24-facet prism (prism zooming)
Bent design for colour wheel which decrease the lamp temperature and prolong lifetime
With Voltage stabilizer inside, can work with unstable input volt.
Lens: High quality optical lens, double film coated.Light source:Lamp: OSRAM SIRIUS HRI 7R 230W
Electronic ballast
Input volt: 110-240V/50/60Hz
Luminou Flux: 120,000LM at 10M distance,60000Lumen at 20 meters
Colour temperature: 8000KLighting Effect: Gobo wheel: 17gobos + blank (Gobos can be customized)
Colour wheel: 14 + blank
Prism: 16-facet prism
Strobe: speed adjustable
Pan scan:540°(8/16bit) electric correction
Tilt scan:270°(8/16bit) electric correction
Control mode:DMX512, Master-slave, Sound active and Auto0-100% mechanical dimming,mechanical strobe and speedable strobe,
support Strobe macro function.
Beam Angle: 0~3°
Control programming:Channel: 16/20CH
Control mode:DMX512, Master-slave, Sound active and AutoPacking: Net.W:16.5KG
G.W (Paper CTN): 17.5kgs
G.W(Flight case/1pc):35kgs
G.W(Flight case/2pcs)63kgs
Paper CTN Size:450*410*520MM
Flight case/1pc:460*380*71MM
Flight case/2pcs:680*460*780MM
Accessaries: quick lock 2pcs
clamp/hook: 2pcs
safety rope: 1pc
signal wire: 1pc
power wire: 1pc
user manual:1pc
Many different power plugs for different countries and resigons
Welcome to contact us at Jack Liu

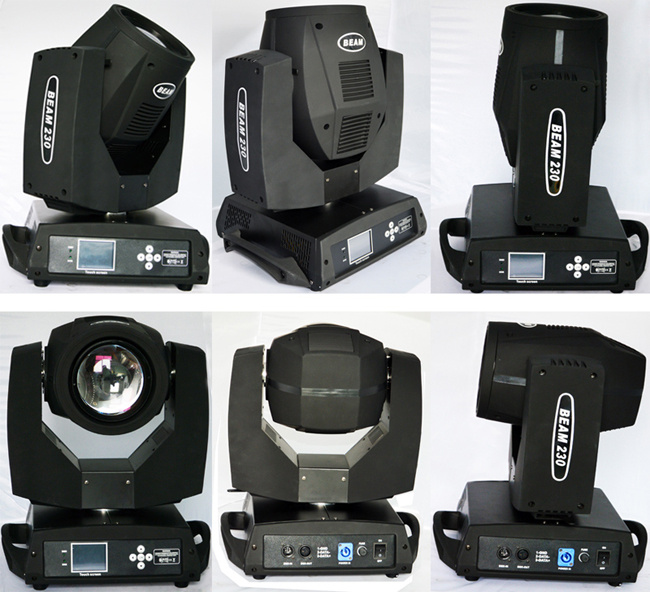

www.xiangjunlight.comProduct Photos:
Lighting Effect:
Production:
| DMX CHANNEL LIST |
| Standard Mode | Expand Mode | Channel | DMX value | Description |
| 1 |
| Color | 0-255 |
|
| 2 |
| Strobe | 0-255 |
|
| 3 |
| Dimmer | 0-255 | Dark to bright |
| 4 |
| Stactic Gobo | 0-255 |
|
| 5 |
| Prism | 0-255 |
|
| 6 |
| Prism rotation | 0-255 |
|
| 7 |
| Effect | 0-255 | Effect movement |
| 8 |
| Frost | 0-255 | frost |
| 9 |
| Focus | 0-255 | focus |
| 10 |
| Pan | 0-255 |
|
| 11 |
| Pan fine | 0-255 |
|
| 12 |
| Tilt | 0-255 |
|
| 13 |
| Tilt fine | 0-255 |
|
| 14 |
| Function | 0-255 | PAN/TILT FUNCTION.(FAST) |
| 15 |
| RESET | 0-255 |
|
| 16 |
| Lamp | 0-255 | No function |
| 17 Pan/Tilt speed |
| 0-255 | Pan - Tilt - (Pan fine - Tilt fine) |
| 18 Colour time |
| 0-255 | Colour wheel |
| 19 Beam time |
| 0-255 | Dimmer - Frost - Prism |
| 20. Gobo time |
| 0-255 | Static Gobo |
FAQ:
Q1,Are you a factory or trading company?
A,We are factory with more than 8 years in lighting industry and we are
SGS varified manufactuer.
Q2,How can I trust you?
A,Please kindly check our business license and certificate issued by Bureau Veritas from home page.
Q3,How can I get a good quotation?
A,Please email your interested products,more information we get,better price we provide.
Your quantity,your country,your requirement,quantity,shipping way,your package or any other requirement will help to give you correct quotation.
Q4,How about the delivery date?
A,For sample,we always have products in stock,we can send it once get your payment.For small order,it takes 5-15 working days.For container,it takes 3-4 weeks depend on what's products.
Q5,How about the shipping way?
A,By door-door express(such as DHL,UPS,TNT,EMS),by air freight(airport to airport),by sea(port-port).
Q6,How about payment terms?
A,We recommend T/T,Western Union
Paypal is available but takes extra handling charges.
Q7,How about the MOQ?
A,Depends on the products,sample is available.
Q8,How could you promise the quality?
A,First,we have inspections both for material and complete products,during the assembly,our QC team will take care of the whole procedure,
Second,we have 1 year warranty for all our products,if you have any problem,please help to provide picture or video,we will provide free parts for any quality problem.We provide life-long after-sale service for our clients.
Q9,Where is your factory located? How can I visit there?
A,Our factory is located in Guangzhou City, Guangdong Province, China, about 20 minutes away from Baiyun Airport,welcome to visit!Q10: Dose the unit with any certificate here?
A: yeah, our product all ready passed CE, ROHS, TUV, CCC, etc.
Q11: What's the warranty ?
A: Our warranty is one year , we will provide free spare part to replace if any of them not working in
one year .
| Prod Model: |
XJ-230B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lumen: |
120000lm at 10 Meters 60000lm at 20 Meters |
| Prism: |
16-Facet Prism |
| Lamp: |
Original Osram or Yodn |
| Colour: |
14 Colour + Blank |
| Gobo: |
17 Gobos + Blank |
| Warranty: |
1 Year |
| Application: |
Stage,Disco, DJ, Night Club, Bar, Studio, Concert |
| Light Source: |
Gas Discharge Bulb |
| Material: |
Aluminum Alloy |
| Emitting Color: |
Changeable |
| Control Channel: |
16CH |
| Strobe: |
Adjustable Speed Strobe |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Control Mode: |
DMX512, Master-Slave, Sound Active and Auto |
| Voltage: |
AC90-240V |
Established in 2014, XiangJun Lighting Equipment Co., Ltd have been in stage ligthing field For 2 years. Our factory in Guangzhou covers an area of 1500 square meters. We make Beam moving head light, LED moving head light, PAR Light, Dance floor, follow spot, console and other accessaries. Our products are CE and RoHS certified. We have a strict regulation on quality control from material purchase, mass production and warehouse storage. We provide OEM for many big brands in China and overseas market.
As an export-oriented manufacturer, we work hard to achieve three points as below
1. Focus on market, we spend much time on up-to-date technology, latest functions and designs of stage lighting aroundworld. We Analyze customers' inquiries and requirements every month and Find out what products are popular and easy-to-use on different markets. Eventually, provide our customers the right and most cost effective product.
2. Focus on quality, Many customers pay high price for low quality and Many pay high price for high quality. What we do is provide high quality at reasonable price which make our customers pay less and gain more. We have strict regulation on quality control from material purchase, production and warehouse storage.
3. Focus on Service, For customers, beside price and quality, delivery time and after-sale service are very concerned. We have strong production capacity which can guarantee the delivery time.
