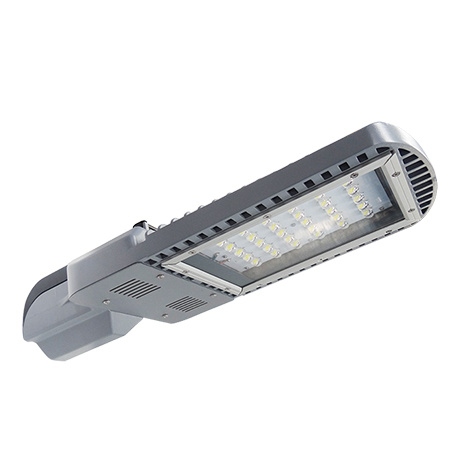

78W outdoor CE Approved Excellent and Eco-friendly Energy Saving High Power LED Street Light that can replace a 200W Metal Halide Lamp
CE Approved Excellent and Eco-friendly Energy Saving High Power LED Street Light that can replace a 400W Metal Halide Lamp, substantial electricity savings, long lifespan, 5 years warranty, soft start function\dimming function, automatic clean function, tool-free installation.
Applicant: Landscaping buildings, bridges, squares, sports centers, tunnels, garden, subways, undergrounds, factories, clubs, hotels, stages, parks, parking lots, plazas and art galleries
Main Features:
Main Features :
1. Thin and light fashionable appearance without big and heavy shield
2. High quality LEDs, super bright , high light efficiency:>90lm/W
3. Unique all-in-one structure for severe environment lighting
4. CE approvalled, IP65 Waterproof, Three Years Warranty
5. Attractive return on investment with superior performance
6. 12 or 24V DC version is also available for solar power and other application
We also have more other style available (37W-210W). Different Beam angle for available. Epistar chips, also Can be CREE LED as customized order.
Special features:
Electrical parameters:
Input voltage: 100-240V AC, 50-60Hz
Power factor: ≥0.95
Driver efficacy: ≥90%
Power: 78W
LED quantity: 60pcs
Lamp efficacy: ≥80lm/W
Luminous flux: 48000lm
IP class: IP65
Optical parameters:
CCT: 3,000-6,000K
CRI: ≥70Ra
Recommended height: 6-12m
Average illumination: ≥25lux
Illumination eveness: ≥0.85
Lateral beam angle: 140
Longitudinal beam angle: 60
Ambient temperature: -40 to 50°C
Carton size: 605X270X145mm
Quantity/carton: 1pc
Gross weight: 4kg
Advantages:
Light-weight and compact all-in-one structure, Excellent thermal control
The industry's highest level of high efficacy
50,000 hours lifespan
Soft start function\dimming function for illumination control
Lightweight design, fast install and easy maintains
Limited ultraviolet light, limited attraction of insects
IP65-High waterproof, anti-dust and anti-vibration level for severe environment
Automatic clean function
Function:
More cooling fins in the back to increase heat area effectively, fast heat dissipation to delay long life of LEDs quality
Be able to operate in high temperature,moist environment and other severe environment like that, and won't be corroded
can be regulated as required angle
Green environmental protection, with no lead or mercury
Lifespan is more than 50,000 hours, saving cost on changing lights
Strictly inspected and passed CE, CQC certifications
Primary Competitive Advantages:
*Unique technical innovation design
*Patent shape design with magnesium alloy
*Adopts high light efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use semi LED from Taiwan, could use LG or Cree if customers need
*Uniformly distributed light and color, very even light distribution and high uniformity, no glare to eyes
*Reliable qualities,use MEANWELL power supply,Compliant with CE standard
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Energy-saving, Substantial energy-saving more than 50% compared with HPS lamp
*Easily and fast install, idea replacement of traditional lamp
*High-power factor to minimize the harmonic distortion: PF: more than 95%
BS606001
Parameter | Value |
| Power Consumption | 78W |
| Input Voltage | 100-240V AC ( applied for 95-265V ) |
| Frequency | 50-60Hz ( applied for 47-63 Hz ) |
| Lamp Efficiency ( % ) | ≥90% |
| Color Temperature ( K ) | 3000K-6000K |
| Junction Temperature ( TJ )) | < 65 |
| Color Rendering Index ( CRI ) | > 70 |
| Light Effect | 80lm/w |
| Beam Angle | 150° X60° |
| IP Grade | IP65 |
| Working Environment | Temperature:-30 -55 Humidity10-90%RH(25 ) |
| Storage Temperature | -40 -60 |
| Lifespan | 50000Hs |
| Material | Die-casting |
| Shell | toughened glass |
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
