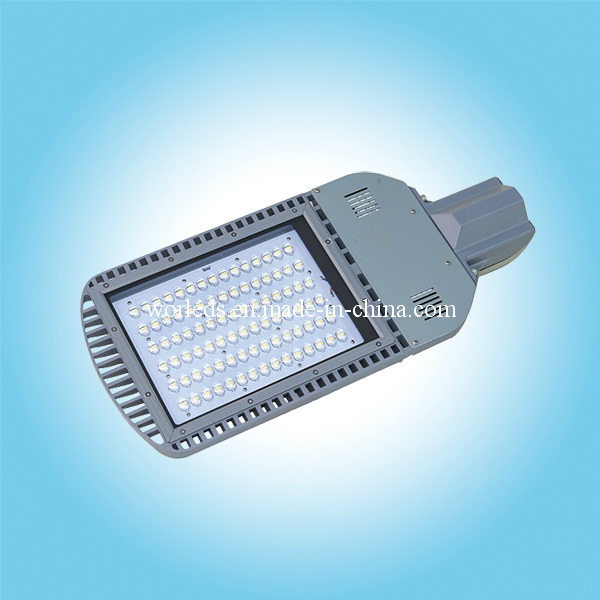

Competitive 108W LED Street Light for severe environment
Features:
Wuhan Sunshine BRT New Energy's LED Street light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate bright light with LEDs to perfectly replacing the traditional HPS fixtures.
Applicant: Highways, Pedestrian, park and outdoor light project.
Typical Application: highway, main street, normal road, laneway, bridge, park, yard, plant area, plaza, garden, and parking area.
Primary Competitive Advantages:
* LED: choose high-quality LED, good monochromaticity, soft light, and high light efficiency
* Power supply: choose world brand power supply, the main features are: high efficiency, long lifespan, constant current and voltage, which can make sure the light's safety work
* Heat sink: uses high-thermal conductivity Aluminum and magnesium alloys heatsink, sound heat dissipation design, which is not only the premise of the long lifespan, but also the indemnification of the stable working of the system
* Structure Design:
Patented product with thin and light fashionable appearance
Housing shell and cooling section all-in-one
It reduces light weight to reduce post load
Decreasing windage resistance helps to increase safety
Using high-thermal conductivity aluminum heatsink makes good heat dissipation
Used for high thermal conductivity aluminum as main body, nice stretch, helical heatsink and increase heat area effectively
Appearance using oxidation process, corrosion-resistant and heat-dissipation
Using secondary optics technology makes the light efficiency more than 90%
With imported LED chip, high brightness and low heat, it saves 50% energy than HPS
Green environmental protection, with no lead or mercury
Lifespan is more than 50,000 hours, saving cost on changing lights
Strictly inspected and passed CE certifications
Main Features:
*Unique secondary optical design
*Patent shape design, automatic clean function
*Adopts high light efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use semi LED from Taiwan, could use Cree if customers need
*Uniformly distributed light and color,Very even light distribution and high uniformity, no glare to eyes
*High light efficiency
*Excellent thermal control
*Reliable qualities,use MEANWELL power supply,Compliant with CE standard
*-50-60°C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Accurate constant-current driving with current fluctuation less than 1mA
*Energy-saving, Substantial energy-saving more than 50% compared with HID lamp
environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan,Offer three to five years warranty
*High-power factor to minimize the harmonic distortion: High power factor: more than 95%
*Patent modularity structure design, easy installation and maintenance
*Low maintenance costs
Special features:
Electrical parameters:
Input voltage: 100-240V AC, 50-60Hz
Power factor: ≥0.95
Driver efficacy: ≥90%
Power: 105W
LED quantity: 90pcs
Lamp efficacy: ≥80lm/W
Luminous flux: 10000lm
IP class: IP65
Optical parameters:
CCT: 3,000-6,000K
CRI: ≥70Ra
Recommended height: 6-9m
Average illumination: ≥25lux
Illumination eveness: ≥0.85
Lateral beam angle: 140
Longitudinal beam angle: 60
Ambient temperature: -40 to 50°C
Product size: 681X300X101mm
Carton size: 740X350X145mm
Quantity/carton: 1pc
Gross weight: 6.1kg
| Parameter | Value |
| Power Consumption | 105W |
| Input Voltage | 100-240V AC ( applied for 95-265V ) |
| Frequency | 50-60Hz ( applied for 47-63 Hz ) |
| Lamp Efficiency ( % ) | ≥90% |
| Color Temperature ( K ) | 3000K-6000K |
| Junction Temperature ( TJ )) | < 65 |
| Color Rendering Index ( CRI ) | > 70 |
| Light Effect | 80lm/w |
| Beam Angle | 150° X60° |
| IP Grade | IP65 |
| Working Environment | Temperature:-30 -55 Humidity10-90%RH(25 ) |
| Storage Temperature | -40 -60 |
| Lifespan | 50000Hs |
| Material | Die-casting |
| Shell | toughened glass |
Product Dimension | 546X222X101mm |
| Pakeage Dimension | 605X270X145 mm |
| Net Weight | 6.1KG |
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
