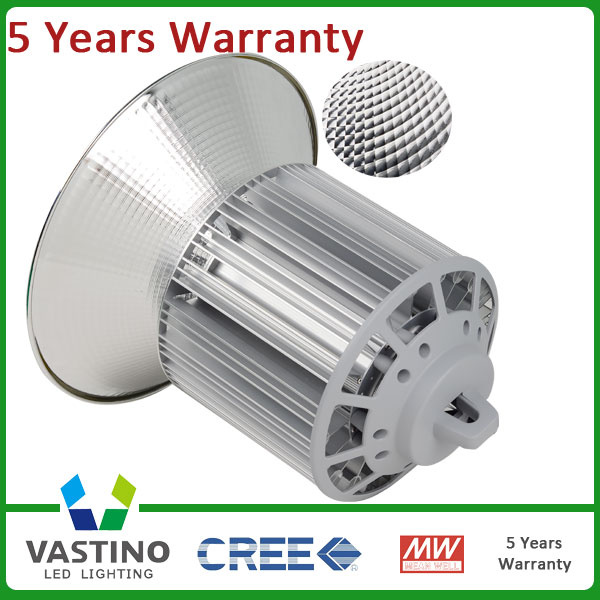

Product Name: High Bay Light
Meanwell Driver
Cree/Osram/Sungsam Chips
PCcooler Housing
5 years warranty
Product Item:
| Power | Temp color | Item |
| 150W | Pure white | VTL-H3B-150 |
| Nutral white |
| Warm white |
Attention:The parameters of this specification are subject to change without prior notice, please consult our sales representative before ordering.
Product Introduction:
The"sunflower" shape radiator,can increase the cooling area and speed up the heat conduction, which helps to extend the service life of the LED lamps; The interation of the die-casting molded power box is closely contacted with the radiator, which helps to increase the radiator area and also ensure the lamps' safety; The different beam angle of the reflector can meet the requirements of different customers at different places; The LED source adopts Bridgelux with low light decay rate and long service life .
Product Features:
The lamp adopts single high power light source, by the unique design of single chip integrated single-mode groups light source, The adopted Bridgelux high brightness semiconductor wafer is of high thermal conductivity, low light decay, high CRI and no ghosting, etc;
Wide input voltage and constant current LED driver. The brightness of lamps and service life is not affected by grid fluctuation;
Unique design of heat dissipation body in harmony with the electrical box, and effectively conduct heat diffusion, thereby reducing the lamp body temperature, ensure the service life of the light source and power supply, the body surface of anodized anti-corrosion treatment, compact structure and beautiful.
Green. No ultraviolet, infrared, thermal radiation and mercury pollution ;
As cold light source, LED lights will not make the goods for produce fade phenomenon ;
Using high-quality reflectors, downy light, High light efficiency ; z
High CRI make the light true and clear and have different color temp ;
Fast response, no stroboscopic, low glare ;
Solid-state light source, strong shock resistance, convenient for transportation and installation, high safety ;
Product Application
Apply to workshop, warehouse, highway toll station, gas station, large supermarket, exhibition hall, gymnasium and other lighting places.
Product Picture
| Location | 45°reflector | 90°reflector | 120°reflector |
| H | 240mm | 185mm | 135mm |
| D | 415mm | 500mm | 500mm |
Product Parameters
1. Basic Parameters
| Item | Chips | Body color | Size(mm) | IP Grade | Material |
| VTL-H3B-150 | 1PCS*150W | Silver,Black | 346 | IP54 | die-cast aluminum |
2. Electrical Parameters
| Item | Power(W) | Input Voltage(V) | Efficiency(%) | Power Factor |
| VTL-H3B-150 | 150W | AC100-240V | ≥91 | >0.95 |
3. Optical Parameters
| Item | Temp Color(K) | Lumen(lm) | Beam Angel(Degree) | CRI |
| VTL-H3B-150 | 6000-6500 | 12000±10% | 45°/90°/120° | >70 |
| 4000-4500 |
| 2800-3200 |
Light Distribution Curve
Storage Environment
| Storage Temp | -20ºC~+55ºC |
| Working Temp | -20ºC~+45ºC(25ºC Working Best ) |
| Working Humid | 40-90%RH |
Working Life-span And Wrranty
| Working Life-span | 30000 Hours ( Light Decay <30%) |
| Wrranty | 2 Years |
Packing Info
| Item | Packing Material | Box Size (mm) | Carton Size (mm) | Quantity
(PCS) | Gross Weight(per Piece)(KG) | Gross Weight(per carton)(KG) |
| VTL-H3B-150 | Box
K=K
CartonK=K | W290*L290*H385 | Body:W600*L310*H410 | 2 | Body:9.95 | ≈22 |
45° reflector :W500*L500*H470
90° reflector :W575*L560*H420
120° reflector :W575*L560*H285 | 10 | 45°reflector:0.49
90° reflector :0.63
120° reflector :0.52 | 45° reflector :6
90° reflector :8
120° reflector :7 |
Packing Picture
Instructions:
Before installation, Please read carefully the product specification to make sure the operating environment conforming to the conditions.
Turn off the switch before connecting to the power.
Lamps and lanterns should be installed by a qualified electrician, wiring connection should conforming to the IEE electrical standards or national standards ;
This product is suitable for indoor use ;
Please do not make the lamp working under the condition of voltage too high or too low for a long time, which will affect the function of normal use and products' lifespan ;
Do not install the lamp inside flammable objects, Keep off the lamp with thermal insulation material at any time.
Cut off the power when cleaning, replacing, or installing the lamp to ensure the personal safety;
In case malfunction (such as self-extinguishing or flashing) happenes, please check if the connecting plug and power supply working normal, replace with a new light if there is no problem with the connecting plug and power supply;
Cut off the power before cleaning the lamp! Please do not use any chemical agent, it may discoloration or damage the lamps. Use the soft cloth with soapsuds first, then clean up with dry cloth.
Do not take apart the product yourself, to avoid damage any internal components. Take apart any components may void the warranty.
Why choose Vastino?
1, We specialize in outdoorl lights and do it best.
2, We have our own r&d team, can solve all your problems and provide you technology support.
3, We have stock, efficient delivery speed, place the order today, shipping today.
4, We have 15000 SQR Meters Workshop and 500 Workers.
5, We were established in 2003. For 12 years LED Light expierence and good quality Warranty.
Warranty term
1, Under the terms of this warranty, if the products have a failure occurs
under normal usage within warranty period, VastinoLight will provide free
new products based on the proof-documents
2, If Failure or damage due to incorrect operation, wire connection, or
anything other do not follow our instruction, VastinoLight will provide
paidmaintains within warranty period.
