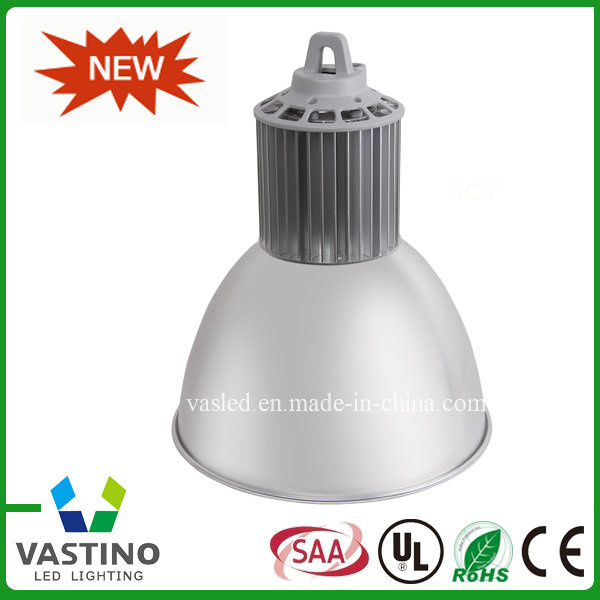

Bridgelux 80W Industrial Lamp LED High Bay Light
Product Overview:
Efficient and integrated LED light source technology: imported chip package (single 1-3W series), long life, low light decline.
Low thermal resistance packaging technology: LED light source to achieve the new LED light source directly encapsulated into an integrated cooling module packaging technology, ceramic packaging technology of silver solid crystal and liquid metal packaging technology.
Efficient average temperature cooling technology: modular cooling, independently with each other, if a single module is damage, other module is work normally.
Heat lamp housing assembly techniques: structural bolted together to achieve multiple modules can be flexibly assembled replace traditional lighting power required
Hihg power LED street light is high luminous efficiency, long lifespan, energy-saving is excellent,widely useing in in fast-track, main roads, secondary roads, factories road lighting, public lighting, garden lighting and other places.
Throughing the combination of LED light source module and heat sink achieved a variety of combinations of LED lamps series, the main components of the LED lamps have a standardized, universal key technology
Efficient heat dissipation materials technology: high thermal conductivity thermal aluminum radiator zigzag structure, the larger cooling area, the faster of heat dissipation.
Product Features:
Lumen Efficiency: High lumen efficiency,Compared with traditional lamps, can save 60% - 80% of the electricity bill.
Led lighting sourse:Using high power 1-3w led lighting sourse, No ultraviolet, infrared, thermal radiation and mercury pollution, and using high quality PMMA lens.
Light failure:LED packaging technology integrated thermal and light fades directly to solve the problem completely, the light distribution of high power 1-3w is more uniform.
Heat dissipation: The shell of lamp contact air with wide area, that is accelerating the air convection, which is make the cooling better.
Product Picture
Product Parameters
1,Basic Parameters
| Model | LED Light Sourse | Lamp Color | Size(mm) | Lamp Holder | Shell Material | IP Grade |
| YSST-10038-001 | 90PCS*1-3W(3 module) | L530*W315*H95mm | gray | ADC12+PMMA | IP65 | D65 |
| YSST-15048-001 | 120PCS*1-3W(4module) | L615*W315*H95mm |
| YSST-20058-001 | 150PCS*1-3W(5module) | L700*W315*H95mm |
2,Electrical Parameters
| Model | Power(W) | Input Voltage(V) | Conversion Efficiency(%) | Power Factor |
| YSST-10038-001 | 100W | AC100-240V 50-60Hz | >90 | >0.95 |
| YSST-15048-001 | 150W | >92 |
| YSST-20058-001 | 200W | >93 |
3,Optical Parameters
| Model | Color Temperature (K) | Lumen Flux(lm) | Lux(6m/8m/10m/12m) | Beam Angle(Degree) | CRI |
| YSST-10038-001 | 6000-6500 4000-4500
2800-3200 | 11000±10% | 89/50/32/22 Lux | 90*135° | >68 |
| YSST-15048-001 | 6000-6500 4000-4500
2800-3200 | 16000±10% | 134/75/48/33 Lux |
| YSST-20058-001 | 6000-6500 4000-4500
2800-3200 | 21000±10% | 179/101/65/45 Lux |
Storage Environment
| Storage Temp | -20ºC~+55ºC |
| Working Temp | -20ºC~+45ºC(25ºC Working Best) |
| Working Humid | 40-90%RH |
Working Life-span And Wrranty
| Working Life-span | 30000 Hours(Light Decay <30%) |
| Wrranty | 3Years |
Packing Info
| Item | Packing Material | Box Size (mm) | Quantity
(PCS) | Gross Weight(per Piece)(KG) | Gross Weight(per carton)(KG) |
| YSST-10038-001 | Box K=K |
| 1 | 6.8±5% |
|
| YSST-15048-001 |
| 7.8±5% |
|
| YSST-20058-001 |
| 9.0±5% |
|
Instructions:
Before installation, Please read carefully the product specification to make sure the operating environment conforming to the conditions.
Turn off the switch before connecting to the power.
Lamps and lanterns should be installed by a qualified electrician, wiring connection should conforming to the IEE electrical standards or national standards ;
This product is suitable for indoor use ;
Please do not make the lamp working under the condition of voltage too high or too low for a long time, which will affect the function of normal use and products' lifespan ;
Do not install the lamp inside flammable objects, Keep off the lamp with thermal insulation material at any time.
Cut off the power when cleaning, replacing, or installing the lamp to ensure the personal safety;
In case malfunction (such as self-extinguishing or flashing) happenes, please check if the connecting plug and power supply working normal, replace with a new light if there is no problem with the connecting plug and power supply;
Cut off the power before cleaning the lamp! Please do not use any chemical agent, it may discoloration or damage the lamps. Use the soft cloth with soapsuds first, then clean up with dry cloth.
Do not take apart the product yourself, to avoid damage any internal components. Take apart any components may void the warranty.
