Advantages:
1. Interated modular design. Can be widely used for flood light, high bay, high pole, tunnel light, and street light.
2. Wide borosilicate glass lens optioanl. 7/15/31/56/95/132/180 degree beam angle. 96% transmittance.
3. Patent thermal dissipation technology. TJ temperature is around 70-80C on 100w-500w COB chip. 0 light decay in 6000 hours.
4. IP65-68 high grade protection.
5. Lux reachs to long distance.
Features:
- Symmetric optic pattern (Beam angle: 7.15.31.56.95.132.180 degree).
- Light distribution and uniformity. Low light is invalid.
- Design in durable and long lifespan COB LED source.
- Patent in Vapor Chamber and quick cooling thermal system.
- Over-heat and over-voltage protection designs.
- High power factor design (>0.95).
- Long life and save maintenance cost.
Thermal design: Adopt high-tech VC(Vampor chamber) thermal design.substrate Chip T is 30°C lower than C. substrate,less heat resistance between chip and heat sink,lower junction temperature.
For more information: please feel free to contact us. Thanks!
Application:
Widely used in outdoor and indoor occasions as factories, basements, warehouses, stadiums, parking
Description

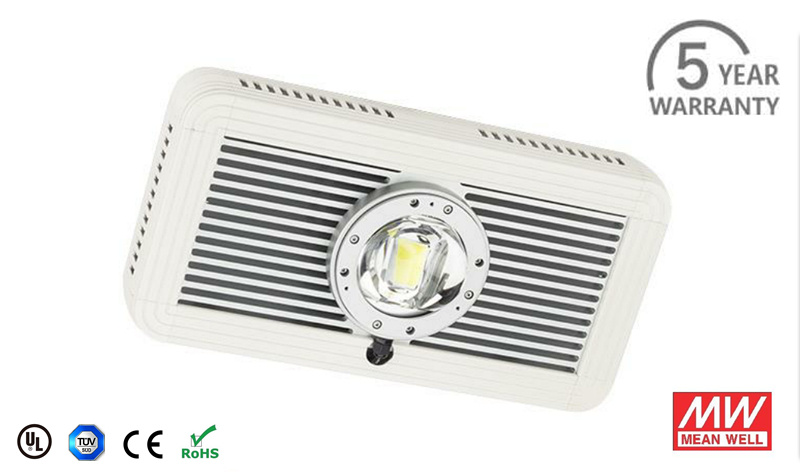

60w COB High Bay light
Physical
Dimension
290(L) x 230(W) x 188(H) mm
Weight
4.6kg(Including power)
Housing
Aluminum alloy
Optical
Beam Angle
7,15°,56°,95°,98°,132°,180
LED light Lumens(Cold test)
6085±0.5% lm typ. for 5700K
LED light Lumens(Thermal Balance)
5700±0.5% lm typ. for 5700K
CRI
>70 typ. for 5700K
LEDs
Chip on Board
Electrical
Power Input
100~240Vac
Power Consumption
60±10% watt
LED Current
Constant current mode
Temperature
Storage Temperature
-40ºC~80ºC
Operation Temperature
-40ºC~50ºC
Others
Ingress Protection Rating
IP65 (Power), IP67 (Light)
Founded in 2010, Deli Lighting Limited, located in Shenzhen, is specialized in research and development, production, sales as one of professional LED indoor and outdoor ligihting high-tech manufacturer. Our major products include: Spotlight, tube light, panel light, flood light, high bay light, and street light etc. All of the products of independent intellectual property right, with mold design, fashionable, variety complete, for the guests needs of custom-made, and provide OEM, ODM.
Our products can fullymeet the European and American national standards in the following aspect: Illumniance, uniformity of illuminance, security, water-proof, dust-proof etc. Our company holds several patented technologies, and has fully implementd the International management system. All the LEDs have passed the CE, RoHS, FCC certifications. And our t8 tube, panel, high bay light and street light have passed UL. Our LED products have been widely used in various lighting areas, and exported to Europe and America, Middle East, Southeast Asia and other regions.
We always adhere to the principle of "integrity-based, customer-orientated, quality first, continuous improvement" to the best products and service to our customers. It' S our dream to bring healthy and environment-friendly LED lighting products to every family.
We sincerely invite new and old customers to Deli, Deli is eager to work with you to built our bright future together.
