Specifications

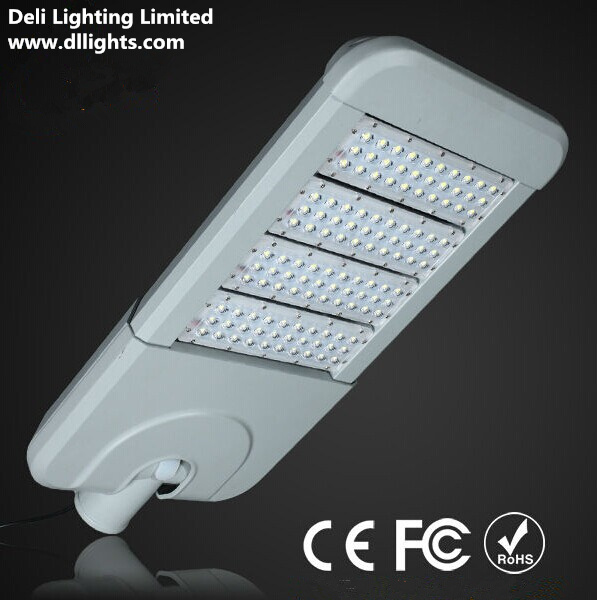

LED street light
1. Waterproof driver
2. CE/RoHS/FCC/EMC/LVD approved
3. Epstar/Cree/Bridgelux chip and mean well driver are available.
30/40/50/60/70/80/90/100/110W LED street light are available.
Model: LS3060
Input Voltage: AC90-264V 50/60Hz
Dimension: 572× 350× 95(mm)
Lighting Source: 60pcs
Power Consumption: 60W
Color Temperature: WW(2800~3300K), NW(4000~4500K), CW(6000~6500K)
Luminosity: ≥ 5800lm
CRI(Ra): >70
Beam Angle: 60°
Work Temperature: -25° C~45° C
Material: Alu+Glass
IP Grade: IP65
Lifespan (LED): ≥ 50, 000hrs (70% Lumen Maintenance)
Lumen Attenuation: <5% @ 5, 000hrs
Packing Dimension: L600*W380*T110mm
LED STREET LIGHT DETAILS:
1. All adopt imported LED chip.
2. Lumen efficiency of leds can be 115-125Lm/W.
3. Passed CE, RoHS, FCC, EMC, LVD certifications.
4. We have patent on the design.
5.3 years warranty for Mean Well driver, 2 years for CE driver, 5 years for LED chip.
6. Emitting colors available: Warm white, pure white, cool white, red, yellow, green, blue etc.
FEATURES:
1)Die casting aluminum alloy housing, electrostatic spraying treatment, coating withstand high temperature, acid & alkali resistance and anti-aging
2)Arc-shaped heat sink, self-cleaning ability improved by residue including dust easily carry away with rainfall
3)Installation angle adjustable, horizontal and vertical installation available
4)Independent optical system for each LED, light transmittance over 93%, high lamp luminous efficacy
APPLICATION:
1. City streets and roads
2. Pavements
3. Squares
4. Schools
5. Parks
6. Yards
7. Inhabitancy area
8. Factories
QUALITY CONTROL
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours'lighting. Then after it is cool we again test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.
DELIVERY TIME
- 1-3 working days for sample order, 10-12 workings for bulk order, depend on Q'ty.
- Can send order via DHL, UPS, Fedex, and TNT.
DHL: 3-4 working days.
UPS: 4-5 working days.
Fedex: 5-6 working days.
PAYMENT TERM
- Payment: T/T in advanced, 50% deposit, 50% balance paid before shipping.
- Production lead time: 10 working days for 4000-5000 pcs.
- Discounts are offered based on order quantities.
- Western Union and Papal are available for sample order.
OUR SERVICES
- Any of your questions can be replied in 24 hours by well-trained.
- OEM available, it's our pleasure to help the customer design and manufacture new products.
- Warranty: 3 year, we can repair or replace a new one during this period.
Model |
LS3060 |
Input Voltage |
AC90-264V 50/60Hz |
Dimension |
L572*W350*H95mm |
Lighting Source |
60pcs bridgelux LEDs |
Power Consumption |
60W |
Color Temperature |
WW(2700-3300k) |
NW(4000-4500k) |
CW(6000-6500k) |
Luminous flux |
5800m |
|
|
CRI ( Ra ) |
>70 |
Beam Angle |
60° |
Work Temperature |
-25°C ~ +50°C |
Material |
Alu + Stalinite/tempered glass |
GW |
10kg |
NW |
KG |
Cap ends |
/ |
Lifespan (LED) |
≥50,000hrs (70% Lumen Maintenance) |
IP Rating |
IP65 |
Lumen Attenuation |
<5% @ 5,000hrs |
Packing Dimension |
L68*W38*H11cm |
