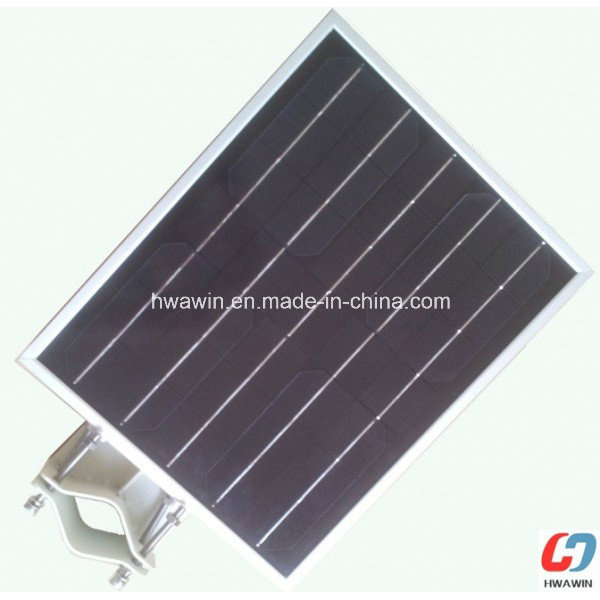

6W All in One Integrated Solar LED Garden Street Light
Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
Integrated Solar Garden Light(6W) |
Model: HW-206B |
Solar panel |
Max Power |
18v 12w(high efficiency imported silicon solar cell) |
Life Time |
25 years |
Battery |
Type |
Solar energy battery 12V/6Ah |
Life Time |
5 years |
Led lamp(with sensor)
|
Max Power |
12v 6w |
Led chip brand |
Epistar from Taiwan with high brightness |
Lumen(LM) |
600-660lm |
Life Time |
50000 hours |
Pole |
Material |
iron Q235 |
Diameter |
φ35mm |
Weight |
2.8KG |
Length |
Adjustable |
Metal spray pain, surface of fluorocarbon spray paint |
Lamps material of main |
aluminium Alloy |
Charge time |
6 hours(by sun) |
Discharge time |
8 hours(full power) |
24 hours (half power) |
Certificate |
CE/ROHS/IP65 |
Warranty period |
2 years |
Packing& Weight |
Product/Packing Size |
420*265*50mm/475*320*125mm |
Product/Packing Weight |
4.15kg / 4.9kg |
Packing Box |
neutral |
Carton Size |
520*W350*H570MM |
Quantity/Carton |
4 sets/carton |
GW. for Carton |
19.25kg |
Packs Containers |
20GP |
1112 sets |
40GP |
2780 sets |
Hwawin Solar Technology Co., Ltd. is the key member of Hwawin Group, dedicated to the R&D, manufacture and international trade of solar modules, solar street lights, solar garden lights and other solar products since 2002. At present, we have our own plants in Zhangjiagang and Yangzhou City.
Our best competitive products:
Solar Street Lights with 5M-12M street light pole and 15W-100W super bright LED street lamps; Solar Garden Lights with 2.5M-4M light pole and 5W-15W solar garden lamps; Polycrystalline and monocrystalline solar panel 10-300Wp; 10W-120W LED Lamp, Solar Battery Buried Box,
MPPT Solar Charge Controllers, PMW Intelligent Solar Controllers with LED Drivers; Solar Road Studs, Solar Brick Lights.
The Environment Protection Equipments from Hwawin Industrial Group mainly include Road Sweeper and Floor Scrubbers:
Our Road Sweepers are powered by electricity from batteries, with Walk Behind type and Ride on Type. The Electric Road Sweeper, Electric Street Sweeper adopts automatically cleaning system for the suction and sweeping. The electric road sweepers are mainly used for university, residential property, factory, workshop and square. Both indoor and outdoor cleaning.
Our Electric Walk behind Floor Scrubber and Electric Ride on Floor Scrubbers can fit all ground of the business environment, paint ground, concrete and ceramic tile ground. Besides, it can provide excellent cleaning performance for workshop, storage, logistics center, supermarket, hospital and so on.
Overseas Exploration and Popularity:
We successfully sell our solar lighting products and environment protection equipments to overseas markets such as the USA, UK, Spain, Greece, Norway, Belgium, France, Portugal, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Singapore, Philippines, Nigeria, Congo, Tunisia etc.
For the Future:
With advanced manufacturing & testing equipments, our company is growing better and better. We hope to cooperate with more partners, distributors, agents, road builders, contractors, project business men to develop more business to create prosperous win-win partnerships. OEM is available.
