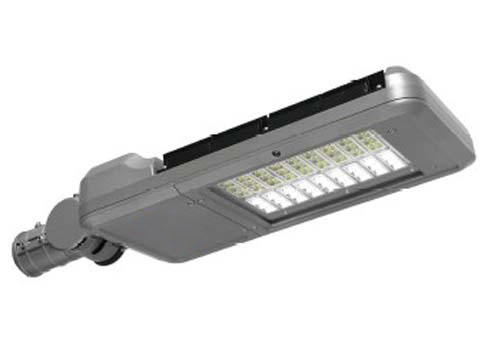

60W LED street light/road light(can be combined with 12V/24V solar energy system, using 54PCS 1W high power ROSRAM orTAIWAN EDISON LED. Luminous flux: 4150lm, CRI> 74, Power factor> 0.95, Total harmonic distortion< 20%, weight: 9KG, size: 754x280x110mm, IP65, lifespan: 30000~50000hrs.
The light performance and lighting effect on the road is similar to a HPS 150W, and recommended to be installed at a height of 6 to 7 meters.
Application: Mainly used for garden or sub-main road illuminating.
Features and Advantages
1. Be provided with many patents and independent intellectual properties and many advanced technologies integrate to manufacture LED light.
2. The main part of the light use high pressure die-casting aluminium. It is resistible to wallop and corrosion.
3. The radiator adopts tensile aluminium treat with special processing technique and ensures excellent radiation performance through special treatment and design.
4. High efficiency light distribution technology, high light distribution, high luminous efficiency, above 95% light utilizaion rate.
5. The diffuser is made of high-power toughened glass with light transmittance of as high as 95%. It may prevent glare and ultraviolet radiation.
6. The lamps and lanterns are treated with strict test process, ensuring the quality of lamps and lanterns.
|
Model Number |
EL-JRA1-60 |
|
Input Voltage |
AC100~240( 12VDC/24VDC also available for solar systen) |
|
Efficiency of light illuminous flux |
>95% |
|
Power factor |
>0.95 |
|
LED Quantity |
54pcs |
|
Led Consumption |
59w |
|
Total lamp consumption |
67w |
|
Frequency |
50~60HZ |
|
Lamp’s flux |
4150lm (Tj=25C) |
|
Lamp’s Efficiency (%) |
>80% |
|
Color Temperature |
Pure White: 5,000~7,000k; |
|
Color Index(CRI) |
Ra>70 |
|
Light Source |
1watt high power OSRAM OR TAIWAN EDISON LED module |
|
Light Distribution Curve/Beam Pattern |
Batty wing light distribution |
|
Junction Temperature(Tj) |
<65 C ( Ta=25 C) |
|
Lamp termperature(Tj) |
<50 C ( Ta=25 C) |
|
Working Temperature |
-25 ~ 50 C |
|
Working Humidity |
10%~90% |
|
Working Life |
>30,000 Hrs |
|
Net Weight |
9Kgs |
|
IP Rating |
IP65 |
|
Installation pipe diameter |
48mm or 60mm |
|
Installation height suggested |
6-7m |
