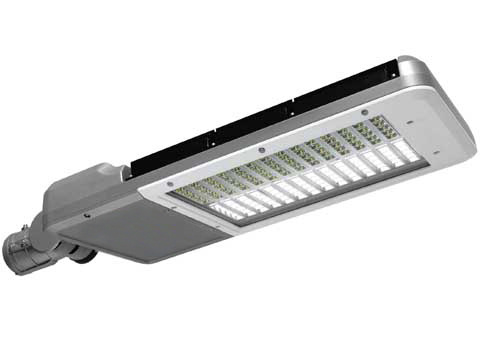

160W LED street light/road light,using 140pcs 1W high power ROSRAM orTAIWAN EDISON LED. Luminous flux:10390lm, CRI>74,Power factor>0.95,Total harmonic distortion<20%, weight:17KG,size:985x360x120mm,IP65,lifespan:30000~50000hrs
The light performance and lighting effect on the road is similar to a HPS 400W, and the recommend installation height is 11 to 12 meters.
Application: Mainly used for highway or urban main road illuminating.
Features and Advantages
1. Be provided with many patents and independent intellectual properties and many advanced technologies integrate to manufacture LED light.
2. The main part of the light use high pressure die-casting aluminium. It is resistible to wallop and corrosion.
3. The radiator adopts tensile aluminium treat with special processing technique and ensures excellent radiation performance through special treatment and design.
4. High efficiency light distribution technology, high light distribution, high luminous efficiency, above 95% light utilizaion rate.
5. The diffuser is made of high-power toughened glass with light transmittance of as high as 95%. It may prevent glare and ultraviolet radiation.
6. The lamps and lanterns are treated with strict test process, ensuring the quality of lamps and lanterns.
| Model Number | EL-JRA1-160 |
| Input Voltage | AC100~240( 12VDC/24VDC also available for solar systen) |
| Efficiency of light illuminous flux | >95% |
| Power factor | >0.95 |
| LED Quantity | 140pcs |
| Led Consumption | 157w |
| Total lamp consumption | 173w |
| Frequency | 50~60HZ |
| Lamp’s flux | 10390lm (Tj=25C) |
| Lamp’s Efficiency (%) | >80% |
| Color Temperature | Pure White: 5,000~7,000k; |
| Color Index(CRI) | Ra>70 |
| Light Source | 1watt high power OSRAM OR TAIWAN EDISON LED module |
| Light Distribution Curve/Beam Pattern | Batty wing light distribution |
| Junction Temperature(Tj) | <65 C ( Ta=25 C) |
| Lamp termperature(Tj) | <50 C ( Ta=25 C) |
| Working Temperature | -25 ~ 50 C |
| Working Humidity | 10%~90% |
| Working Life | >30,000 Hrs |
| Net Weight | 17Kgs |
| IP Rating | IP65 |
| Installation pipe diameter | 60mm or 76mm |
| Installation height suggested | 11-12m |
Established in the year of 2005, We arespecialized in manufacturing a wide range of solar refrigerator /freezer products and solar car fridge, which popular used on cars, trucks, boats, ships and with all other DC Power source, even supplied by solar power to use at home.
Our company has devoted to solar refrigerator for six years and our product has expand to a wide range.
Generally, we have:
1. Solar refrigerator from 90L, 118L, 142L, 158L, 176L, 188L, 208L.
2. DC Compressor freezer as 90L, 138L, 188L, 238L 318lL,
3, Solar Car Fridge as 12L, 15L, 20L, 30L, 36L, 45L, 55L, 60L, 70L, 80L,
The advantages of our solar refrigerator as following:
1. High quality products as obtain CE, RoHS, GS, SAA certificate,
2. Widely used on boats, ships, trucks, cars and at home supplied by solar power,
3. Low power consumption, strong cooling performance and environmental friendly.
With 5000 square meters factory working area, more than 50 skilled works, and 10 talented engineers, our monthly production capacity is reaching 30, 000 PCS with mixing items.
Our products are now selling mainly to Europe, Australia, South East Asia, South America, and Africa.
Welcome to contact us and experience the fantasy of solar refrigerator.
