LED High Bay Light
With strong abiliby for explosion proof light, Nibbe also has some non-explosion proof light, such as LED Flood Light, LED Hay Bay Light, LED Street Light. Our Flood light has a power range from 10W-400W.
Features
1 Superbright SMD top LED.
2 Available colors: red/green/blue/yellow/pure white/warm white/RGB
3 Operating low voltage (12V DC) like solar cell charged batteries for human safety. No threat of high-voltage electrocution
4 Customized lengths and LED quantities are available
5 No dark space and with 120° viewing angle and the linear lighting can be used in different places according to your detailed requirement
6 No ultraviolet and infrared radiation, low heat-release, long lifespan for 50,000 hours
7 Compact size. LEDs evenly arranged on PCB board. Homogeneous light.
8 For waterproof version, vacuum diffusion technique a very thin layer of deposited coating to IP68 waterproof standard, not affecting the LED brightness or color
9 With special connector and clip for fixing
10 Accessories and connected wires with a perfect and humanistic way
11 Sealed way: against dust with PVC
12 Luminous body of very high intensity, large viewing angle, good quality and stability
13 Base made of aluminum. Major reduction in power costs. No RF interference and no buzzing noise.
14 Adoption of high quality aluminum alloy, aluminum substrate as heat dispersion material guarantee the stability and high efficiency of LED, and effectively reduce its brightness degradation in the process of application
15 Energy-saving and environmental conservation, long lifespan
16 Solid-state, high shock resistant, strong packaging, convenient to transportation
LED Flood LightingPrimary Competitive Advantages
Green Product, Guarantee/Warranty International Approvals Military Specifications Price, Product Features, Product Performance, On time Prompt Delivery, Quality, Approvals, Reputation, Service, Small Orders Accepted

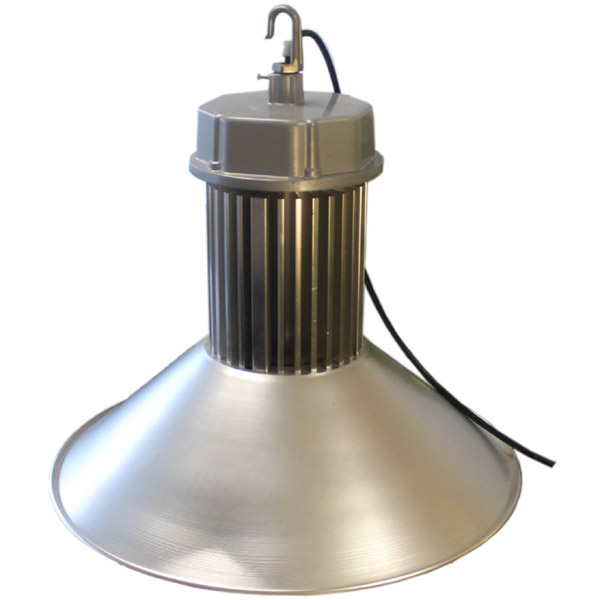

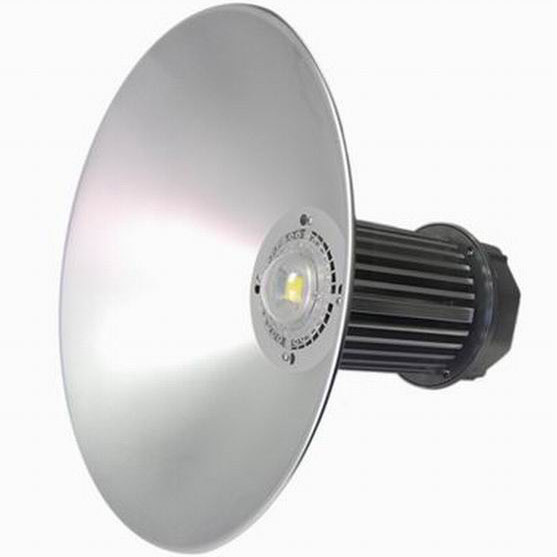

MODEL:NB-IL01
POWER:60W/80W/100W
Features:
We import LED from top international LED suppliers American Bridgelux and use mean well driver.
LED light is energy conservative, environmental-friendly, green and longevous. It can save more than 50% of energy than high voltage sodium lamp and the working life is more than 10 years.
We use high heat conductive aluminum alloy as the body material which helps extend the working life of the light.
We use no-imaging secondary optical lens of high light transmittance.
The driver of power use universal ac voltage input, so the lamp can be put on the original lamppost, which saves the cost of construction and wire arrangement.
There is no harmful substance such as lead and mercury. The products are green and environmental friendly. There is no heat radiation and ultraviolet rays from the light.
Application:
1. Applied to weak acid, weak base, salty, ammoniac and other kind of corrosion places.
2. Applied to watery, dusty, humid environment.

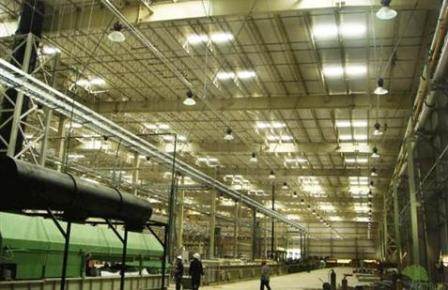

3. Can be use as landscape lighting, walkway lighting, amusement park lighting, architectural wall washing, illuminate signs, illuminate pathways, illuminate recreation areas, etc.
|
Parameter |
Value |
|
Power Consumption |
60W/80W/100W |
|
Input Voltage |
220V AC ( applied for 95-265V ) |
|
Frequency |
50Hz ( applied for 47-63 Hz ) |
|
Lamp Efficiency ( % ) |
≥90% |
|
Color Temperature ( K ) |
Warm white:2700-4000K pure white:5000-6500K |
|
Junction Temperature ( TJ )) |
< 65 |
|
Color Rendering Index ( CRI ) |
Ra 70 |
|
Light Effect |
80lm/w |
|
Beam Angle |
60 ° |
|
IP Grade |
IP65 |
|
Working Environment |
Temperature:-30 -55 Humidity10-90%RH(25 ) |
|
Storage Temperature |
-40 -60 |
|
Lifespan |
50000Hs |
|
Material |
Aluminum Alloy |
|
Dimension |
different power, different length |
