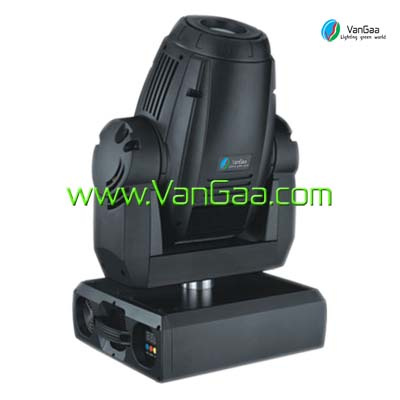

·This martin style 575W Moving Head Spot Light is very popular in the world. It has two gobo wheels. It's cheap and high quality, has very good stage effect. It's suitable for the stage performance, entertainment, KTV, bar, plaza, party and other entertainment areas and commercial places.
Features
·8 main colors adding 8 mixed colors, achieving high speed single way rainbow and scrolling effect;
·Mechanical linear DIMMER and 1~10 times/s high speed STROBE effect
·Horizontal 540degree and vertical 270degree scanning range, smooth scanning action and accurate orientation;
·Precise adjustment on horizontal and vertical position;
·Precise speed adjustment on horizontal and vertical position;
·Stopper function on the rotating effect wheel and position moving;
·5 fixing elegant GOBO (4 fixing GOBO+1 glass+1white);
·5 rotating elegant GOBO (3 stainless rotating GOBO +1 glass+1white);
·Pattern internal light rotating function, freely adjusting fast, low speed, clockwise and anticlockwise;
·GOBO position adjustment;
·Automatic focusing function;
·Double magnifier, color temperature effect;
·4 convection cooling-fan, optimize internal air duct way, heat elimination rapidly;
·Built-in over heat protection and high voltage protection;
·Compatible with DMX 512 international digital signal;
·According to various kinds of safety standards, IP20 protect grades. The cable accords to the CE20/22 standard.
Specifications
·Input power: AC110~240V, 50/60Hz
·Power consumption: 680W
·Light sources: HMI575W lamp
·Control Signal: DMX-512
·DMX channels: 16CH
·Gobo wheel: 4 fixed gobos + 1white
·Whirl gobo wheel: 5 rotating gobos + 1white
·Pan: 540degree, tilt: 270degree
With your support and trust, in order to protect your interest and provide you with better and higher-quality service, we guarantee as followings:
All products have 1+4 Customer Service
One Year equipment warranty: the warranty period because of the quality of equipment warranty period.
Four Years beyond the warranty period: the maintenance, repair, continuous training, supply of the spare parts. Service charge: subject to conditions. The spare parts are sufficient to meet the needs of the users for five years.
|
DMX CHANNEL |
CHANNEL FUNCTION |
|
CH1 |
Iris |
|
CH2 |
Color wheel 1 |
|
CH3 |
Color wheel 2 |
|
CH4 |
Shutter/Strobe/Reset |
|
CH5 |
Pan |
|
CH6 |
Tilt |
|
CH7 |
Prism |
|
CH8 |
Prism rotation |
|
CH9 |
X/Y Speed |
|
CH10 |
Gobo wheel |
|
CH11 |
Whirl gobo wheel |
|
CH12 |
Gobo wheel rotation |
|
CH13 |
Pan fine |
|
CH14 |
Tilt fine |
|
CH15 |
Electronic focus |
|
CH16 |
Reset |
