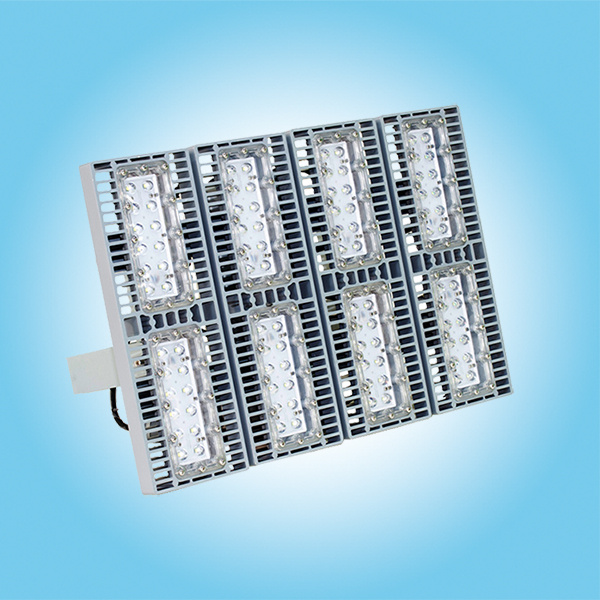

530W High Power CREE LED High Mast outdoor Light (BTZ 220/530 55 Y W)
Feature:
The updated high power LED modular series takes high-thermal conductivity Aluminum and magnesium alloys into super integrated all-in-one cooling fixture with radiator fins on the back and bypass louver around. It's optimum optical design provides high illumination efficiency(>95lm/w), at the same time minimum illumination decay (<3% within 1yrs), accomplishing energy-saving and carbon-reducing effectively. The ultra robust die-casting modular is anti-corrosion, waterproof and dust-proof, well operated in high temperature,moist environment and other severe environment like that, and won't be corroded, so as to help stable and safety work, also lower the maintenance cost.Free modular serialization and full power range(60W-1000W) make it the most popular lights on outdoor lighting, single unit damage does not affect other unit current.
Application:
High Mast Lighting for Harbor Container Terminal and offshore oil rig
Road Lighting applications(Highway, Traffic Road and Pavement etc.)
Industrial Lighting (Golf Course ,Tennis Court & Stadium etc)
Urban Landscape /Landmark /Bridge /Architecture /Garden Lighting
High Power CREE LED Flood Light's Feature:
The Reliable High Power CREE LED Outdoor Flood Light for severe environment from Wuhan Sunshine BRT New Energy Co.,ltd is creatively designed as free modular serialization for outdoor lighting. The Reliable High Power CREE LED Outdoor Flood Light is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate bright light with LEDs to perfectly replacing the traditional HPS fixtures.
High Power CREE LED Flood Light's Applicant: lighting for construction plant , square, pot ,airport, exhibition halls, parking lots, supermarkets and specially in professional spot such as huge gymnasiums and industrial lighting project.
Outdoor LED HIGH MAST (530W)
POWER CONSUMPTION: 530W
LUMINOUS FLUX: 45000LM
INPUT VOLTAGE: 100-240VAC, 50/60Hz
CCT: 5000-6000K
OPERATING TEMPERATURE: -40~ + 50° C
CRI: ≥ 70
PF: ≥ 0.95
IP RATING: IP66
BEAM ANGLE: 70° X60°
LIGHT SOURCE: HIGH POWER LED
SERVICE LIFE: 35000 HOURS
REPLACING 1000W-3000W HPS
Primary Competitive Advantages
*Unique whole structure cooling technology
*Patent shape design, automatic clean function
*Adopts high efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use Cree LED and Meanwell power supply
*Uniformly distributed light and color, very even light distribution and high uniformity, no glare to eyes
*High waterproof , anti-dust and anti-vibration level
*Excellent thermal control
*Reliable qualities,use Cree LED and MEANWELL power supply,Compliant with CE standard
*-50-60°C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Energy-saving, Substantial energy-saving more than 60% compared with HPS lamp
*Environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan,Offer two to five years warranty
*High-power factor to minimize the harmonic distortion: PF: more than 95%
*Patent structure design, easy installation and maintenance
*Low maintenance costs
Advantages
1. The lowest total cost solution for good quality and reliable high power LED outdoor lights.
2. Industry-leading thermal management, positive cooling technology with Fan.
3. Operating temperature range: from below 40 Celsius degree to 50 Celsius degree.
4. The LED modular contain no any mercury or lead, no UV rays, IP65 waterproof.
5. Directional light means no light pollution, dark sky compliance.
6. Higher luminous compared to similar models of others.
7. Lighter and thinner compared to similar models, lower the wind load even 35 meters high
8. Reduce energy costs up to 90% compared to traditional lamps
9. Be able to operate in high temperature,moist environment and other severe environment like that, and won't be corroded
10. 3-5 years warranty and 3,5000 hrs lifetime, reduce maintenance costs up to 90%, almost free of maintenance
The dos and don'ts:
1) Read the Instruction carefully before using the product.
2) Before installation, make sure the luminaire and all accessory are perfect, no damage.
3) Before installation, must switch off the power grid, live line work is strictly prohibited.
4) Handle with care & Make sure Wiring is correct.
5) To assure LED Module lifespan, please do not change the power supply by yourself.
6) To assure safety of power supply and better effect of lighting protection, earth wire of Power supply and Power grid are well connected. In case of no power grid earth wire, the power supply earth wire should be connected with the lamp post.
7) This is maintenance free product, in case of maintenance is need, please co ntact us.
8) After instal lation, please confirm the luminaire was fixed firmly to the lamp post.
Common faulty and solution
If the luminaire doesn't work, please check whether the power supply is connected and the switch is turned on.
If the luminaire always turns on and off, please check whether the power supply is not connected well or loose.
Notice: if the solutions above still don't work, please contact the expert on luminaire to repair it.
If any question, please consult the engieer holding the qualified certificate.
PICTURE |
|
|
|
|
|
| POWER | 60W | 130W | 240W | 400W | 520W |
| LUMINOUS FLUX | 4800LM | 12350LM | 24700LM | 38000LM | 50000LM |
INPUT
VOLTAGE | 100-277V, 50/60Hz | 100-277V, 50/60Hz | 100-277V, 50/60Hz | 100-277V, 50/60Hz | 100-277V, 50/60Hz |
| CCT | 5000-6000K | 5000-6000K | 5000-6000K | 5000-6000K | 5000-6000K |
| BEAM ANGLE | 60°/100° | 60°/100° | 60°/100° | 60°/100° | 60°/100° |
| LIGHT SOURCE | LG LED | CREE/LG LED | CREE/LG LED | CREE/LG LED | CREE/LG LED |
| CRI | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 |
| PF | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| WORKING TEMP. | -40° C~+50°C | -40° C~+50°C | -40° C~+50°C | -40° C~+50°C | -40° C~+50°C |
| LIFESPAN | 3-5 Years | 3-5 Years | 3-5 Years | 3-5 Years | 3-5 Years |
| NET. WEIGHT | 3.1kg | 3.1kg | 7.2KG | 10.9KG | 14.7KG |
| INSTALL HEIGHT | 6-10m | 6-10m | 10-30m | 20-40m | 20-40m |
| REPLACING TRADITIONAL | 200-400W HPS
| 200-400W HPS
| 600-800W HPS
| 1000-1500WHPS
| 2000-3500W HPS
|
Diagram | 388*140*203mm | 388*140*203mm | 388*290*203mm
| 388*440*203mm | 388*580*203mm |
| Light Distribution Curve |
|
|
|
|
|
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
