Applican

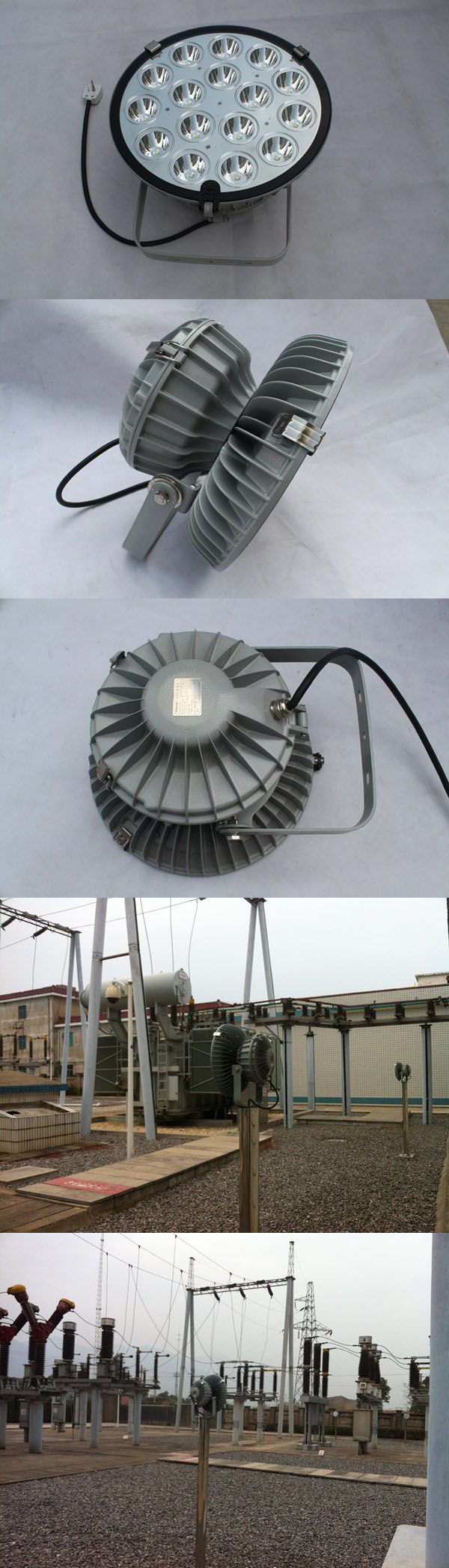

This product is ideal to use as floodlighting in factory, construction site,engineering machinery and other indoor and outdoor site
Characteristic of profermances
1)It efficiently utilize the light to 95%.Glare free, have a good performance of illuminance uniformity. Operator can choose the beam angle according to the application.

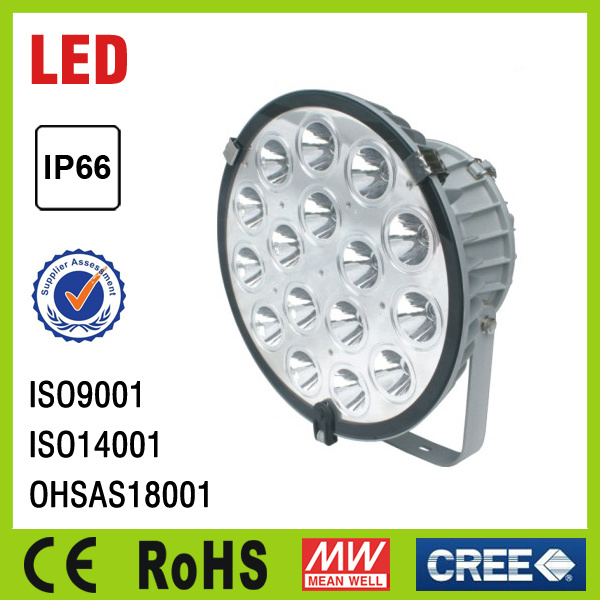

2)It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp
3)The light source is separated from the electrical appliance. This split style with the high efficiency radiator have solved the heating-up problem so that ensure the 100,000 hours LED lifespan.
4)Equipped with world top ranking brand, Taiwan Meanwell electrical appliance with power factor 0.98, make the lamp's performance more stable and efficient
5)The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
6)The shell adopts high-tech surface spraying technology, abrasion resistance corruption, waterproof, dustproof, suitable to be used at all kinds of environments
7)Easy maintenance.
8)Floodlight beam angle is available according to customers' requirement
Order reference
| Input voltage | AC90-305V/DC127-431V |
| Output voltage | DC54V |
| Frequency | 50Hz/60Hz |
| Anti-corrosion grade | WF2 |
| Insulation Grade | I |
| Spacing height ratio | 1.8 |
| Screw thread | G3/4″ |
| Cable diameter | Φ10mm-Φ12mm |
| Size | Φ380×270mm |
| Net weight | 8kg |
| Model No. | Light source | Light power(W)
| Light output(lm)
| Average service life(h)
| Equivalent to |
| Metal Halide Lamp | Electroless Lamp | High Pressure Mercury Lamp |
| ZY8302-L60 | LED | 60 | 8194 | 100,000 | 150W | 135W | 175W |
| ZY8302-L80 | LED | 80 | 10016 | 100,000 | 175~250W | 165W | 250W |
| ZY8302-L100 | LED | 100 | 11568 | 100,000 | 250W | 200W | 250~400W |
| ZY8302-L120 | LED | 120 | 13310 | 100,000 | 250~400W | 250W | 400W |
Q:What certification do you have for your LED Explosion proof lights?
A:We have ATEX, CE,EMC,LVD,RoHS, China Explosion proof approval for all of our LED explosion proof lights.
Q:What places do your explosion proof lights applicable to?
A:It is ideal to be used as floodlight or spotlight at the oilfield,metallurgy,refinery,gas station,oil rig,petroleum,petrochemistry
and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.
Q:Can you introduce briefly for your LED Explosion proof lights? Are they unique, different from other suppliers'?
A: Tormin's LED explosion proof lights are designed and patented independently by Zhejiang Tormin electrical Co.,Ltd.
We ensure quality by using Bridgelux LED chip, aluminium housing and tempered glass. We ensure safety by strict testing and inspection.
Q:Is it changed the colour of housing as require?
A:It can be made into other colour like Gray.

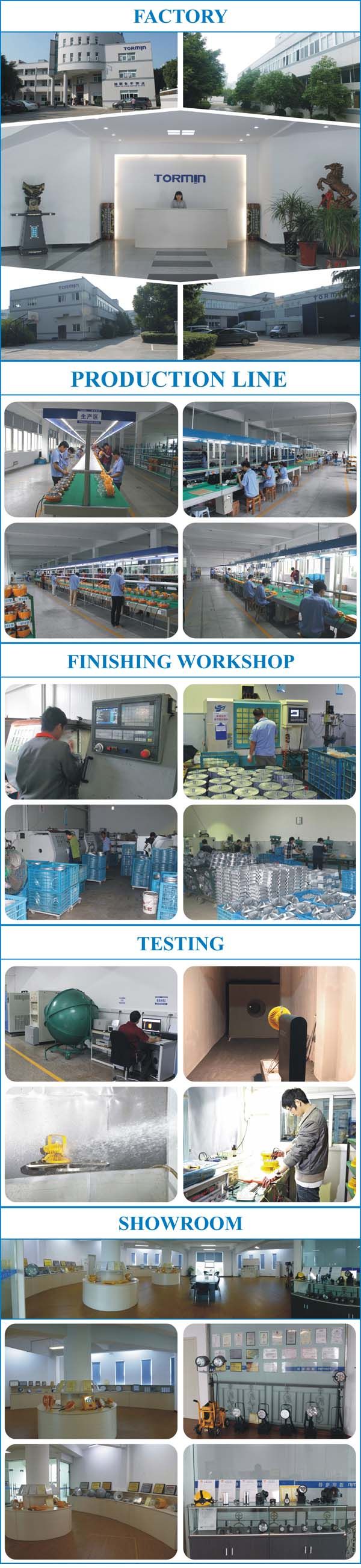

Zhejiang Tormin Electrical Co., Ltd. is a high-tech civilian enterprise that specializes in r & d, manufacture and sales of industrial illumination lamps. Its products are widely used in the fields of electric power, coal mine, petrol, chemical, metallurgy, railway, large airport, fire-fighting, military, flood prevention, rescue work and disaster relief.
In light of the world wide advocating of low carbon economy, zhejiang tormin electrical Co., Ltd. Will carry on the mission of low-carbon illumination, energy conservation & emission reduction, and strive to create a first class brand for industrial lighting in China with the operation guidelines of energy conservation, environmental protection, pragmaticness and innovation. We are always committed to the r & d of a new generation of low energy consumption illumination products and the supply of green products for customers. In an era of low carbon illumination, the company deems the energy-favored illumination as a major project, makes use of the latest technology through independent r & d and technical exchanges and cooperations with counterparts from both at home and abroad, and develops a series of high efficiency products with the combination of efficient illumination sources and electric appliances, whose energy saving effects have reached the internationally advanced level, thus making due contributions for the energy conservation and emission reduction.
The company boasts powerful r & d and manufacturing capabilities, being one of the largest industrial illumination r & d and production bases in China. It is awarded as the technology-oriented small and medium-sized enterprise in zhejiang province, patent demonstration enterprise in wenzhou city, and key patent protection enterprise, etc. At the same time, tongming has obtained the certification of ISO9001: 2008 international quality management system, the national coal mine safety, the state luminaire quality supervision and inspection center, the state fire-fighting equipments quality supervision and inspection center, CE&RoHS, ATEX, IECex and other authorities.
The company enjoys very rich experiences in the planning and implementation of energy conservation projects in various plants, and has developed a number of energy-friendly illumination solutions geared to various industries in China. It provides a whole set of technical services for enterprises in the areas of electric power, metallurgy, petrochemical and coal mine, from the support of energy conservation plans, product selection, project installation, to after-sales services.
With the determination of contributing to the nation and shaping a centennial brand, and upholding the tenet of win-win among customers, employees and the company, zhejiang tongming electric appliance Co., Ltd is endeavoring to create an excellent platform for more and more elites who are to join tongming, and commonly establish a first class illumination enterprise.
