(1). SMD5050 Module With Lens
(2). High Brightness 100-105LM/PC, 1.2W/PC.
(3). Material: ABS, NOT PC.
(4). light source: Epistar SMD 5630 LED. High Power, High Brightness
(5). Warranty: 5 years
(6). Certificate: UL, TUV, CE, RoHS

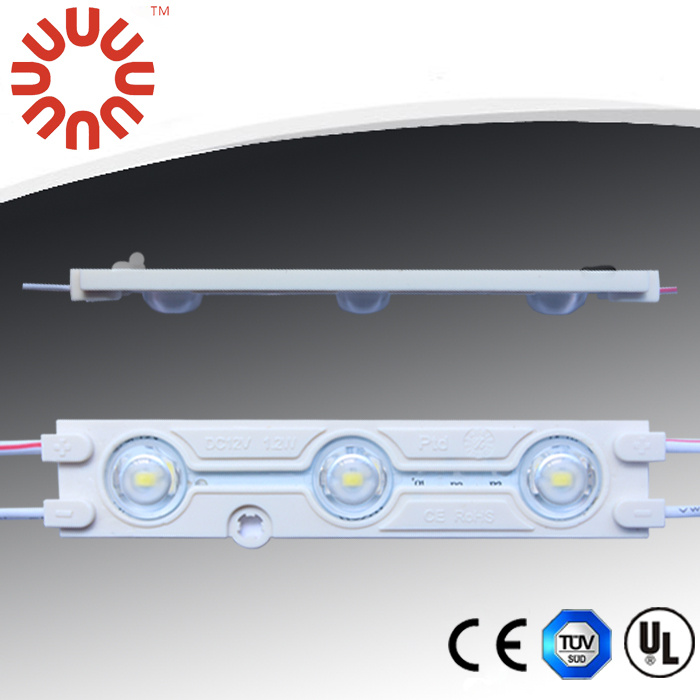

5050 LED Mdoule Light With Lens
SMD LED Module/ LED Module/ LED Sign Module/ LED Module Light/ High Power LED/ LED Light/ LED Lighting/ LED Module Lamp/ Modulos LED
Features: (1). Waterproof: IP67
(2). Size: 78*15mm.
(3).98% transmittance lens,
(4). Injection molding process
(5). Constant Current Technology (CCT)
(6). The exposed Aluminum plate for heat dissipation
(7). Energy saving, Long life span
| No. | Item | Parameter |
| 1 | Brightness | 100_105LM Per Module |
| 2 | Power(Single module) | 1.2W(Max), SMD5630 LED |
| 3 | LED Number(Single module) | 3 PCS |
| 4 | Max number(PCS) | 20(MAX) |
| 5 | IP Level | IP68 |
| 6 | SMD-LED Type | SMD5050 |
| 7 | Drive mode | Constant Current Drive |
| 8 | Working temperature | -20~+40ºC |
| 9 | Stock temperature | -40~+60ºC |
| 10 | Life-span | 5year/50000H |
| 11 | Weight(single module) | 12±0.5g |
