Description:

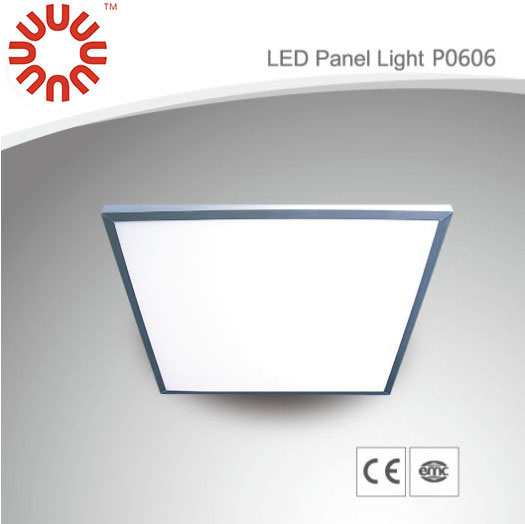

We focus on LED lighting solutions to the ceiling lighting system. Lumin LED panel features 9mm thick ulfra-thin design. 0-10V LED panel light, Dali dimmable LED panel light, traic dimmable LED panel light, RGB LED panel, DIY LED panel, and CCT adjustable LED panel are all available in Lumin. And the price of LED panel light is also competitive.
Unique Features:
(1) Energy saving up to 70%
(2) High brightness: > 80 LM /W
(3) Nice lighting distribution: > 90 %
(4) High color rendering index: Ra> 80
(5) Ultra-thin design: Only 9mm
(6) Stable LEDs light source design solution: The best 3014 LEDs are used. It can give off high CRI, high brightness, and low optical decay.
(7) Excellent circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
(8) New high efficiency constant current driver: Wide range of input voltage: AC85-265V.
(9) Instant starting time: < 1.2 s, and no noise as it starts.
(10) Environment friendly: No mecury, no harmness to human healthy and the earth.
Detailed Specification:
Model NO.: PL-C
Power consumption: 36W
Dimension: 595x595x 9 MM
Input voltage: AC 90-265 V
Output voltage: DC 40-42 V
Color temperature: 3000 K, 4000 K, 5000 K, 6000K
Constant current: 900 mA
Lumen output: 3024 LM
CRI: Ra>80
Power factor: PF>0.9
Anti-electric shock rate: ClassII
Temperature rising: <20
Protection class: IP44
Material: Aluminum alloy, PMMA, PC
| Material:AL+flosted PC cover | Size:1200*300*9mm |
| Transmittance:≥85% |
| Rated Power:36W | Beam Angle:180° |
| Actrual Power:36W±1.0W | Luminous Flux:1450~1550Lm |
| Input Voltage:AC85V~265V | Light efficiency:80lm/W |
| Frequency:50~60Hz | CRI:≥83 |
| Power Factor:0.95~0.98 | CCT:2800~3500K 4000~4500K 5500~6500K |
| Ambient Temperature:-20ºC~45ºC | Warranty: 5 years
CE ROHS Approval |
| Surface Temperature:42ºC~45ºC |
Trade Terms:
1. Payment: Samples small orders 100% payment advance by Payal, Westem Union.
2. Mass order: T/T 30% advance 70% before shipping
3. Delivery time: Samples/small orders 3-5days Mass order: 7-12days.
4.Discount can provided for mass orders.
Shipping:
1. FedEx/DHL/UPS/TNT for samples/small orders, Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery port: Shenzhen
