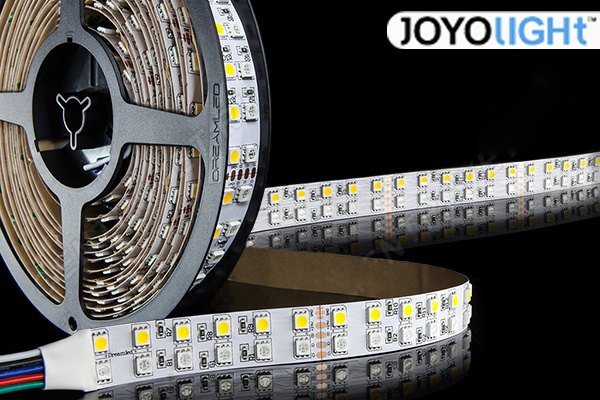

5050LED strip, led strips, led strip light, led strip lights, led light strips, led flex strip, led flexible strip, led strip-china
Quick Details
Light Source: LED
Item Type: Light Strips
Color Temperature(CCT): Blue
Emitting Color: RGB
Place of Origin: Guangdong China (Mainland)
Brand Name: Colors
Model Number: HC-5050B72R-W24
Light style: 5050
Input voltage: DC24V
Waterproof: IP33-IP68
LED Qty: 144leds/m
Power: 34.6W/M
Working temperature: -40-60
Bending angle: 120 degree
Lumen: 18-20LM@20MA
Factory direct sale: Fast delivery
Service: OEM/ODM
Color: WW/W/RGB/R/G/B/Y
Warranty: 2 years
Life span: 50000h
Certification: BV&CE&ROHS&REACH
Packaging & Delivery
Packaging Detail: 1.5meters/reel, 1 reel/Anti-static bag, carton packing
Delivery Detail5-7days after payment, according to the quantity
Specifications
1. Input voltage: 24V
2. SMD5050, 30leds/m 60leds/m 72leds/m 96leds/m 120leds/m 144leds/m
4. Width: 10mmPCB 15mmPCB 19mmPCB
5. View angle: 120degree
6. Light decay: Less than 5% after 1000 hours constant work
7. IP range: IP33-68
7. Life span: 50, 000 -80000H
8. Packing: 5m/roll
9. Available Color: White, Warm White, Red, Green, Blue, Yellow, RGB
Product features:
3 LED cuttable with the mark
Operating temperature: -40 to +50 degree Celsius
Match the RGB controller and power supplier system
Low power consumption
Lower heating during operation
Continuous length with the quickly connector
Reel peaking and strong adhesive back
Series3: 3528 Flexible LED Strip-120LED/M |
ITEM NO. | Description |
Color | Luminance | Volt | Watt | Size |
HC-3528R60R-W24 | RED | 160-280mcd | DC24V | 9.6W | 5000*8MM |
HC-3528Y60R-W24 | YELLOW | 160-310mcd |
HC-3528B60R-W24 | BLUE | 250-300mcd |
HC-3528G60R-W24 | GREEN | 1000-1600mcd |
HC-3528W60R-W24 | WHITE | 6-7LM |
HC-3528WW60R-W24 | WARM WHITE |
Huacai (Yangzhou) Opto-electronics Co., Ltd, with rich experience of over four years in lighting R&D and occupying a modernized plant area of almost five thousand square meters, is a professional manufacturer based on LED lighting source and specializing in LED lighting application. Our company incorporates four brand in Beijing, Shanghai, Guangzhou and Jiangsu around Mainland China. Located quite near from Bao'an Airport, our company enjoys the superior geographical and convenient transportation. There is six modern atomized production line LED SMD encapsulation line, six high-speed SMD encapsulate machine, two eight bins Reflow Machine, fully atomized Epoxy machine, Generator, over eighty large equipments, seventy percent of which are imported form Japan. The chips we used are mainly imported form Taiwan, International brands like CREE, OSRAM, NICHIA, EDISON are also available for high-end users. Following the operation philosophy that customer's need, Colors's pursuit'', advanced testing measurement and impeccable managing system are taken into application, so we can make sure of the quality of our products, all of which are exported globally. Currently our annual production value can be reached 30 million USD, The main products are: SMD LED Flexible Strip Light, SMD LED Rigid Light Bar, LED T5&T8 Tubes, and they have been awarded the CE & RoHS certification.
